Description
Technical data at a glance

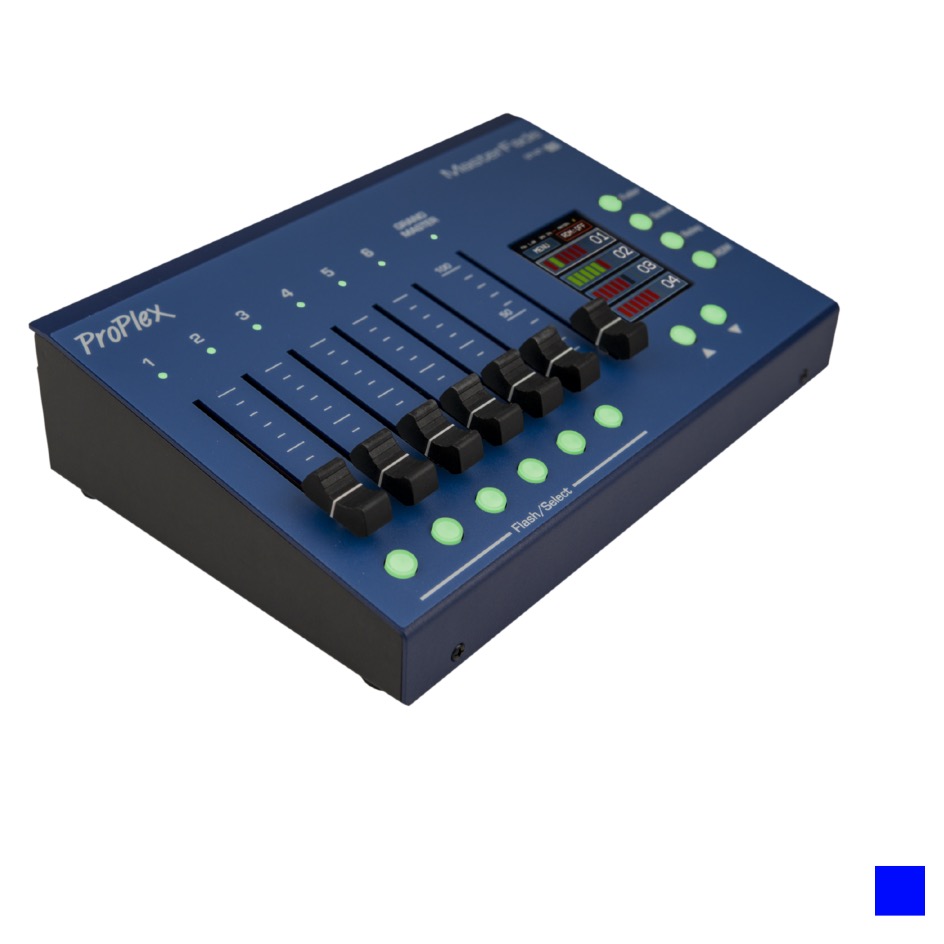

Lighting Control ConsoleUnique lighting playback and capture console with full RDM management capability
In: powerCON 20A Chassis (blue) | 100 – 240VAC 50/60Hz | 10W | DATA IN: 01 XLR5 Chassis Male | DMX512, RDM | DATA OUT: 01 XLR5 Chassis Female | Parameter: 512
Table Enclosure
Dimensions (mm) | T: 17 | B: 245 | H: 52 | 1,4kg | IP20
Downloads
User Manual
Firmware
Specification
Manufacturers Page
Features
- Patch any six channels, or record scenes to the faders.
- Capture static or dynamic scenes from an external console.
- Setup and monitor RDM-capable devices.
Physically
– Table Enclosure
– IP protection IP20
– Color/Finish blue
– Dimensions | W: 245mm | H: 52mm | D: 17mm
– Weight 1,4 kg
Thermally
– Ambient temperature -20°C – 40°C
– Convection cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 10W
Power connector input
powerCON 20A Chassis (blue)
Control
– Protocol DMX512, RDM
Inout
01 XLR5 Chassis Male
Output
01 XLR5 Chassis Female
Amount of Universes 1 (512 DMX-Channels)
