Description
Technical data at a glance

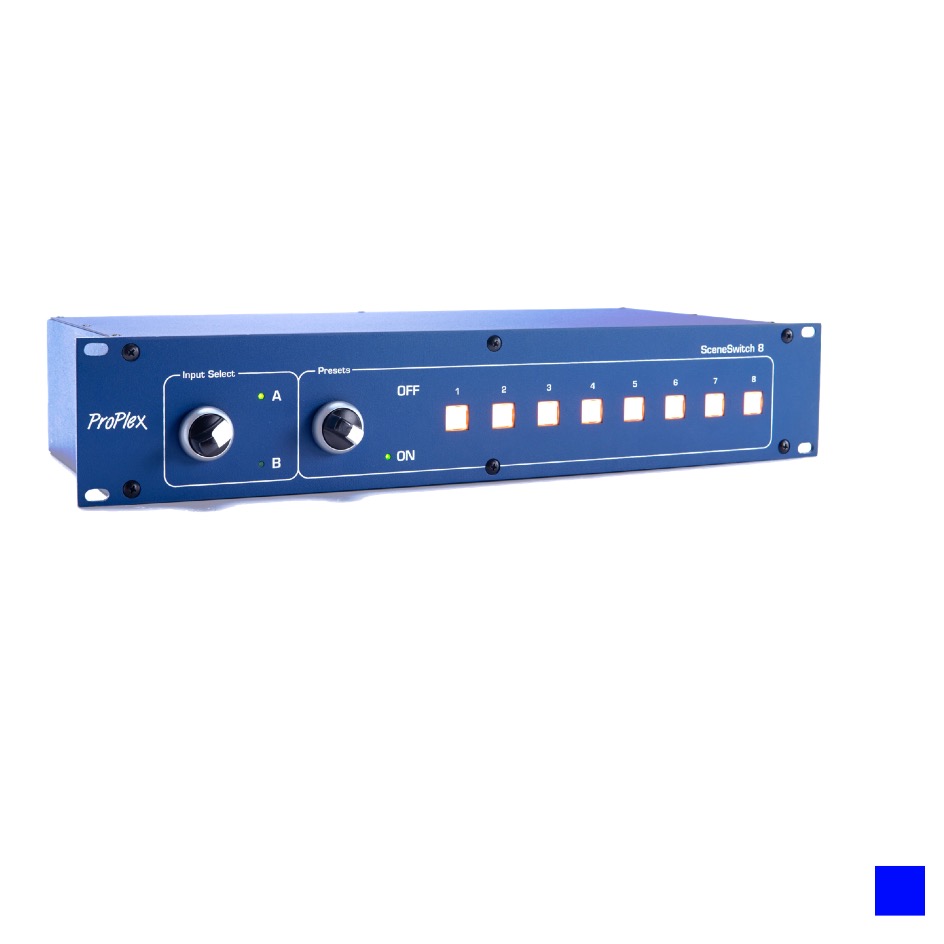

DMX SwitcherThe ProPlex SceneSwitch 8 is an 8-channel DMX A/B switcher with built-in 8-scene playback.
In: powerCON 20A Chassis (blue)
Out: powerCON 20A Chassis out (grey) | 100 – 240VAC 50/60Hz | DATA IN: 16 (08xA & 08xB) XLR5 Chassis Male | DMX | DATA OUT: 08 XLR5 Chassis Female | DMX | Parameter: 4048
Rack-mount enclosure 19 inch | 2U
Dimensions (mm) | T: 205 | B: 483 | H: 90 | 3,1kg
Downloads
User Manual
Specification
Manufacturers Page
Detailed description
- Perform rapid switching between two DMX sources, e.g. two lighting consoles or between the main console and a backup.
- Scene playback captures data on all eight DMX lines and, if a console fails, allows instant recall of eight pre-recorded scenes.
- DMX source and backup functions are selected with a rugged toggle switch to avoid accidental switching.
Physically
– Rack-mount enclosure 19 inch | 2U
– Color/Finish blue
– Dimensions | W: 483mm | H: 90mm | D: 205mm
– Weight 3,1 kg
Thermally
– Ambient temperature -20°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
Power connector input
powerCON 20A Chassis (blue)
Power connector output
powerCON 20A Chassis out (grey)
Control
– Protocol DMX
– Protocol Output DMX
Inout
16 (08xA & 08xB) XLR5 Chassis Male
Output
08 XLR5 Chassis Female
Amount of Universes 8 (4048 DMX-Channels)
