Features

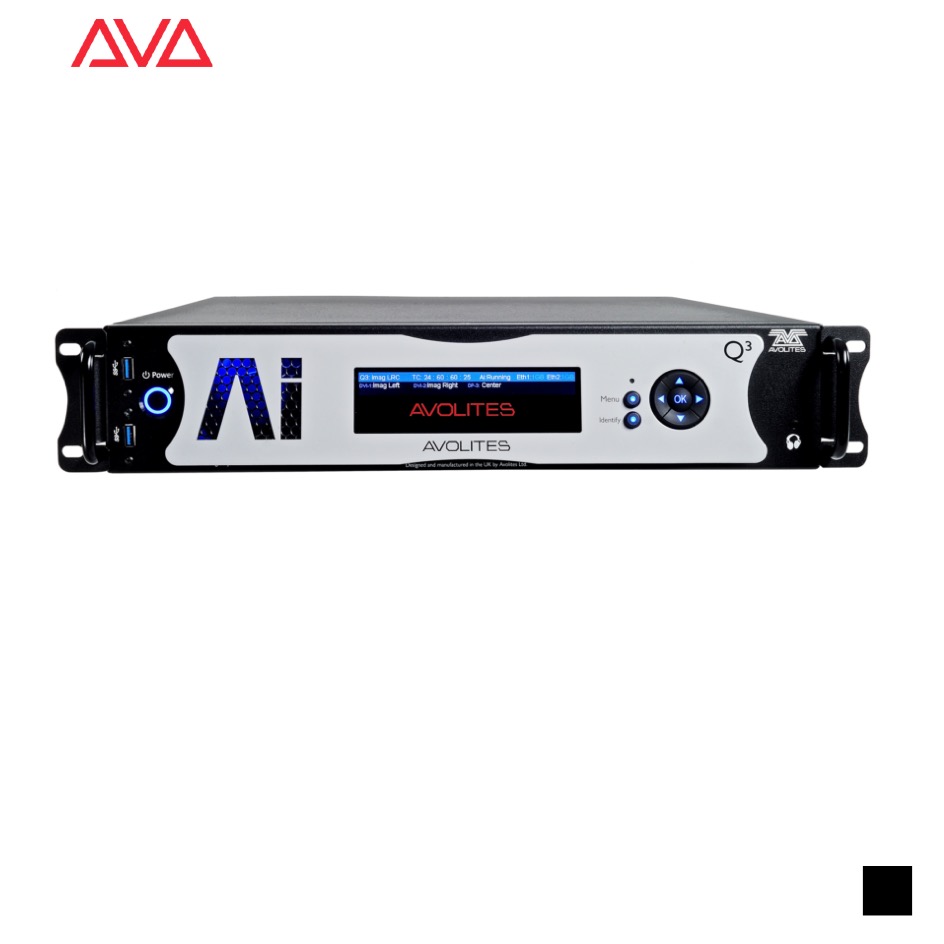

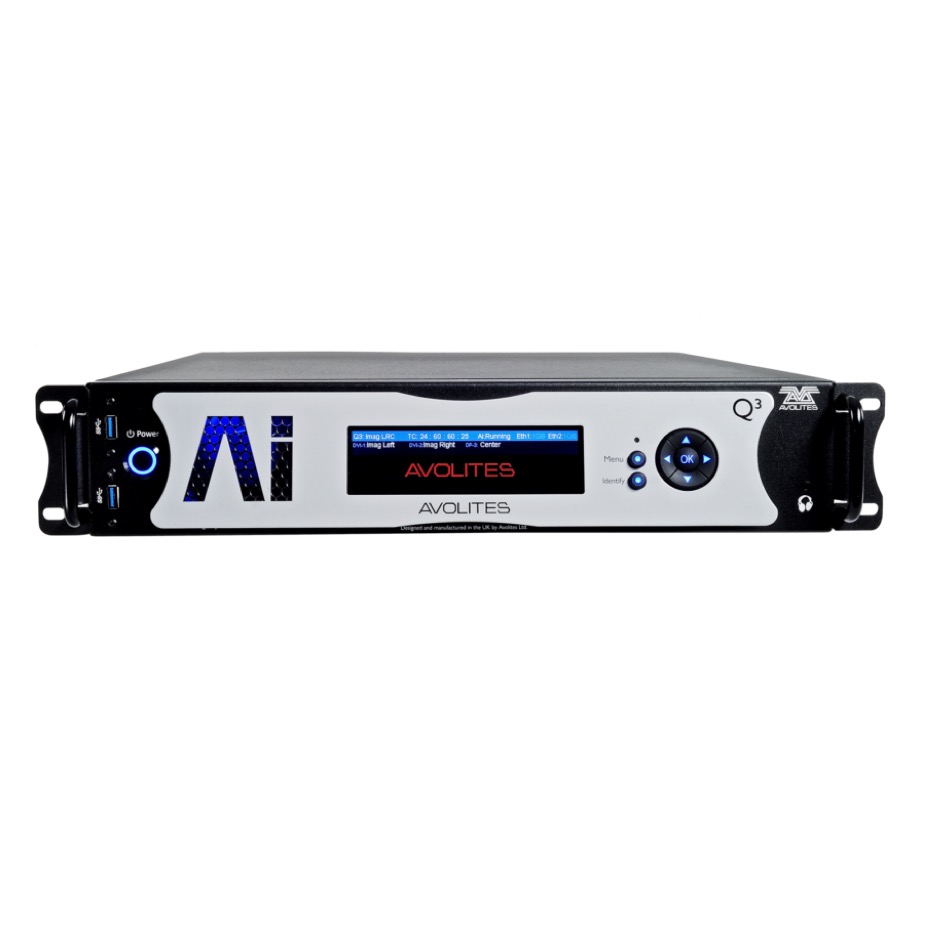

- The Q3pro is designed for demanding performances where portability is key.
- Minimum 2 layers of video simultaneously to every output
- 1 x HDMI dedicated GUI output @ up to 1920×1200/60
- 2 x HDMI production outputs @ up to 3840×2160/60
- 1 x HDMI production output @ up to 1920×1200/60
- Stereo balanced XLR audio output with ground lift
- XLR SMPTE input and loop out
- 1TB high-bandwidth media drive – 3500MB/s
- Video Sync BNC Genlock (Option)
- MIDI In 1x 5-pin din
- DMX ArtNet and sACN
- 2 x Gigabit LAN on ethercon
Ai-Software Features
- Node-based programming for flexibility with Salvation
- Send or receive video over IP with NDI® from NewTek
- 3D projection mapping
- Supports Notch (license required)
- Easy to set up projector blending with AutoBlend
- AiM media transcoder
- Synergy with Avolites Titan
Physically
– Housing 19 inch rack case 2U
– Color/Finish black

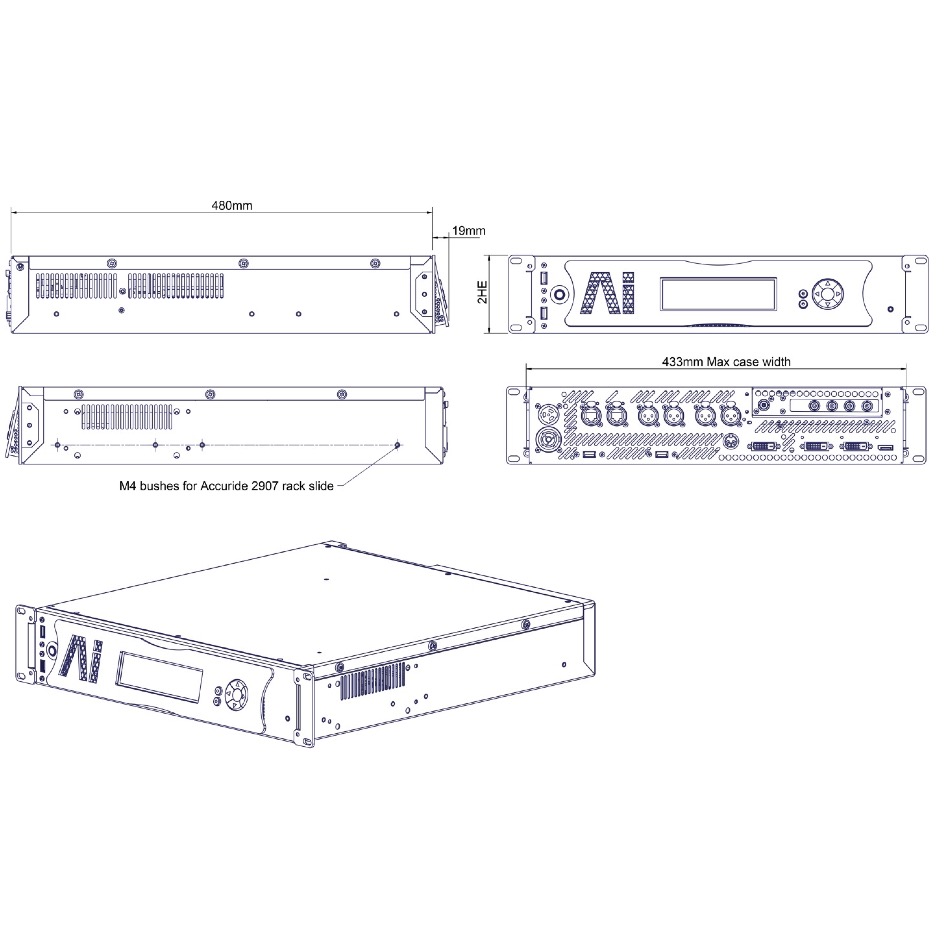

– Dimensions | W: 490mm | H: 88mm | D: 520mm
– Weight 11 kg
Thermally
– Ambient temperature 0°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption max. 800W
Power connector input
powerCON TRUE1 TOP 16A
Power connector output
powerCON TRUE1 TOP 16A
Control
– Protocol MIDI, DMX
Inout
01 DIN5 MIDI IN
Network
– Protocol art-NET, CITP, Avolites Synergy, sACN
Input
02 NEUTRIK Ethercon 1GBE, Network 1&2
Display
02 HDMI production outputs @ up to 38400×2160/60
01 HDMI production Output @ up to 1920×1200/60Hz
01 HDMI dedicated GUI output @ up to 1920×1200/60
Storage
1TB high-bandwidth media drive – 3500MB/s
Input
01 XLR3 chassis female as SMPTE
Input Protocol
SMPTE
Output
02 XLR3 chassis female as audio input with ground lift
01 XLR3 chassis male as LTC loop
Output Protocol
Analogue Audio
