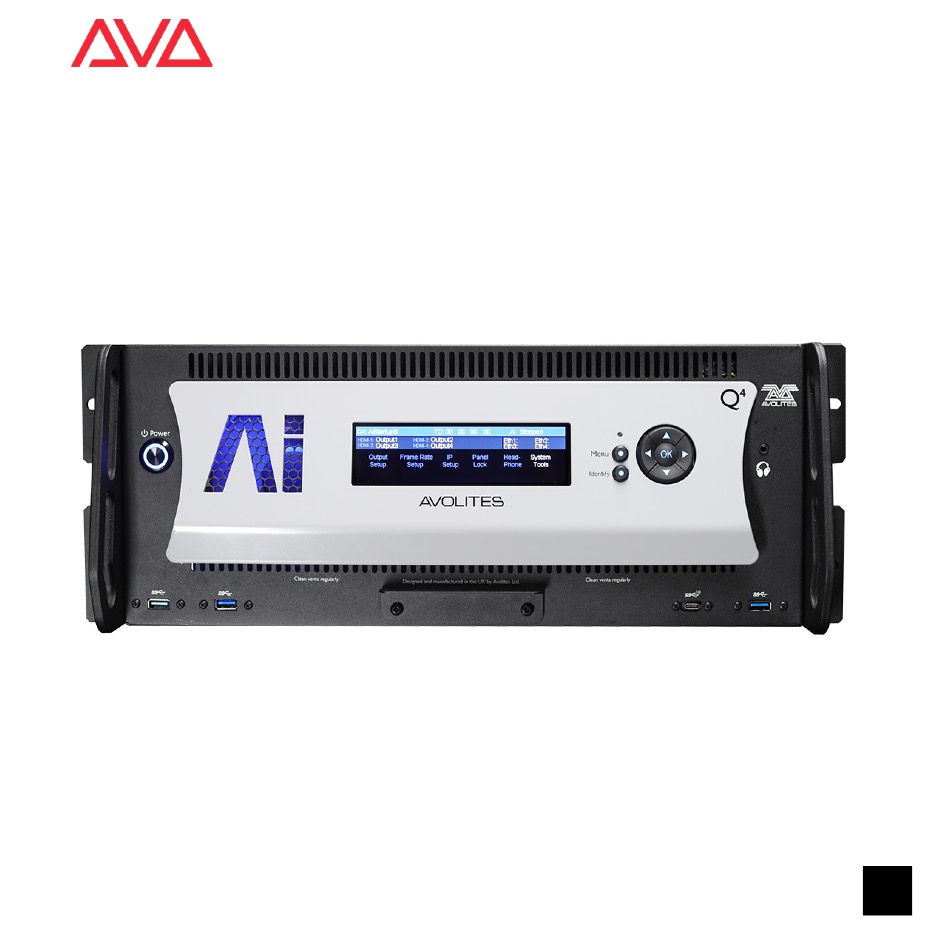

INTRODUCING THE Q-SERIES MEDIA SERVERS
Firmware
Specification
Manufacturers Page
Features
- Provides 8 Bays for input cards
- Very high-resolution media playback
- Large sized tours
- Large corporate events
- Large installations
- Hardware EDID (Extended Display Identification Data) on all outputs
- Front panel screen for configuring output
The Q4 gives power to deliver breath taking detail with Modular flex inputs, allowing freedom to adapt to project requirements and 4x4k outputs.
Ai-Software Features
- Node-based programming for flexibility with Salvation
- Send or receive video over IP with NDI® from NewTek
- 3D projection mapping
- Supports Notch (license required)
- Easy to set up projector blending with AutoBlend
- AiM media transcoder
- Synergy with Avolites Titan
Physically
– Housing 19 inch rack case 4U
– Color/Finish black
– Dimensions | W: 490mm | H: 177mm | D: 683mm
– Weight 23 kg
Thermally
– Ambient temperature 0°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption max. 800W
Power connector input
powerCON TRUE1 TOP 16A
Control
– Protocol MIDI, DMX
Inout
01 DIN5 MIDI IN
Network
– Protocol art-NET, CITP, Avolites Synergy, sACN
Input
02 NEUTRIK Ethercon 10GBE, Network 1&2
02 NEUTRIK Ethercon 1GBE, Network 3&4
Display
04 HDMI production outputs @ up to 3840×2160/60
01 HDMI dedicated GUI output @ up to 3840×2160/60
Storage
2TB NVME VROC accelerated media drive
04 USB 3.1 Port Frontpanel
04 USB 3.1 Port Backpanel
Input
01 XLR3 chassis female as LTC IN
01 XLR3 Chassis Female as analogue AUDIO IN
Input Protocol
Analogue Audio, LTC
Output
02 XLR3 chassis male asanalogue audio Output with ground lift
01 XLR3 chassis male as LTC loop
Output Protocol
Analogue Audio, LTC
