Accessories supplied with the unit
external PSU

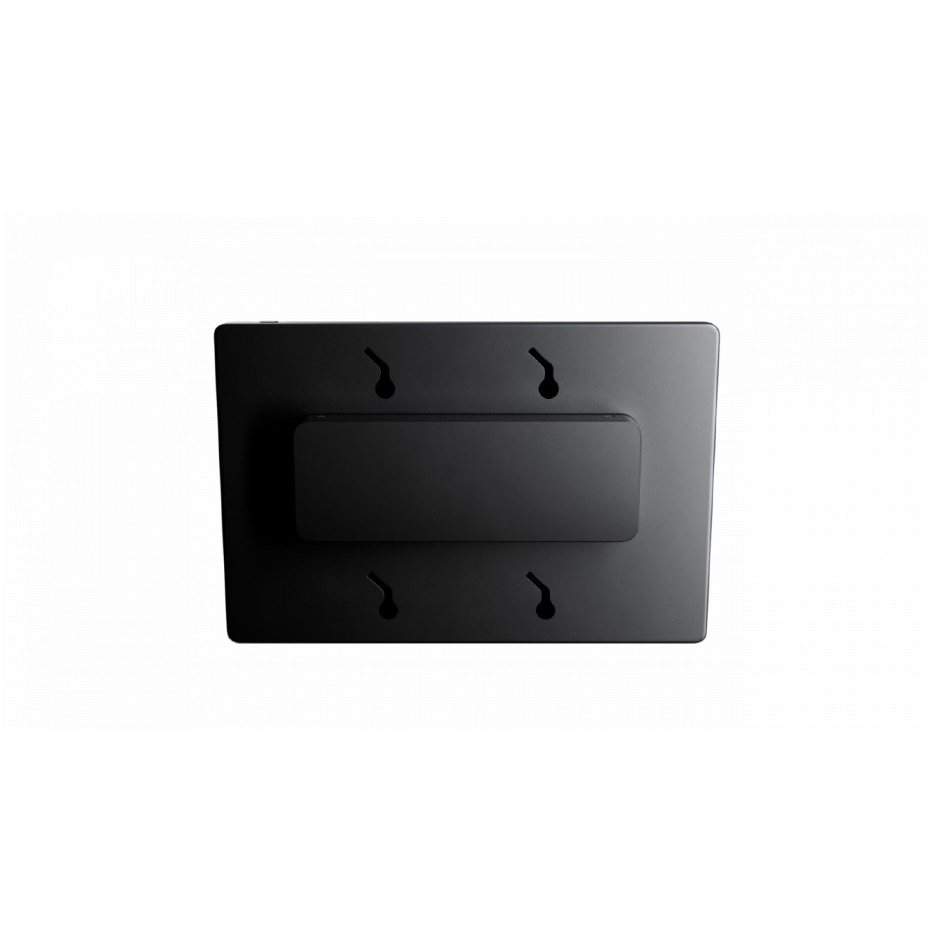

mounting Bracket for Panel/patress mounting (incl. 6x Screws)
2pin pluggable Screw Terminal Block (3.81mm pitch)
3pin pluggable Screw Terminal Block (3.81mm pitch) for future use
Detailed description

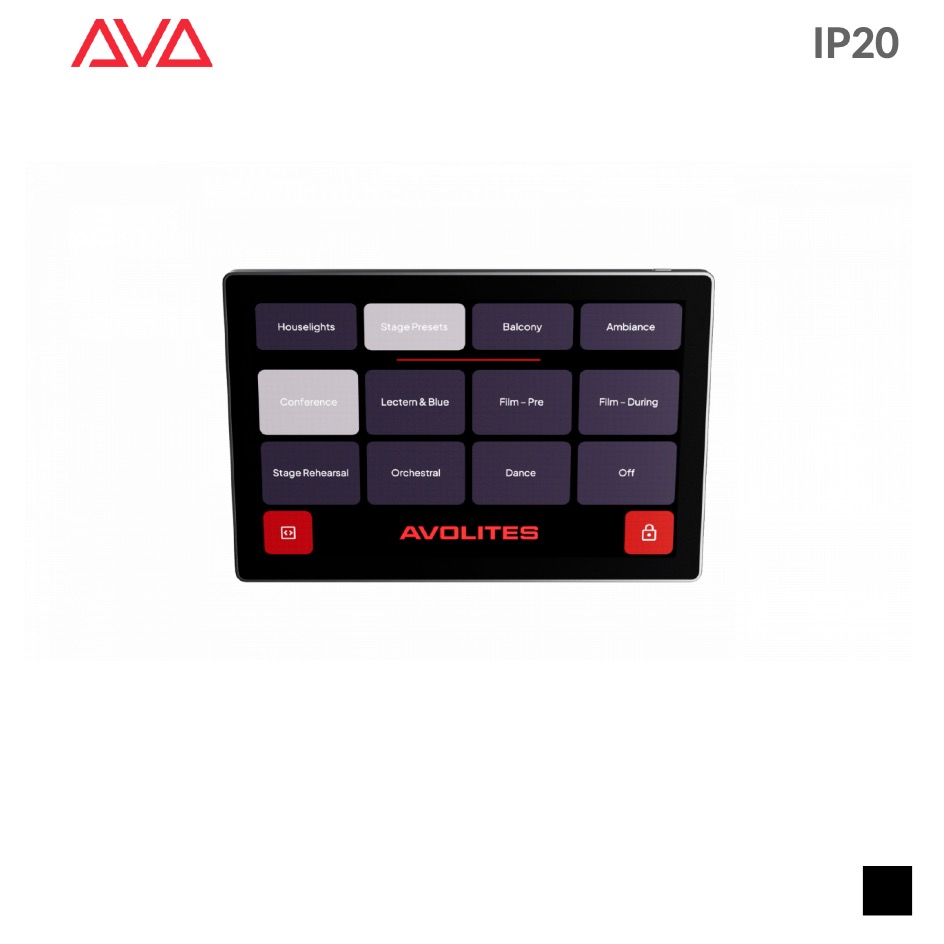

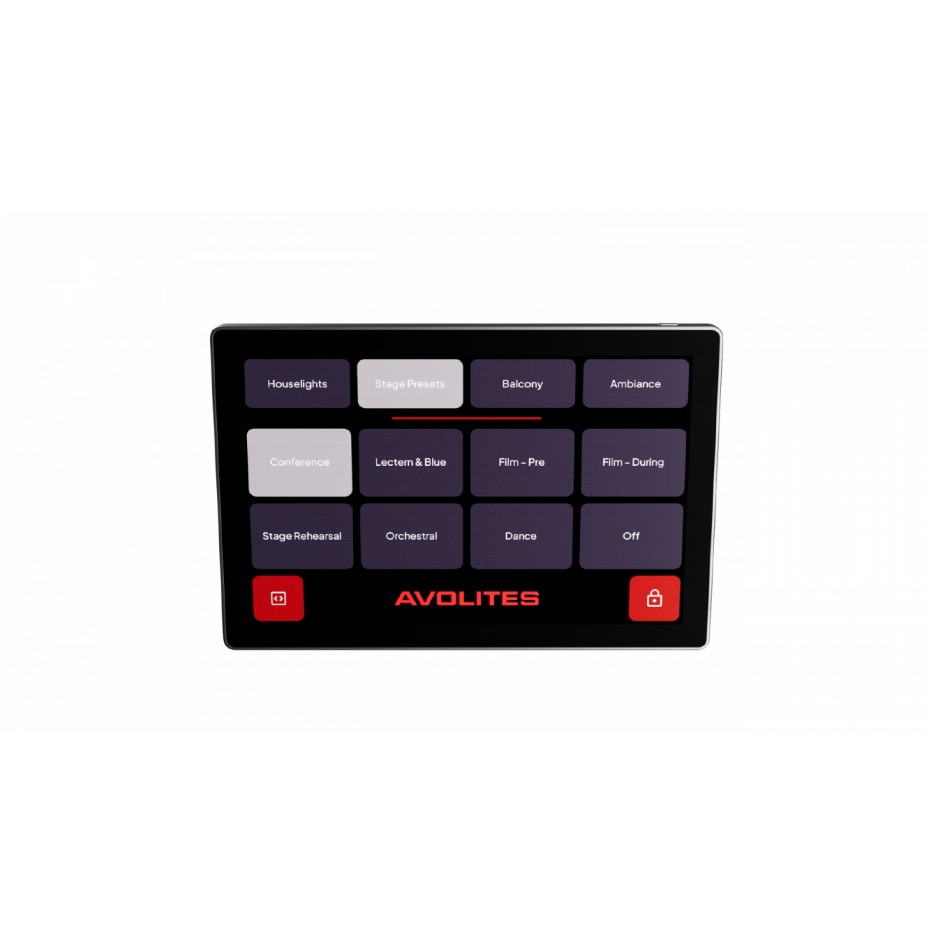

- D3 Touch is a pre-configured, installation touchscreen interface for Titan. It’s designed for venues and installations where operators need simple, reliable access to key functions – from show playback to house light presets. Fully integrated with Titan, it’s plug-and-play, responsive, and easy to use, even for non-technical staff.
Features
- 1x 10 Inch, WXGA capacitive touchscreen
- PoE powered
- Supports all Titan consoles (excluding T1)
TITAN Software Features
- 04 x TITAN Playback Groups (User Numbers 1001-1004). Mor can be added using Macros to change User Numbers.
- 08 x TITAN Playbacks within each Playback Group (more can be added using Macros to change contents of Playback groups).
- Lock Screen via TITAN
- Unlock Code via TITAN V19 numeric only
fits with
– all AVOLITES Titan Consoles (except T1)
Physically
– IP protection IP20
– Color/Finish black
– Dimensions | W: 246mm | H: 164mm | D: 27mm
– Weight 0,9 kg
Thermally
– Ambient temperature 0°C – 40°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage PoE 802.3af
– Power consumption 6W
Power connector input
RJ45 PoE
