User Interface (Hardware)
- – 20 playback faders
– 30 macro / executor buttons
– Local, Independent Paging Control
– USB Powered – no need for a separate PSU
– Dedicated workspace window in Titan software
fits with
– Avolites ARENA Console | white
– Avolites SAPPHIRE TOUCH Console | white
– Avolites QUARTZ Console | white
– Avolites TIGER TOUCH II Console | white
Physically
– IP protection IP20
– Color/Finish white

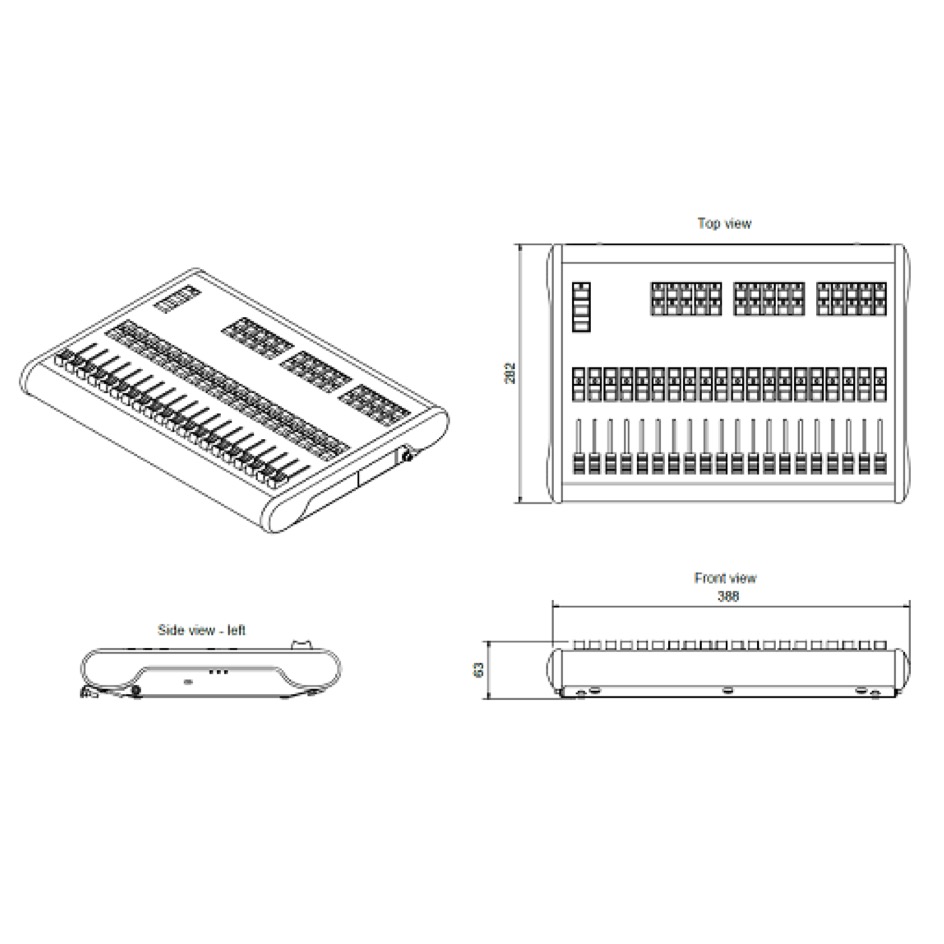

– Dimensions | L: 390mm | W: 280mm | H: 80mm
– Weight 4 kg
Power connector input
USB
Display
01 DVI-D for external Display
01 USB for optional Faderwing
Storage
02 USB Port Backpanel
Output
01 Klinkenbuchse 3.5mm TRS Headphones
Desklights
01 XLR3 Female for gooseneck lamp
