Accessories supplied with the unit
Rubber protective frame
Test leads
pocket
Wire temperature sensor
batteries

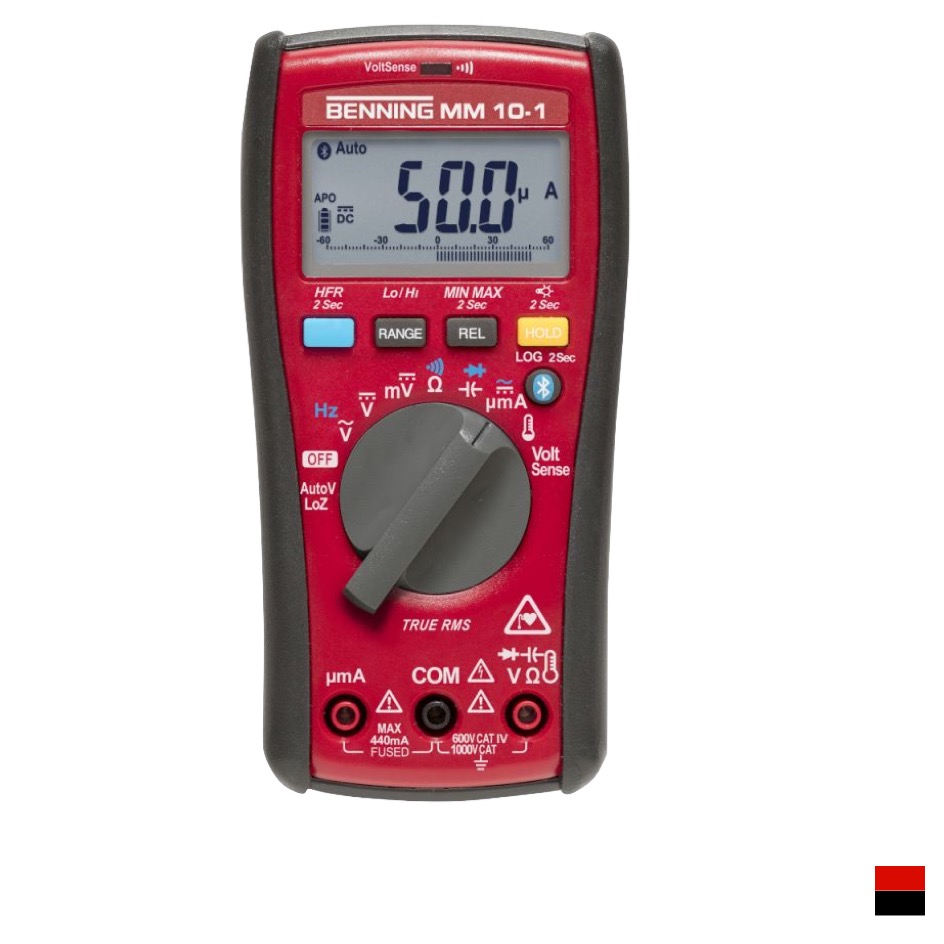

- Microampere measuring range for testing flame sensors and sacrificial anodes on heating systems/water storage tanks
- Precise due to TRUE RMS measurement method
- Data logger, memory function and Bluetooth® Low Energy 4.0 interface
- BENNING MM-CM Link app for downloading, saving and sharing measured values via smartphone/tablet
- AutoV function for automatic AC/DC voltage detection and low input impedance (LoZ) to suppress capacitive/inductive interspersed voltages
- Low-pass filter (HFR high-frequency suppression) for measurements on switched motor drives
- Voltage sensor for non-contact phase and cable break testing (red LED)
- Measured value (HOLD) and minimum/maximum value memory (MIN/MAX)
- Measurement category CAT IV 600 V, CAT III 1000 V
Features
- Display range: 6,000 (illuminated) with bar graph
Basic accuracy: 0.5 %
Measuring method: TRUE RMS
Measurement category: CAT III 1000 V, CAT IV 600 V
Filter function: HFR filter (800 kHz)
Voltage AC: 0.1 mV – 1000 V
Voltage DC: 0.1 mV – 1000 V
AC current: 0.1 µA – 400 mA
DC current: 0.1 µA – 400 mA
Resistance: 0.1 Ω – 40 MΩ
Continuity | Diode Yes | Yes
Frequency: 0.01 Hz – 100 kHz
Capacitance: 1 nF – 10 mF
Temperature: – 40 °C to + 400 °C
Voltage sensor: Yes
Interface: Bluetooth®
Software: App (IOS, Android)
Memory | Datalogger: HOLD, MAX/MIN, REL, SAVE
4,000 measured values (interval 1 s – 60 s)
Physically
– Color/Finish redblack
