Accessories supplied with the unit

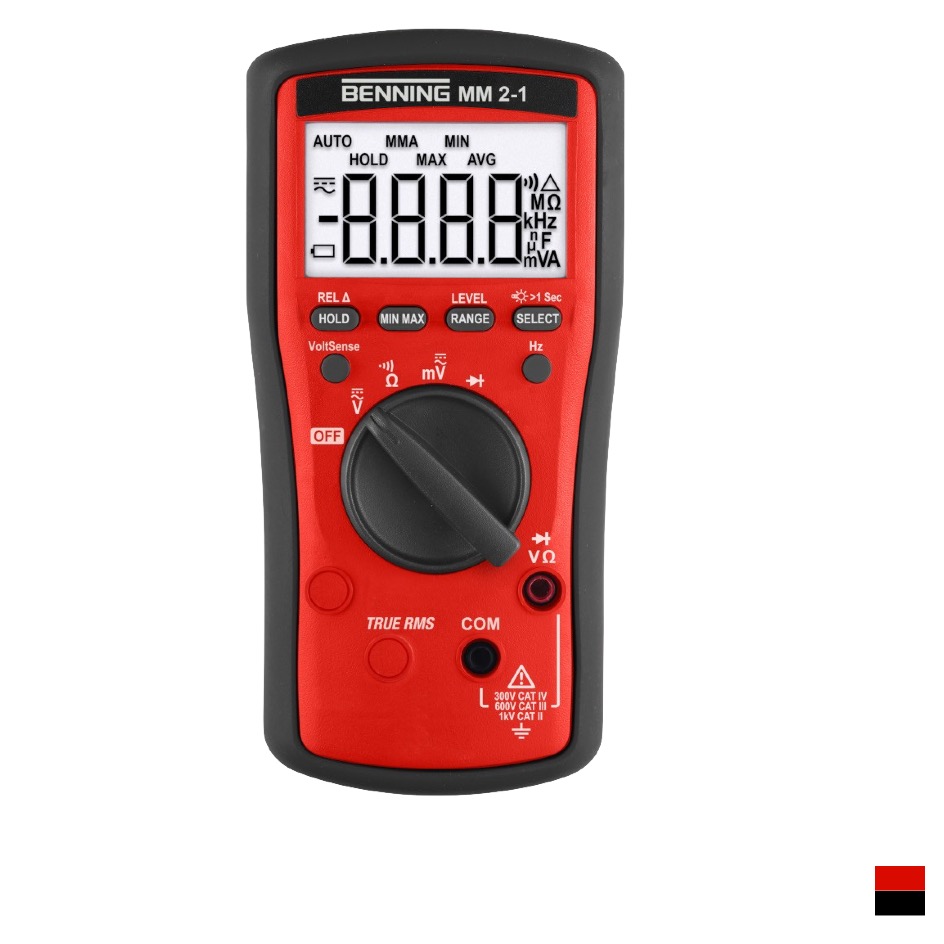

Digital multimeter with robust rubber protective frame, high-quality silicone test leads with gold-plated 2 mm and screw-on 4 mm measuring tip, protective case, batteries (2 x 1.5 V Micro AAA/ IEC LR03)
- TRUE RMS voltage measurement (1000 V)
- Resistance measurement (60 MΩ)
- Frequency measurement (50 kHz)
- Fast continuity test (< 15 ms) with visual and acoustic display
- Diode test
- VoltSensor function for non-contact and single-pole phase testing (2 sensitivity levels)
- Backlit digital display with 6,000 digit resolution
- Precise TRUE RMS true RMS measurement for measuring non-linear signals
- MIN / MAX / average value and relative value measurement (REL)
- Display HOLD for saving the current measured value)
- Compact and ergonomic housing for one-handed operation
- Robust rubber protective frame for increased grip and impact resistance
Features
- Display range: 6,000 (illuminated)
Basic accuracy: 0.2%
Measurement category: CAT III 1000 V, CAT IV 600 V
Measuring method: TRUE RMS
Voltage AC: 10 µV – 1000 V
Voltage DC: 10 µV – 1000 V
Voltage sensor: Yes
AC current: –
DC current: –
Resistance: 0.1 Ω – 60 MΩ
Continuity | Diode: Yes | Yes
Capacitance: –
Frequency: 10 Hz – 1 kHz
Temperature: –
Memory function: HOLD, MIN/MAX/AVG, REL
Physically
– Color/Finish redblack
