Accessories supplied with the unit

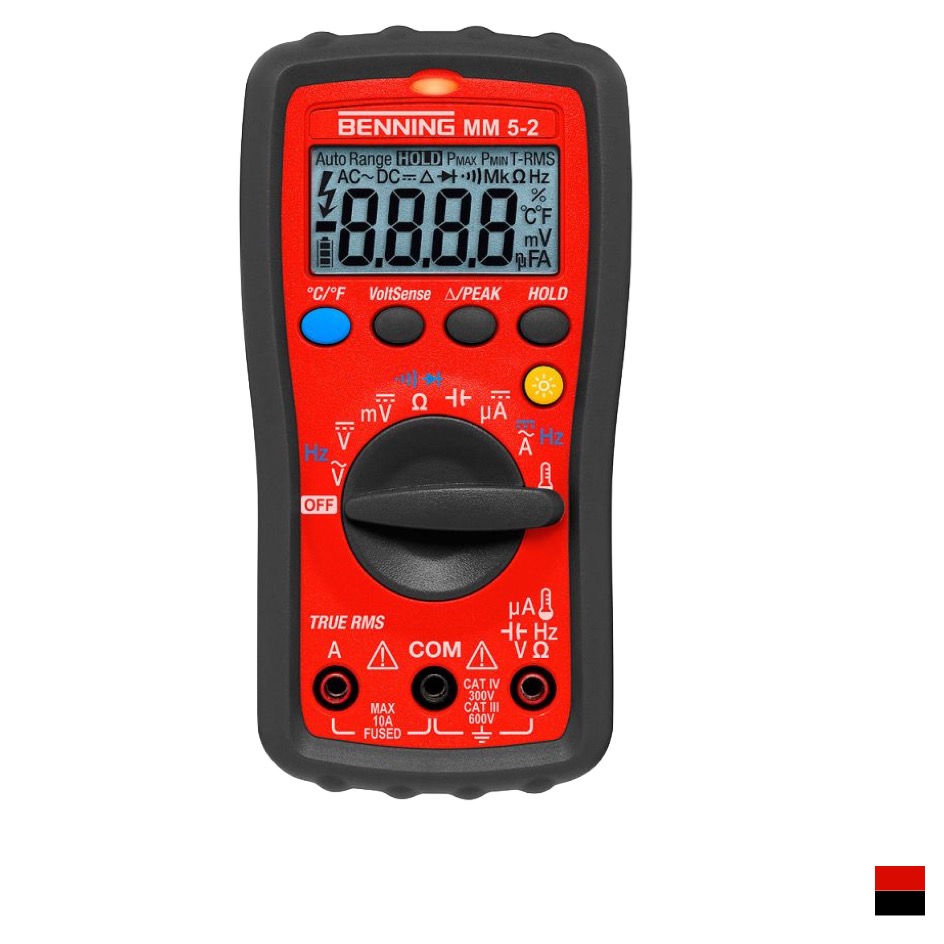

Digital multimeter with robust rubber protective frame
high-quality silicone test leads with gold-plated 2 mm and screw-on 4 mm measuring tip
protective case
batteries (2 x 1.5 V Micro AAA/ IEC LR03)
- precise due to true RMS measurement method (TRUE RMS)
- Micro-ampere measuring ranges (400.0 µA DC / 4000 µA DC) for ionization current measurement on heating systems
- Continuity test via red LED and buzzer
- Integrated voltage sensor signals phase voltages and cable breaks in lines without contact (red LED)
- Robust housing design thanks to integrated rubber protective frame with magnetic hanger
Features
- Display range: 6,000
Basic accuracy: 0.5 %
Measurement category: CAT III 600 V
Measuring method: TRUE RMS
Voltage AC: 0.1 mV – 600 V
Voltage DC: 0.1 mV – 600 V
AC current: 1 mA – 10 A
DC current: 0.1 µA – 10 A
Resistance: 0.1 Ω – 40 MΩ
Continuity | Diode: Yes | Yes
Frequency: 10 Hz – 50 kHz
Capacitance: 0.01 nF – 1 mF
Temperature: – 40°C to + 400°C
Voltage sensor: Yes
Memory function: HOLD, PEAK
Data logger function –
Physically
– Color/Finish redblack
