Detailed description

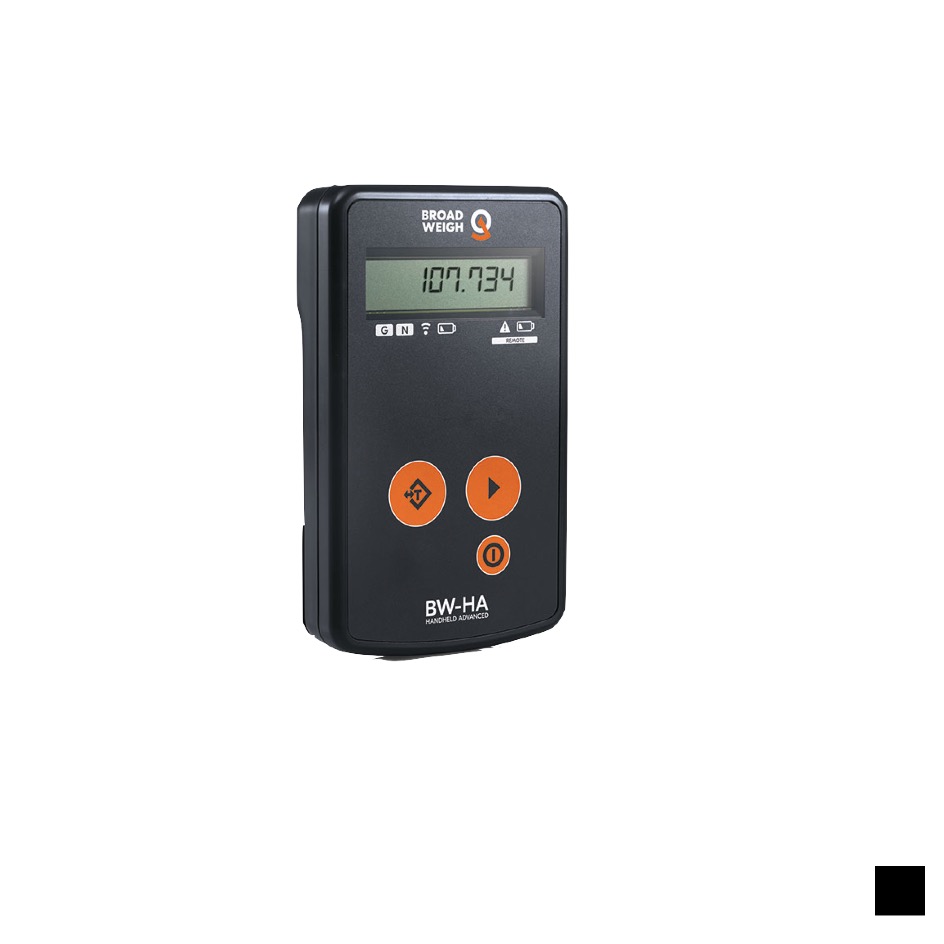

- This device allows users to perform advanced operations with load shackle readings without the need for a PC and a base station. BW–HA can be configured to Roaming Inputs, Pre-defined Inputs and Summing Groups. The handheld has a range of up to 800 m and is compatible with all existing Broadweigh load shackles
- Backlit display makes the device usable in low-light environments
- Define overload and underload values for individual shackles
- Allows for rigging systems to be bundled with load shackles and delivered to locations with pre-configured load monitoring systems, such as scaling, display format, zero functions and overload settings.
Three operational modes
- Roaming Inputs
- Pre-defined Inputs
- Summing groups
– Works straight out-of-the-box
– Shows the nearest shackles with the same radio settings
– Walk between different stages with the same handheld
– (Up to 24) inputs can be configured separately
– Shackles can be named and have audible warning levels set
– Shackles can be summed together giving totals for a whole structure and individual trusses
– The total can be ‘drilled down‘ to allow drawing of individual shackle values.
Physically
– Plastic housing
– IP protection IP67
– Color/Finish black
– Dimensions | W: 90mm | H: 152mm | D: 34mm
Thermally
– Ambient temperature -10°C – 50°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
Battery/Accu
02x AA Battery, 3V
