Detailed description

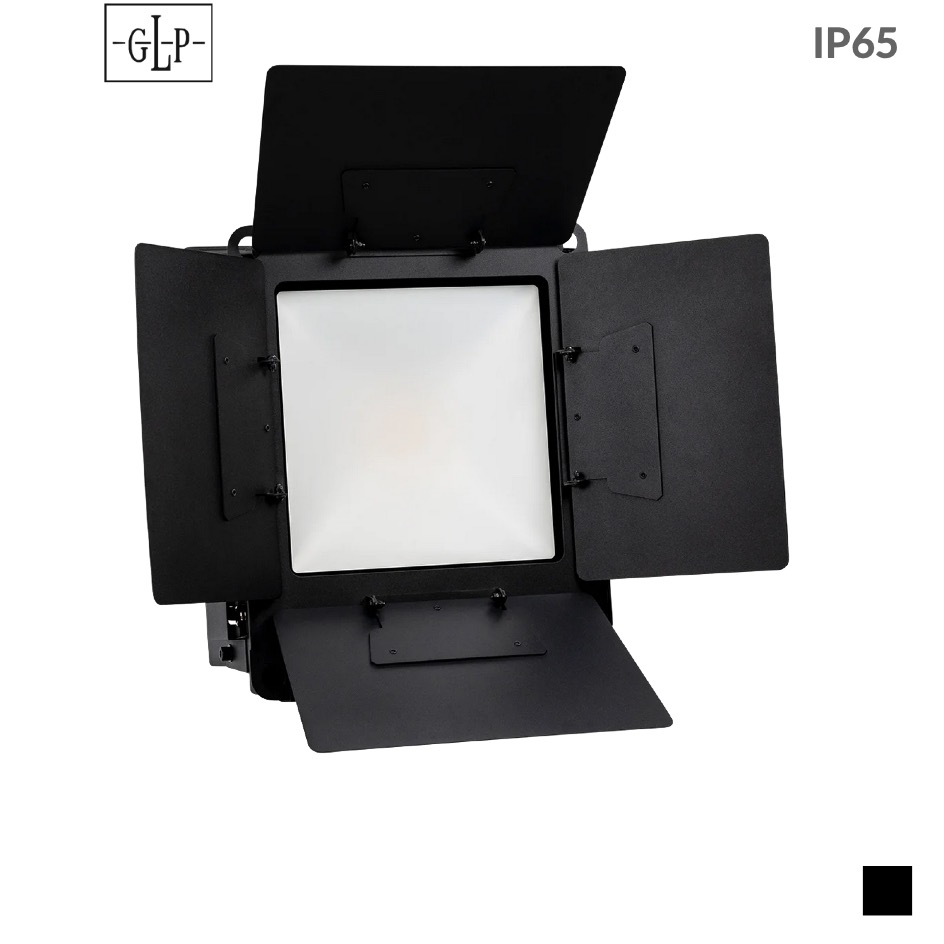

- The MBL 40 is IP65-rated, making it dustproof and suitable for outdoor use. The integrated diffuser disc improves the lighting properties of the LED by reducing glare and providing a homogeneous visual impression.
Particularly noteworthy are the direct selection switches for color temperature and brightness, which allow the most important color temperatures and fixed brightness levels to be set without power – ideal for simple plug-and-play applications. For integration into installations, the MBL 40 supports DMX 512 and can be individually controlled via this protocol. Selectable PWM frequencies (up to 30 KHz) are available for use in the video/TV sector. The MBL 40 has in/out connections for DMX and power (Neutrik powerCON TRUE1), which makes setup and dismantling very easy.
Features
- Brightness can be adjusted directly on the device using a step switch
- Color temperature can be adjusted directly on the device using a step switch
Light source
– 5W LED Engine (x55/55)
– Warm white, cold white
Colors
– RGB, RGBAL
– Tunable White 2700K-6500K
– White points 8,000K, 6,500K, 5,600K, 4,200K, 3,200K, Off
Optical system
– Beam Angle 100°
Physically
– Housing Aluminium
– Mounting method 1 pair of 1/4 twist locks, 2x eyelets for safety cable (rear)
– IP protection IP65
– Color/Finish black
– Dimensions | W: 482mm | H: 380mm | D: 217mm
– Weight 10 kg
Thermally
– Ambient temperature -10°C – 45°C
– Combination of convection and forced cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 400W
Control
– Protocol DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
– 2 DMX Modes with 2, 5 DMX-Channels
Inout
01 Neutrik XLR5 Chassis Male
Output
01 Neutrik XLR5 Chassis female
