Detailed description

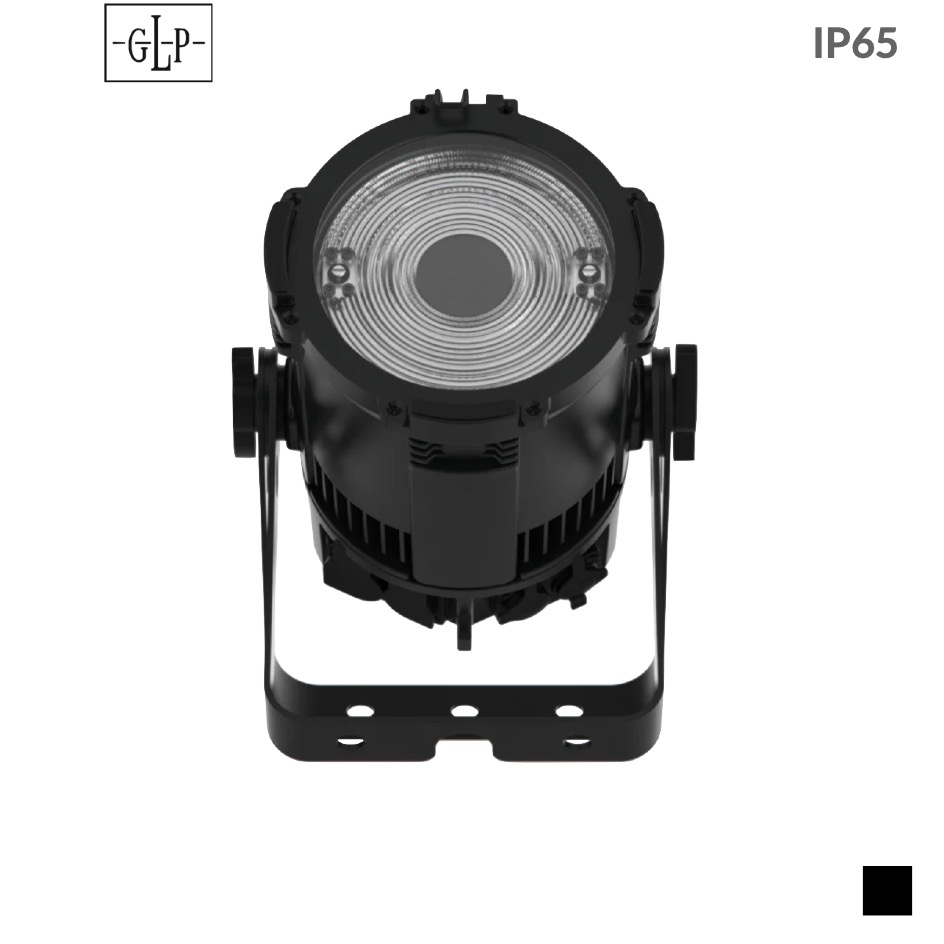

- Whether used individually or grouped into a matrix, the FUSION X-PAR 8Z is just as impressive as eye candy on stage as it is as a colored beamlight or for homogeneous illumination of surfaces. The motorized zoom makes it possible. With its IP65 classification, the spotlight is also ideal for façade lighting.
The X-PAR 8Z emits up to 1,600 lm from a highly efficient 80 watt RGBL LED with outstanding light quality thanks to GLP’s patented iQ.Gamut color calibration. The extremely compact housing (175 x 212 x 249 mm) allows use in a wide range of applications, and the 132 mm Fresnel lens ensures a convincing light image. Thanks to the motorized zoom, powerful 7.5° beams are just as possible as homogeneous washes of up to 45°.
Variable color temperature adjustment from 2,500 to 10,000 Kelvin, four dimmer curves, seven PWM settings including magenta/green shift correction and a virtual color wheel with 64 referenced LEE colors round off the features of the FUSION X-PAR 8Z.
The fanless cooling system of the FUSION X-PAR 8Z also allows it to be used in noise-sensitive environments. The device supports DMX, RDM and iQ.Mesh.
Light source
LED Engine
– 1’600lm max. | 20’000 h
– Red, green, blue, Lime | CRI: 90 | TLCI: 80+
– Refresh Rate PWM 600 Hz, 1.200 Hz, 2.200 Hz, 3.000 Hz, 4.800 Hz, 9.600 Hz, 25 kHz
Colors
– Tunable White 2500K-10000K
Optical system
– Frontlens 152mm
– Motorized Zoom Optic 7.5° to 45°
Physically

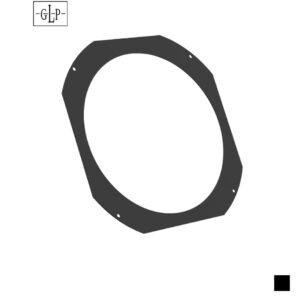

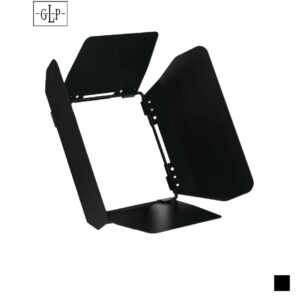

– Housing Aluminium. Floor stand with adjustable foot, M10 thread for drop mounting, bracket for ceiling mounting, bracket for optional filter frame and barndoor
– Mounting method in any position
– Fastening 1 eyelet for safety cable, 1x M10 thread, centered, double bracket with three holes
– IP protection IP65
– Color/Finish black
– Dimensions | W: 212mm | H: 172mm | D: 249mm
– Weight 4,5 kg
Thermally
– Ambient temperature -10°C – 45°C
– Fanless convection cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 85W
Power connector input
PowerCon TRUE1 compatible IP65
Control
– Protocol USITT DMX-512-A, RDM ANSI/ESTA E1.20
– Protocol Output USITT DMX-512-A, RDM ANSI/ESTA E1.20
– 6 DMX Modes with 4, 8, 11, 16 DMX-Channels
Inout
01 XLR5 Chassis Male IP65
Output
01 XLR5 Chassis Female IP65
