Detailed description
- The new square lens design ensures maximum lumen efficiency and creates an unprecedented light curtain in the narrowest zoom range of just 4.4°, as well as uniform and homogeneous color distribution across the entire range up to the widest wash of 63°.
As part of the new GLP X5 family, the X5 Bar 1000 offers a comprehensive feature set, including selectable calibrated color temperatures, a tungsten simulation channel, magenta/green correction, a virtual color wheel, and variable CTC, as well as layer effects with numerous dynamic pattern macros.

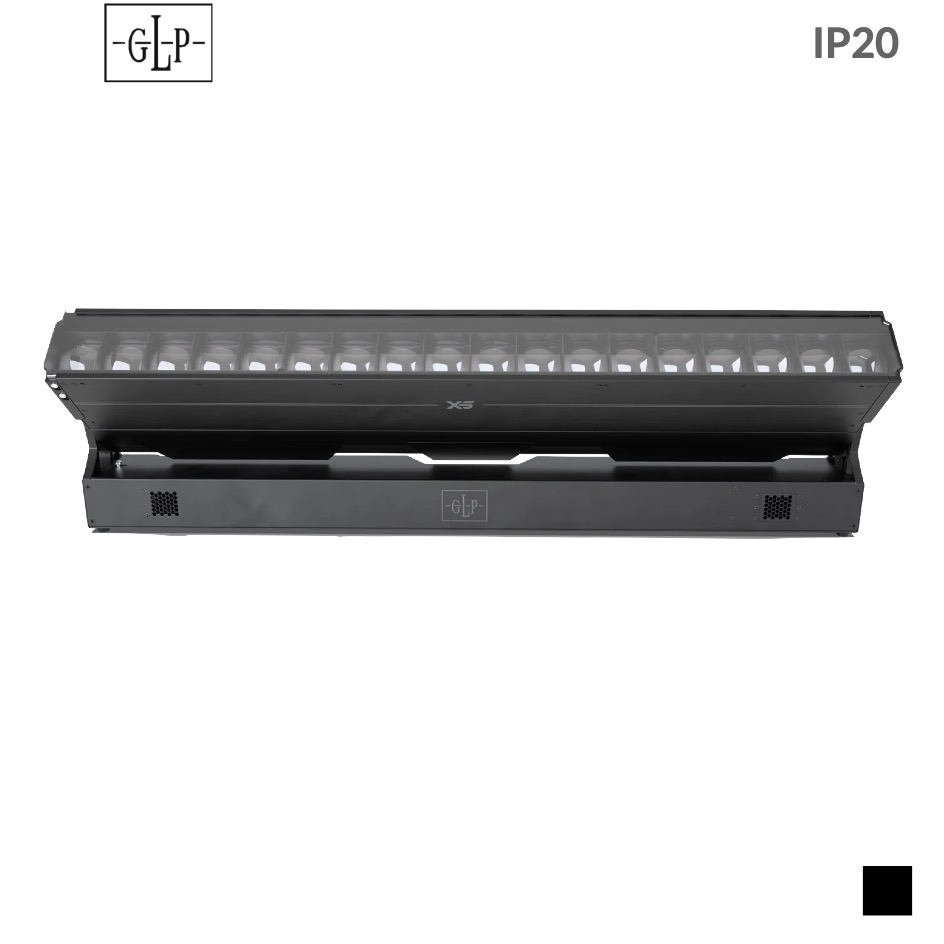

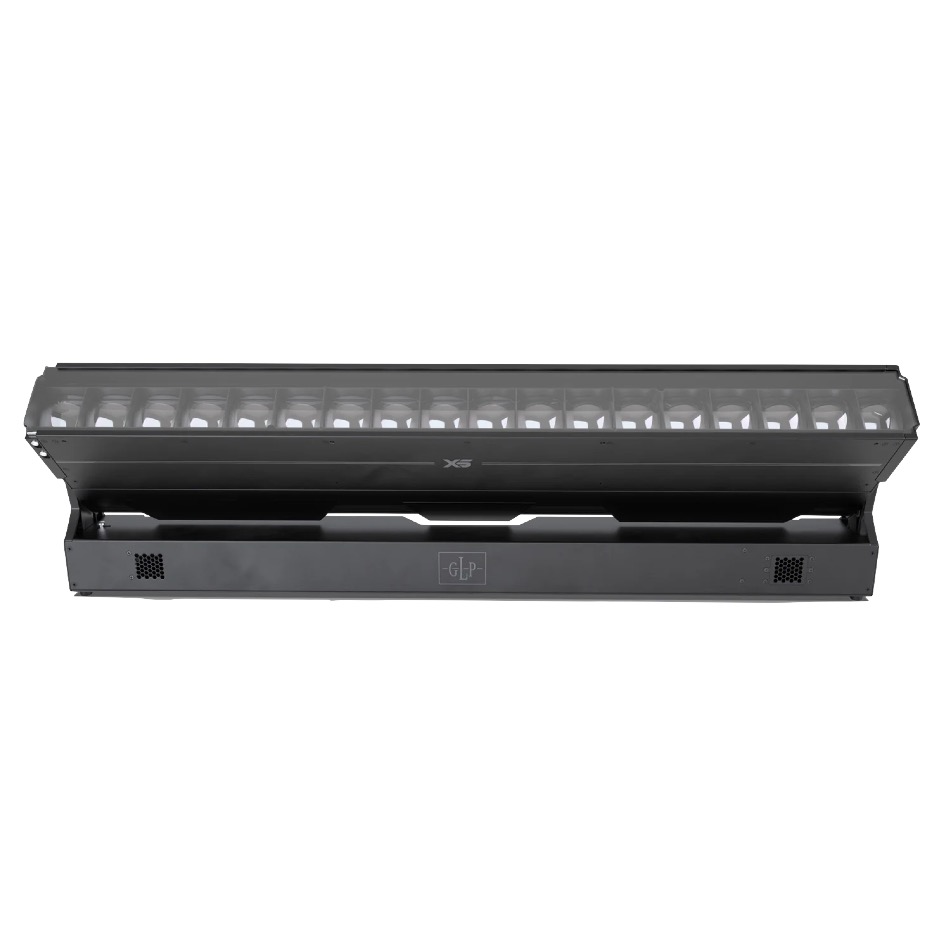

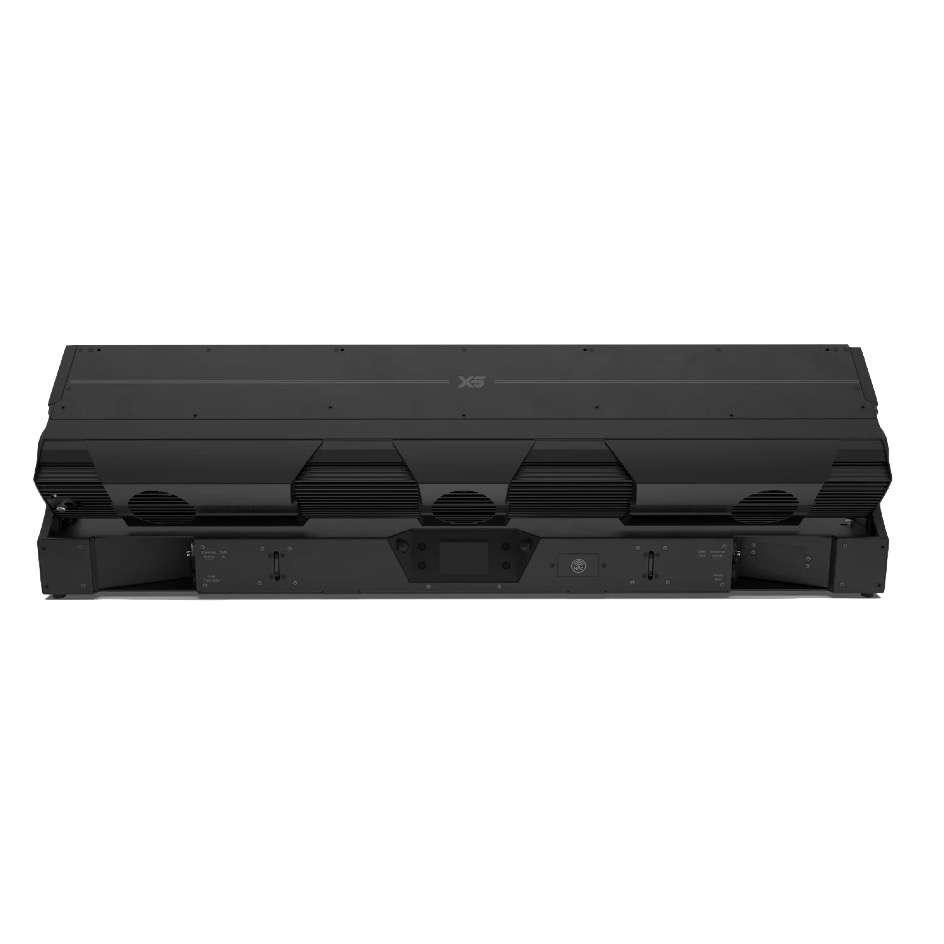

The impression X5 Bar 1000 offers fast tilt movement combined with seamless, patented pixel pitch across all devices and comes standard with wired control.
Features
- super fast zoom for punchy 4.4° narrow curtain to 63° homogen wide wash
- up to 7,500 lm Output and high Color Rendering with CRI 87
- innovative GLP iQ.Mesh and iQ.Gamut technology
Light source
– 40W Multichip LED square (x18)
– max. 7’500lm | 50’000 h
– Red, green, blue, Lime | CRI: 8’000K: 87, 6’500K: 86+, 3’200K: 84+
Brightness control
– 0 – 100%, 16 bit, Strobe, Pulse, Sparkel etc.
Positioning
– Tilt: 205°
Colors
– RGB, RAW, x;y
– Tunable White 2500K-10000K
– Color wheel: virtual, 64 LEE referenced colors, rainbow
Optical system
– 18 square lenses 48 x 48mm
– Motorized zoom optics 4.4° to 63°
Physically
– Housing Impact-resistant flame-retardant thermoplastic, aluminum, sheet steel.
– Mounting method Tilt-lock system, alignment system, thread for external accessories, slide-in filter system
– Fastening 2 eyelets for safety cables, 4 pairs of 1/4-turn locks for 2 installation brackets
– IP protection IP20
– Color/Finish black
– Dimensions | W: 1000mm | H: 296mm | D: 110mm
– Weight 20,2 kg
Thermally
– Ambient temperature -5°C – 45°C
– Combination of convection and forced cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 700W
Power connector input
Neutrik powerCON True 1 Chassis
Power connector output
Neutrik powerCON True 1 Chassis
Control
– Protocol DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
– Protocol Output DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
– 6 DMX Modes with M1: 20, M2: 33, M3: 48, M4: 84, M5: 63, M6: 81 DMX-Channels
Inout
01 Neutrik XLR5 Chassis Male
Output
01 Neutrik XLR5 Chassis Female
Network
– Protocol Art-Net, sACN, GLP iQ.Mesh
– Protocol Output Art-Net, sACN, GLP iQ.Mesh
Input
Neutrik etherCON
Output
Neutrik etherCON (A & B Failsafe)
