Detailed description

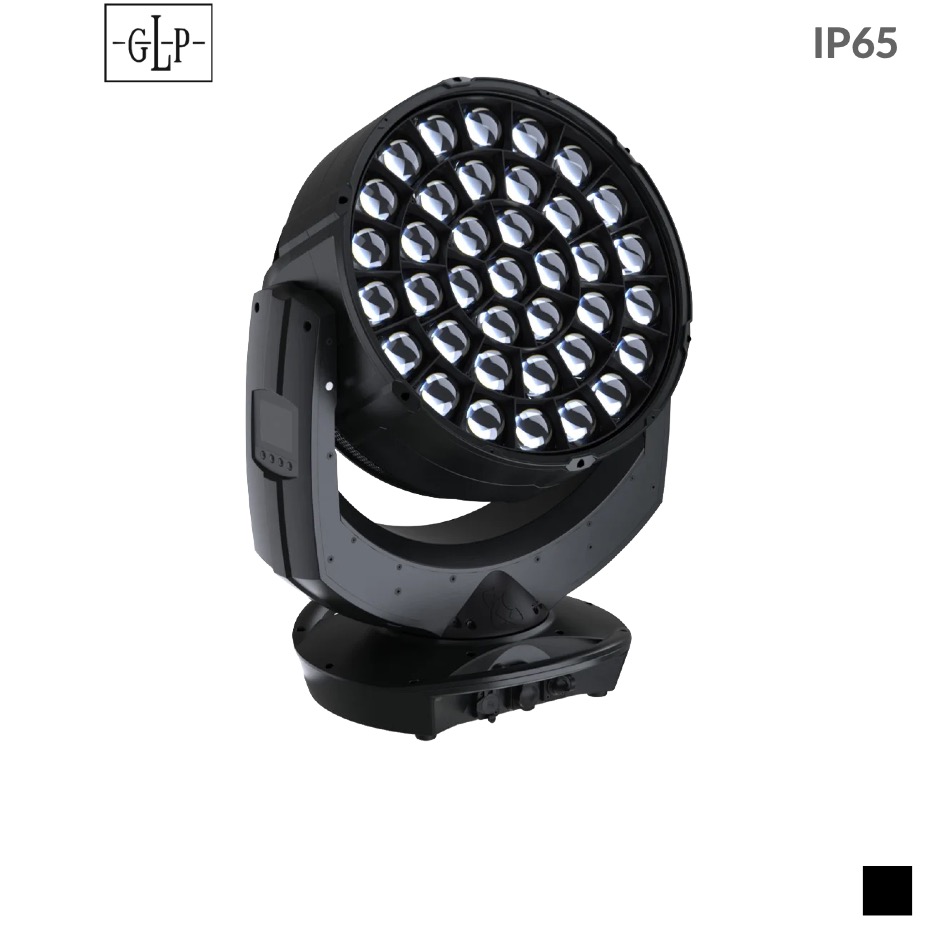

- Equipped with the new iQ.Gamut color algorithm, the impression X5 IP Maxx generates a clean white point with a CRI of 86 / TLCI of 88+ at 6,500 Kelvin. It also offers the option of quickly switching to other fixed color temperatures, all of which are precisely calibrated on the color temperature curve and still offer a color quality of CRI 84+ / TLCI 74 even with warm white light of 3,200 Kelvin.
With the new 19:1 zoom mechanism, the impression X5 IP Maxx offers a penetrating 3.3° parallel beam and up to 66° homogeneous wash light with a light intensity of up to 3.56 Mcd.

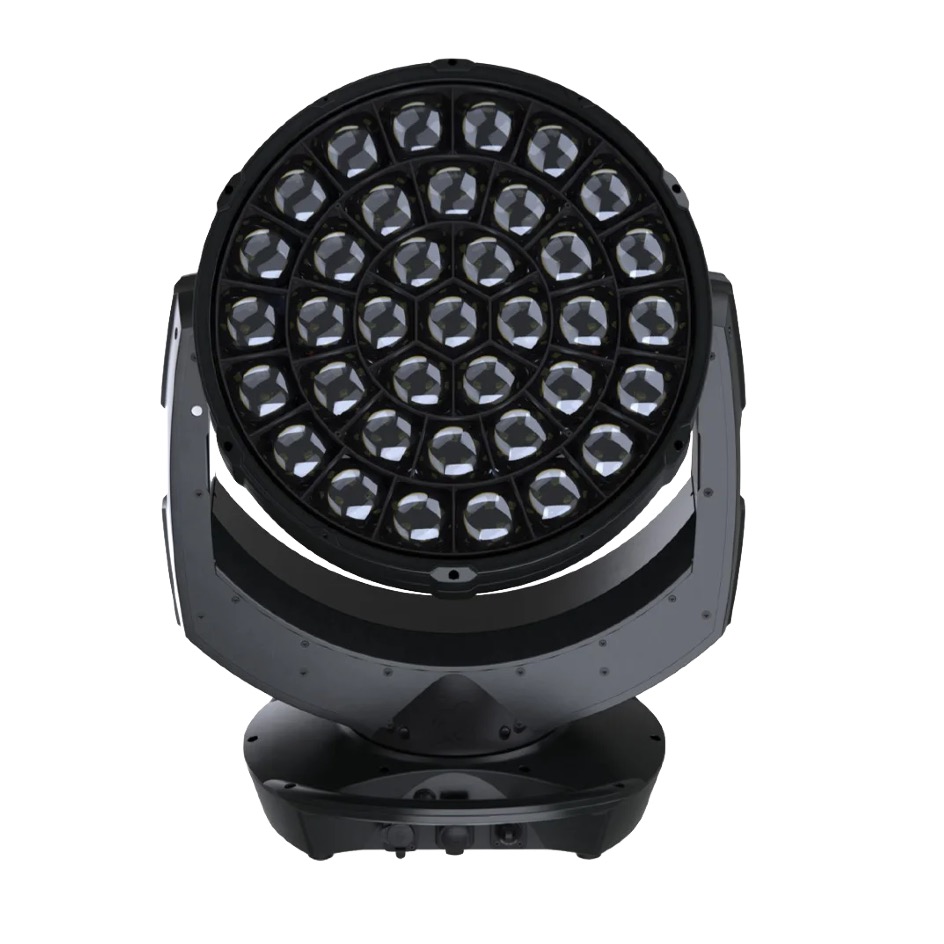

The new circular lens design offers a modern look. Individual pixel control with pixel mapping and integrated dynamic pattern effects allow you to generate even more fantastic looks.
The impression X5 IP Maxx comes with a comprehensive package of functions and effects, including a virtual color wheel with access to 64 colors from the LEE filter palette, a new color quality control, magenta/green correction, a tungsten simulation and effect channel, and a 2-layer effect option.
Thanks to its IP65 certification, the spotlight can be used both indoors and outdoors in all weather conditions. The compact design with a weight of less than 30 kg is designed so that the spotlight can be easily mounted in common pre-rig truss systems.
The impression X5 IP Maxx can be controlled via DMX, ArtNet, sACN, and LumenRadio CRMX. It also features NFC and the iQ.Mesh module for convenient configuration via the GLP iQ.Service app.
Light source
– 40W Multichip LED (x37)
– < 21’000lm | 50’000 h
– Red, green, blue, Lime | CRI: 8,000 K: 87, 6,500 K: 86+, 3,200 K: 84+ | TLCI: 8,000 K: 90, 6,500 K: 88+, 3,200 K: 74
– Low: 550 Hz, Optimal: dynamic PWM algorithm, High 1: 4,600 Hz, High 2: 13,000 Hz, all values rounded; contact GLP Support for more detailed information.
Brightness control
– 100%, electronic, 16 bit | Strobe, Pulse, Sparkle, etc.
Positioning
– PAN: 540° / TILT 240°
Colors
– RGB | RGBL | x;y
– Tunable White 2500K-10000K
– Tungsten simulation 8x linked to fixed CCT | 8x relative to Colormix
– virtual, 64 LEE referenced colors, rainbow
– Various settings for layer priority
Optical system
– Frontlens 380mm
– Motorized Zoom Optic 3.3° to 66°
Physically
– Housing Impact-resistant, flame-retardant thermoplastic, aluminum, sheet steel. Prepared for external accessories, tilt-lock system.
– Mounting method 2 pairs of 1/4 twist locks | Eyelets for safety cables | 2x M10 threads
– IP protection IP65
– Color/Finish black
– Dimensions | W: 483mm | H: 631mm | D: 358mm
– Weight 29,7 kg
Thermally
– Ambient temperature -10°C – 45°C
– Combination of convection and forced cooling. Regulated, high, medium, minimum
Electrically
– electrical protection class Protection Earth
– Operating voltage 180 – 250VAC, 50-60Hz
– Power consumption 1500W
Power connector input
Neutrik powerCON True 1 TOP
Power connector output
Neutrik powerCON True 1 TOP
Control
– Protocol DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
– Protocol Output DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
– 6 DMX Modes with 22, 33, 42 141, 122, 169 DMX-Channels
Inout
01 XLR5 Chassis Male IP65
Output
01 XLR5 Chassis Female IP65
Wireless receiver (RX)
– Standard LumenRadio CRMX (FPO)
Network
– Protocol Art-Net, sACN, GLP iQ.Mesh
– Protocol Output Art-Net, sACN, GLP iQ.Mesh
Input
Neutrik etherCON IP65
Output
Neutrik etherCON IP65
