Detailed description

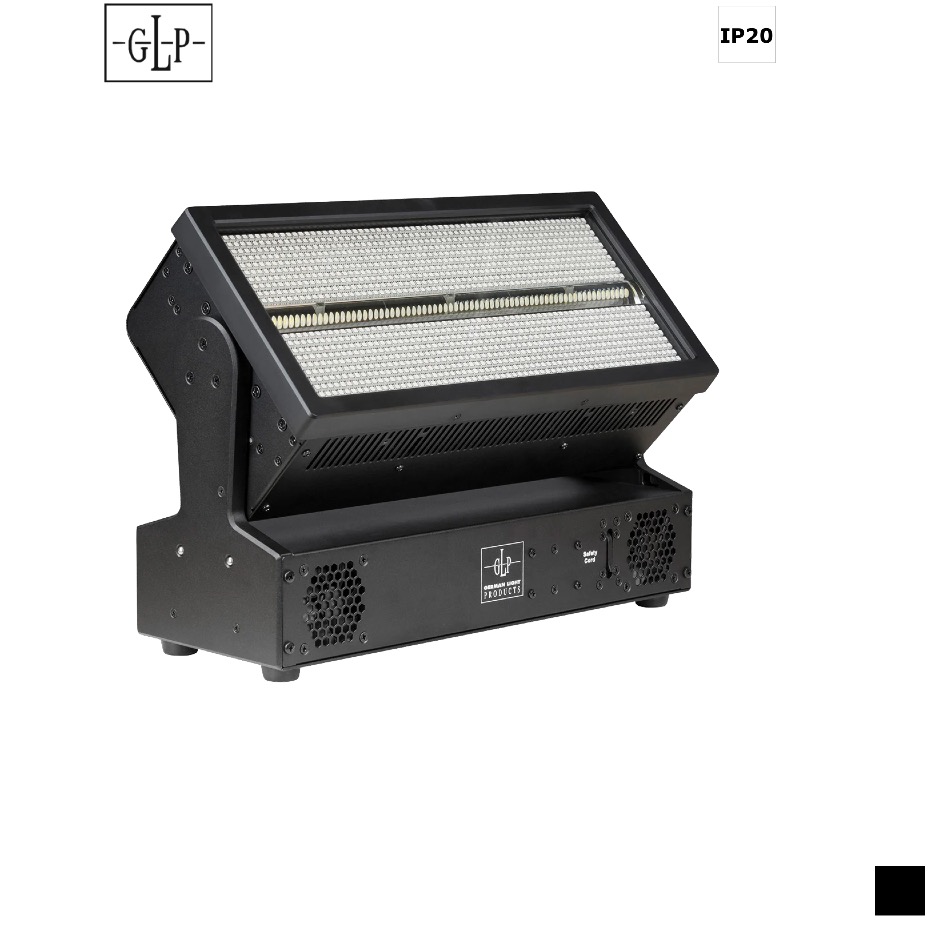

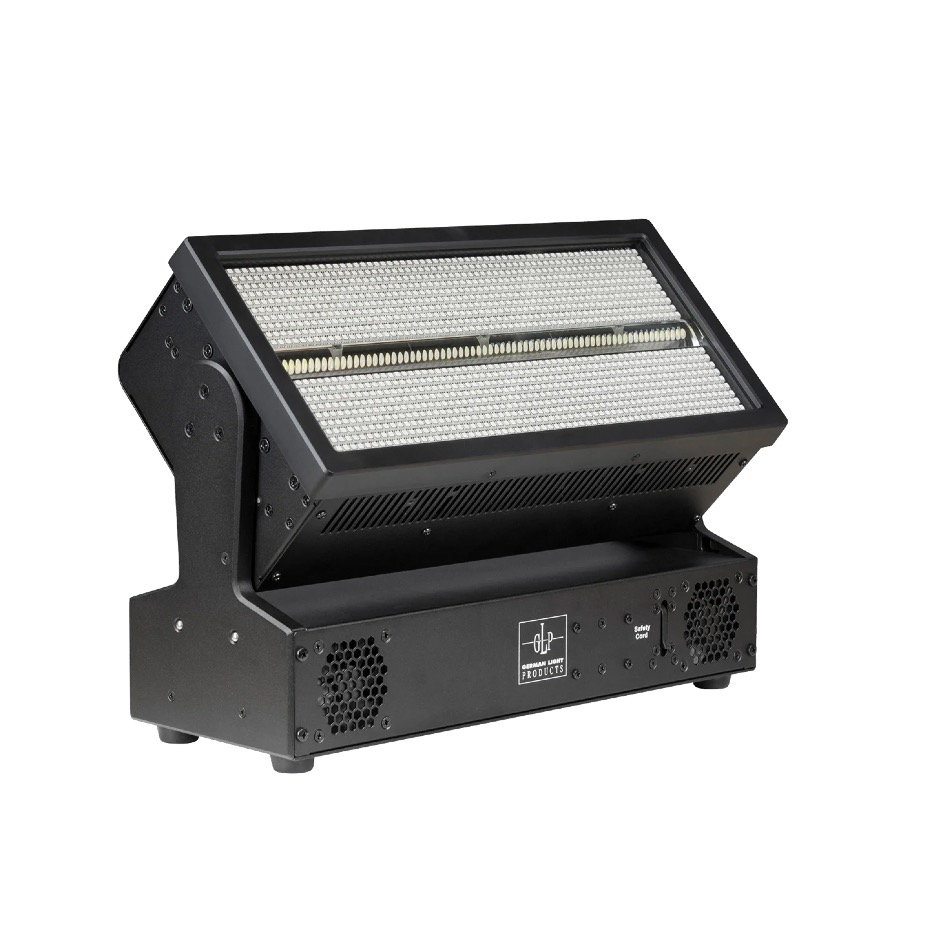

- At the heart of the JDC1 is an LED array modeled on a classic discharge tube, which is in no way inferior to a conventional stroboscope with its incomparable, white and dazzlingly bright light. In addition, the JDC1 has 1,320 ultra-bright RGB LEDs above and below the tube to fill the entire format – creating previously impossible and stunning effects.
Both light sources can be controlled independently of each other and therefore work either as one unit or as two completely different light sources – the creative possibilities are practically limitless. Continuous operation as a blinder is possible with both the LED tube and the LED plates without any problems.
What’s more, both light sources can be divided into individual sections and controlled separately with any suitably equipped controller – right up to pixel mapping.
For even more creativity and even more individual looks, the JDC1 has a motorized tilt of 188 degrees and a resolution of 16 bit – so the punch is always guaranteed to arrive exactly where it is supposed to.
Light source
216x White Flash LEDs, 1’320 x RGB Wash LEDs
– Red, green, blue + White Strobe | CRI: 73
Positioning
– Motorized tilt 185°
Physically
– IP protection IP20
– Color/Finish black
– Dimensions | W: 390mm | H: 251mm | D: 150mm
– Weight 11,6 kg
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 1’200W
Power connector input
Neutrik powerCON True 1 Chassis
Control
– Protocol DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
Inout
Neutrik XLR5 Chassis Male
Output
Neutrik XLR5 Chassis Male
