Detailed description
- With 12 individually controllable segments, the Beam-Strobe-Line offers intensive strobe effects and more than 100 static and dynamic strobe patterns in addition to individual segment control. The 1,025 cm² plate surface offers an increased solid angle and therefore visibility from a greater distance – with more than 25% higher brightness. The saturated colors of the 1,728 LEDs provide powerful primary colors. This allows stages and rooms to be completely immersed in color. The diffuse lighting effect in combination with Haze creates an impressive, rich color environment. The black LED masking eliminates unwanted light reflections and stray light from other light sources and makes the luminaire disappear in the set.
Effects
- The two plates can be controlled separately as well as individually in 12 or 24 segments. In addition, the new JDC2 IP offers the possibility to create breathtaking digital effects with an individually controllable pixel matrix. The integrated powerful Dual Cortex CPU with 3D graphics processing offers the possibility to create video-like digital effects – the so-called GLP DigiFX. With over 100 of these elaborately designed GLP DigiFX, the JDC2 offers an extremely flexible way to create customized digital content. But the JDC2 IP goes one step further – all selected DigiFX can also be manipulated in real time via special DigiFX channels. The JDC2 IP thus offers endless creative possibilities for staging shows and events in a completely new way – and all without media servers or other external players. But that’s not all: the two fail-safe GigaBit EtherCon connections make it possible to capture up to four external NDI streams and play them back on the plates. No special interface, licensable protocols or expensive video processors are required.
Movement
- The head of the JDC2 IP can be motorized to swivel 180° and can therefore be aligned as required or used for dynamic effects. The extremely robust housing in a modern design is IP65-certified for permanent indoor as well as temporary outdoor applications. The GLP JDC2 IP is of course equipped with the innovative GLP iQ.Mesh interface with NFC Connect for exceptional user-friendliness. The extremely simple system integration and control of the integrated effects and DigiFX allow users to concentrate on the essentials: creative design!
Light source
84x White Flash LEDs, 1’728 x RGB Wash LEDs
– Red, green, blue + White Strobe
Brightness control
– Electronic 16-bit dimming with a large selection of different strobe intensity effects
Positioning
– Motorized tilt 184°
Colors
– 2-way RGB, via DigiFX
– Beam: up to 100 static and dynamic pattern effects
– Plate: up to 80 GLP DigiFX effects
Optical system
– 2 rectangular lenses, each 377 x 111°
– Beam: 150°/49°, Plate: 160°/160°
Physically
– Impact-resistant flame-retardant thermoplastic, aluminum, sheet steel, tilt-lock system, alignment system, handles in the head, built for optional accessories
– IP protection IP65
– Color/Finish black
– Dimensions | W: 444mm | H: 452mm | D: 230mm
– Weight 23,5 kg
Thermally
– Ambient temperature -10°C – 45°C

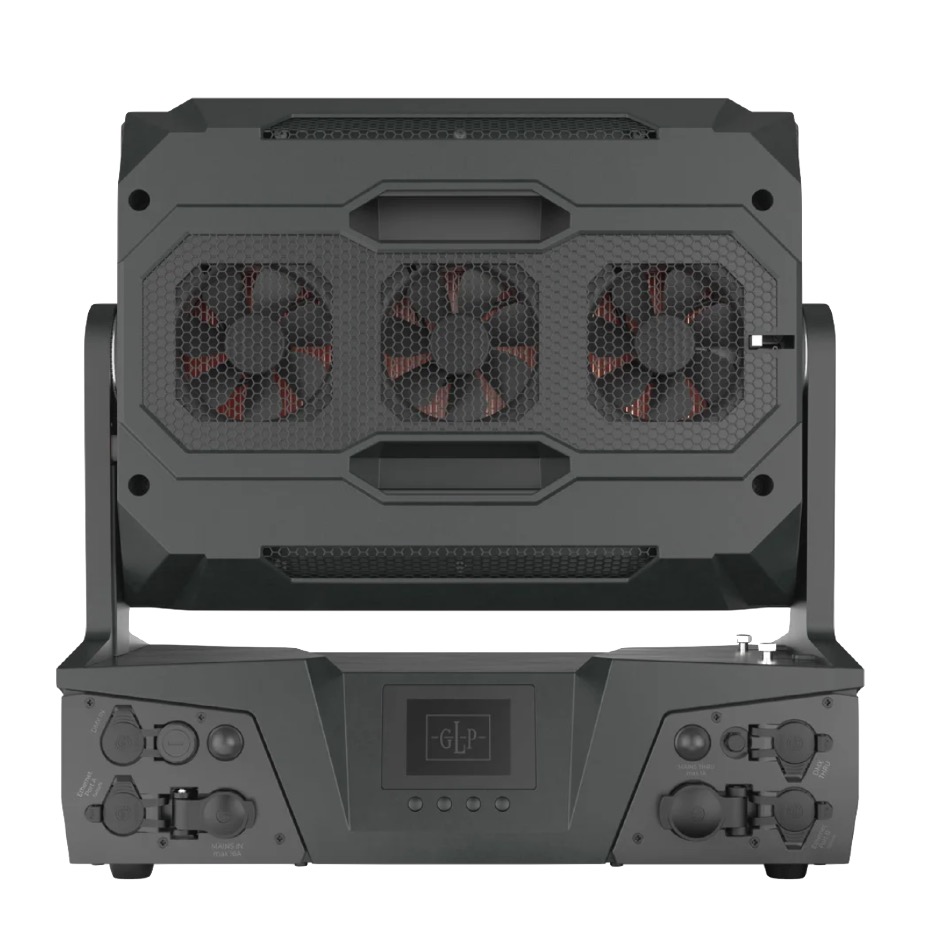

– Combination of convection and forced cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 1’500W
Power connector input
Neutrik powerCON True 1 Chassis IP65
Power connector output
Neutrik powerCON True 1 Chassis IP65
Control
– Protocol DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
– Protocol Output DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
Inout
Neutrik XLR5 Chassis Male IP65
Output
Neutrik XLR5 Chassis Male IP65
Wireless receiver (RX)
– Standard CRMX DMX/RDM (optional) | LumenRadio CRMX (FPO)
Network
– Protocol GLP iQ.Mesh
Input
Gigabit etherCON (failsafe) IP65
Output
Gigabit etherCON (failsafe) IP65
