Detailed description

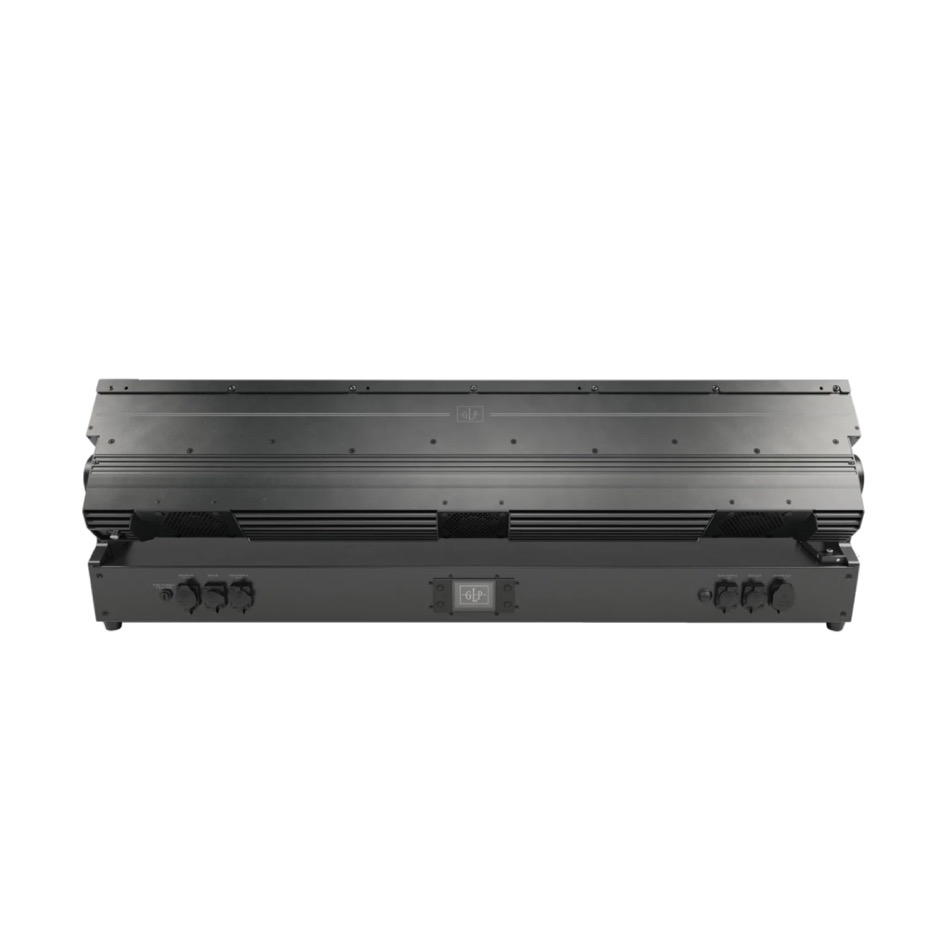

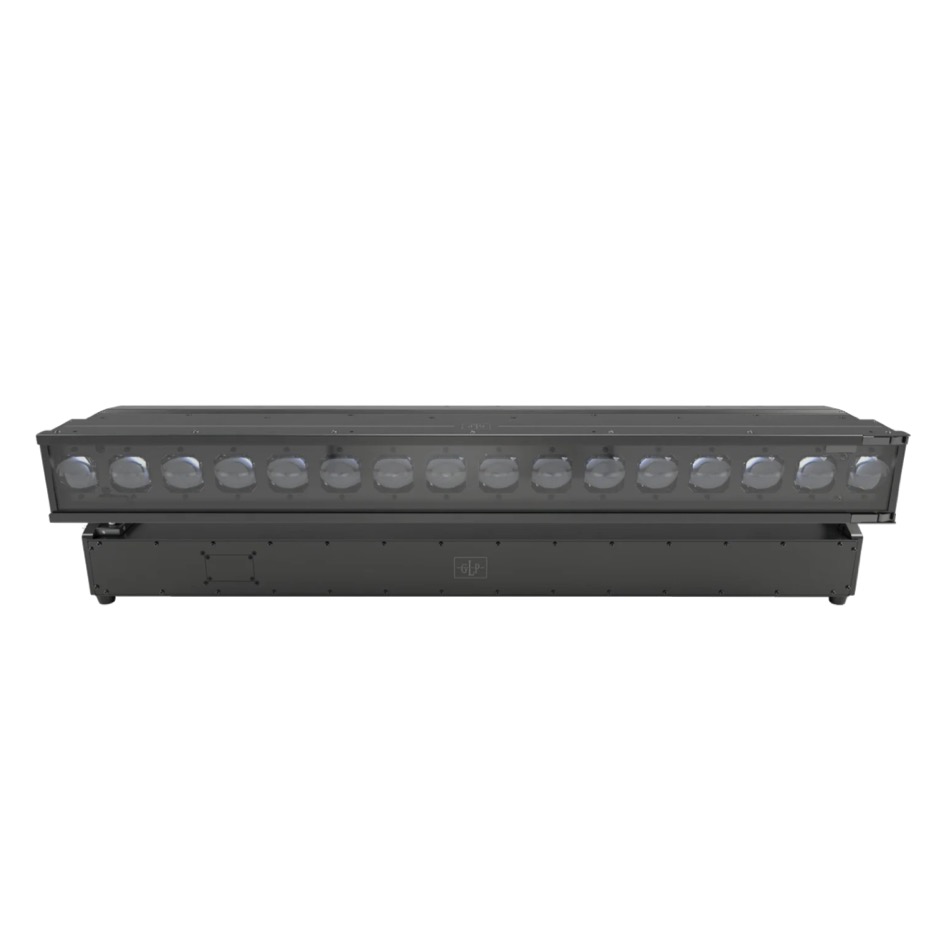

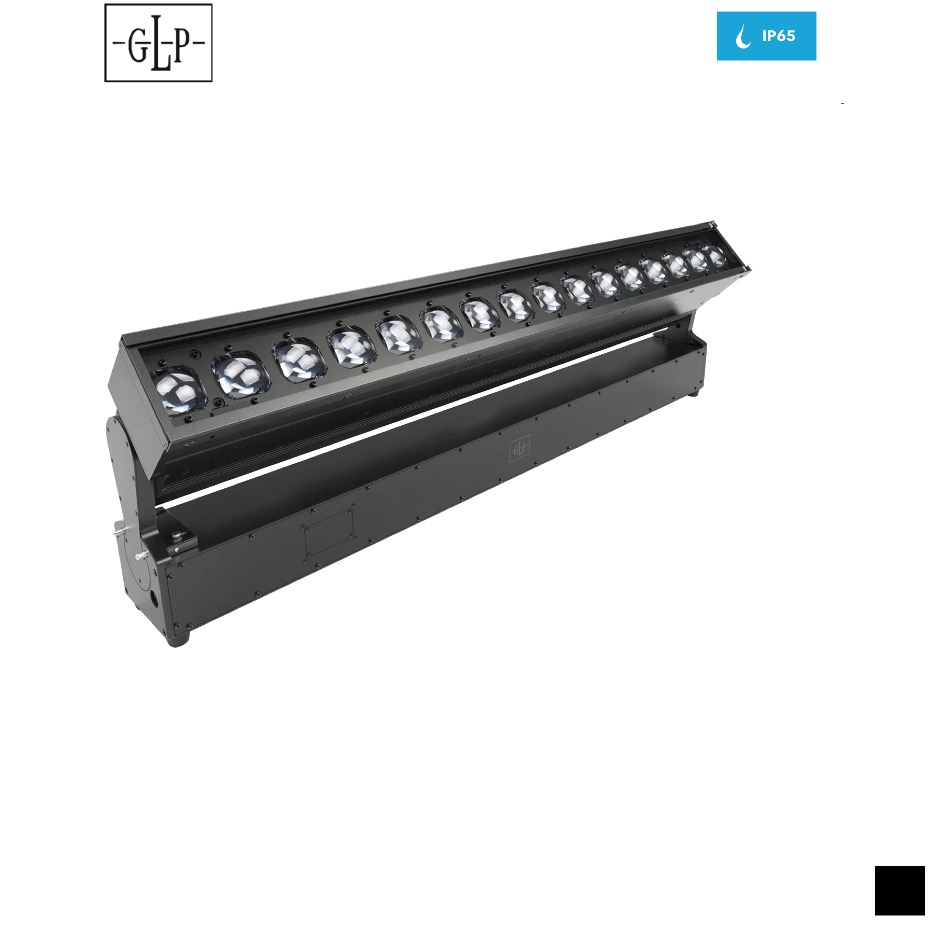

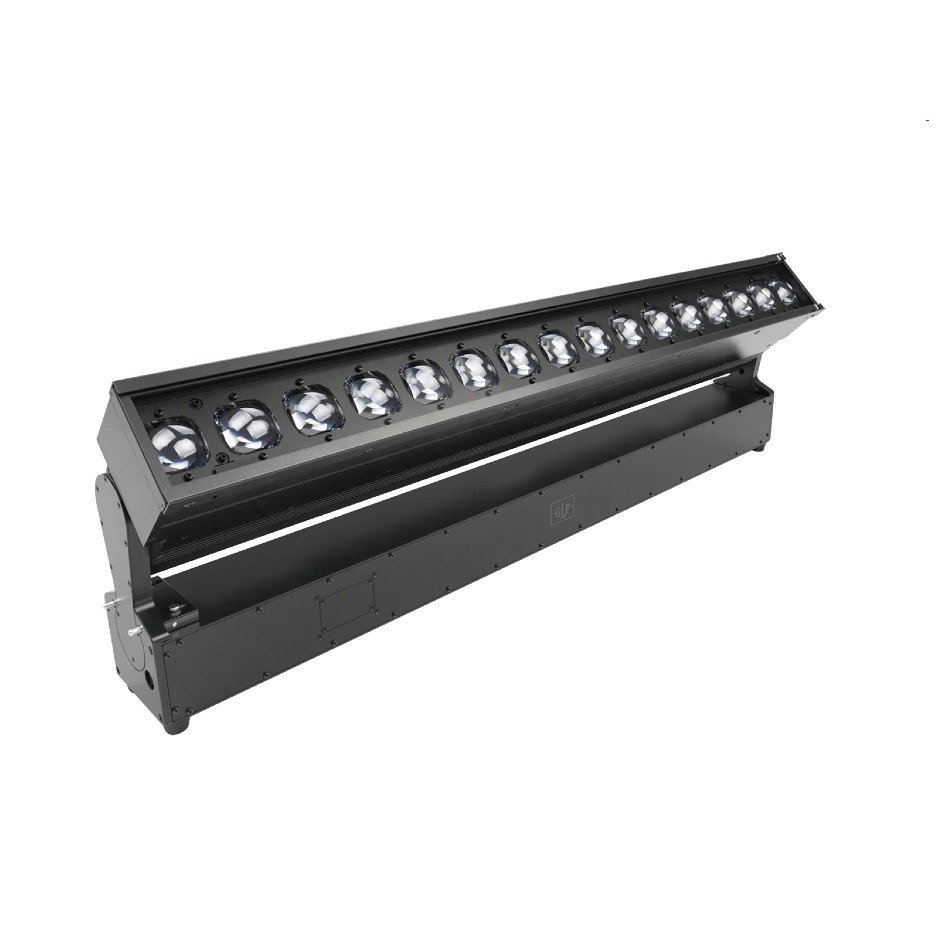

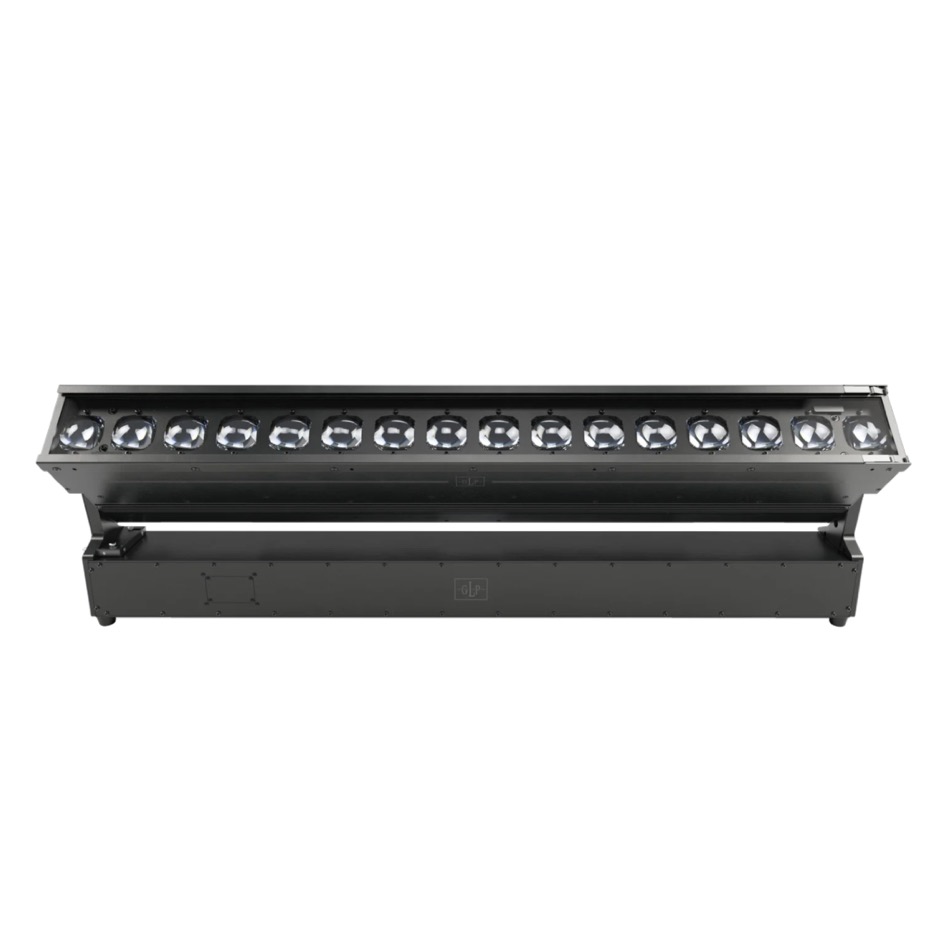

- As a leading manufacturer of innovative lighting technology with decades of experience in the field of moving LED bars, GLP is setting new standards in terms of performance, flexibility and efficiency with the WildBar 16.
Equipped with 16 powerful 40-watt RGBL LEDs, the WildBar 16 delivers an impressive light output of 10,300 lumens. Its motorized 200° tilt and variable zoom from 4° to 44° enable an extraordinary range of lighting effects – from sharp beams to wide-area illumination.
Thanks to IP65 certification, the WildBar 16 can withstand rain, dust and dirt, making it perfect for use at festivals, open-air concerts and other challenging environments. Despite its robust construction, it remains surprisingly light at just 23 kg, making it particularly easy to handle.
For maximum control flexibility, the WildBar 16 supports DMX, RDM, ArtNet, sACN and the GLP iQ.Mesh system, which offers multi-patch functions for pixel-perfect media server control. Its optimized design makes it a cost-effective solution for demanding lighting designers without compromising on quality and performance.
Light source
– 40W 16 x Multichip LEDs
– 10’300 lm | 50’000 h
– Red, green, blue, Lime
Positioning
– Tilt: 200°
Optical system
– Motorized zoom optics 4° to 44°
Physically
– Impact-resistant flame-retardant thermoplastic, aluminum, sheet steel. Illuminated graphic LCD & 4 button menu navigation, 1 scene stand alone. Pattern-FX-Engine.
– IP protection IP65
– Color/Finish black
– Dimensions | W: 1000mm | H: 339mm | D: 196mm
– Weight 23 kg
Thermally
– Ambient temperature -10°C – 45°C
– Combination of convection and forced cooling
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 700W
Power connector input
Neutrik powerCON True 1 TOP Chassis
Power connector output
Neutrik powerCON True 1 TOP Chassis
Control
– Protocol DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
– Protocol Output DMX USITT DMX512-A, RDM ANSI/ESTA E1.20
– 2 DMX Modes with 28, 79 DMX-Channels
Inout
01 Neutrik XLR5 Chassis Male IP65
Output
01 Neutrik XLR5 Chassis Female IP65
Network
– Protocol Art-Net, sACN, GLP iQ.Mesh
– Protocol Output Art-Net, sACN, GLP iQ.Mesh
Input
Neutrik etherCON IP65
Output
Neutrik etherCON IP65
