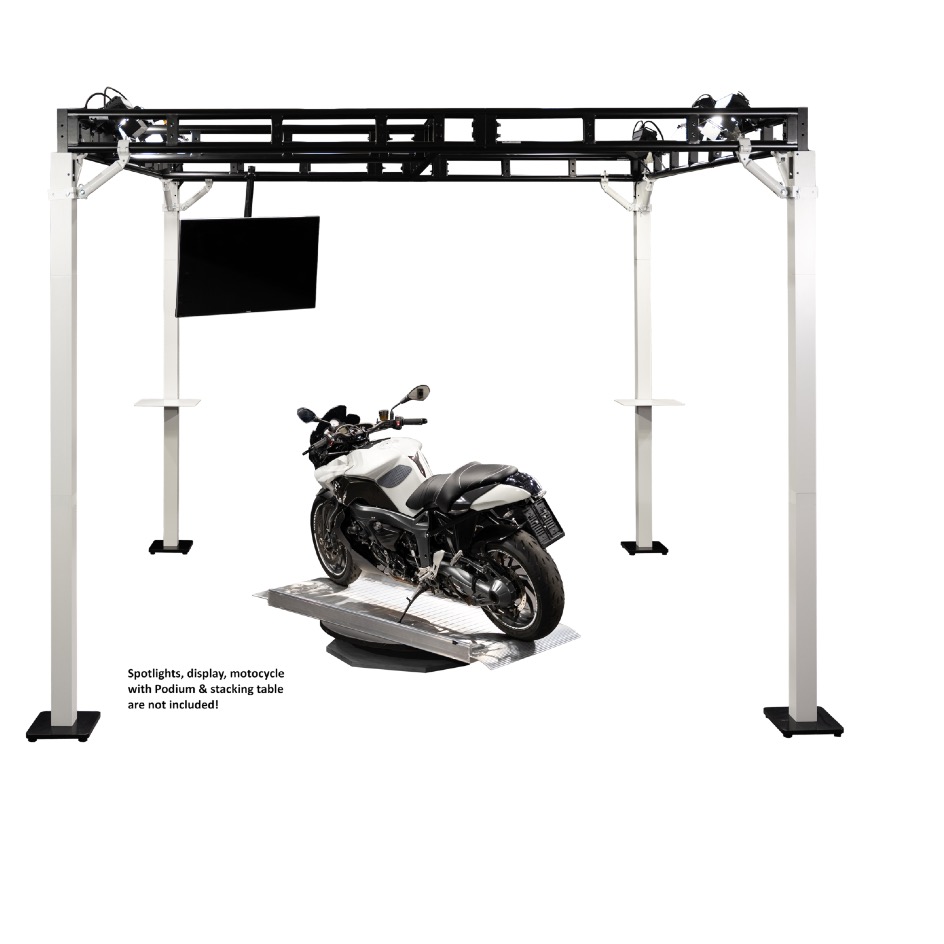

- The combination of the HOF Excellent Line Design Stele and the HOFBOLT 200-2 Grid Truss gives the construction an elegant, slim and inconspicuous appearance, yet still impresses with its high load-bearing capacity.
Thanks to the modular system, there are virtually no limits to the user’s imagination. Almost any size and shape can be realized. And because the possibilities are so numerous, this set is only intended as an example. Please contact us and we will put together the design of your choice!
The kit contains the following items
05 x 1152002200095 HOF HOFBOLT 200-2 | black, 200cm
07 x 1152002150095 HOF HOFBOLT 200-2 | black, 150cm
02 x 1152002025095 HOF HOFBOLT 200-2 | black, 25cm
06 x 115200208 HOF HOFBOLT 200-2 Slide Connector | Aluminium roughly
04 x 11520020995 HOF HOFBOLT 200-2 Corner Connector | black
10 x 11520020595 HOF HOFBOLT 200-2 Bolt Connector short | black
08 x
04 x 163D4D2CB Excellent Line CORNER BRACING Excellent Line «» HOFBOLT 200-2 Grid Truss | grey RAL7035
04 x 163D2002BP Excellent Line BODENPLATTE BP300 | black satin RAL9005
08 x 163D4D21000 Excellent Line EXTENSION | grey RAL7035, 100cm
04 x 163D4D2UK Excellent Line UNIVERSAL HEAD D2/D4 | grey RAL7035, 56cm
04 x 163D4D2AT Excellent Line ADAPTER for HOFBOLT 200-2 Grid Truss
Physically
– Aluminium EN AW 6082 T6
– Material thickness 5mm
– Dimensions | H: 45mm | Ø: 100mm
– Weight 0,5 kg
