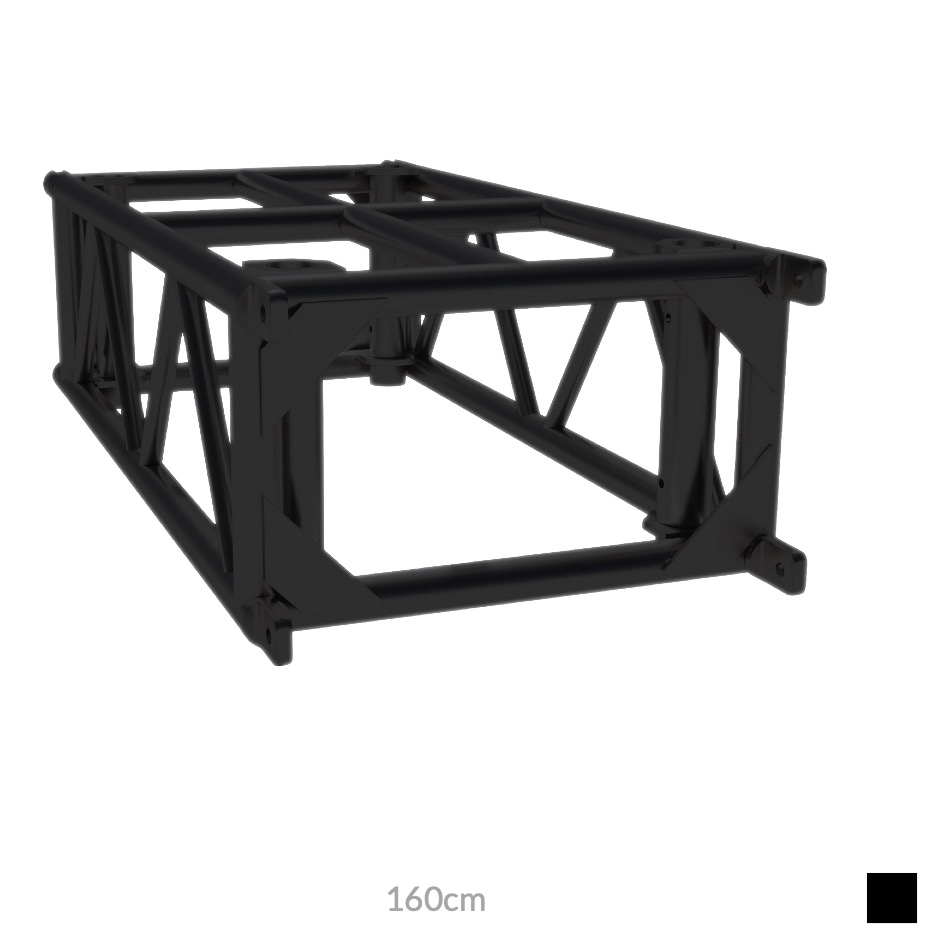

- The MLT TWO has many advantages when it comes to maximum flexibility and quick, easy assembly and disassembly:
- Rotable forks – rotatable fork connectors made of steel
- Can be unscrewed by up to 70 mm to form vertical or horizontal circles with different radii

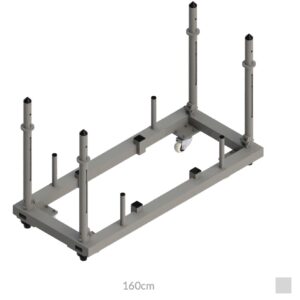

- Easy to replace if requiredFolding dolly – foldable and stackable dolly
- easy handling – only one person is needed to connect the crossbar and dolly
- Space-saving folding and easy stacking thanks to practical articulated joints (up to 10 pieces without crossbar)
- The legs of the doll can be telescoped by removing the upper locking pins
- for convenient and secure attachment of the trussFully compatible with the proven MLT ONE trusses and dollies from both series can be easily combined with each other.
- Extensive and practical accessories perfectly complement the MLT TWO product series.
Adjustable Legs – telescopic legs
Features
- Rotable forks made of steel
- Height incl. dolly: 1030 mm
- Eurocode 9 tested
- TÜV-certified operation
Physically
– Aluminium EN AW 6082 T6
– Color/Finish black
– Dimensions | W: 608,3mm | H: 356mm | Lenght 160cm
– Main Chord Ø48,3mm x 4,5mm
– Diagonal Chord Ø30mm x 3mm
– Connectortype Fork connector variable 0-70mm
– Weight 36,5 kg
