Detailed description
- Stacked on dollies, SNAP Stack saves approx. 2 cm per layer
- Stacking height compared to conventional stacking timber, also eliminates the time required for stacking timber.
- A further advantage is offered by stacked / short lengths on dollies. Where previously shorter pieces of trusses had to be put together to form one length or more than two stacking timbers had to be used per layer, the
- Any number of short pieces can easily be stacked on a lower basic length.
- Made of highly resistant plastic, SNAP Stack prevents direct contact between the floor and truss and thus offers robust protection against scratches and dents when handling trusses on the floor. As an option, SNAP Stack can be secured to the truss with two cable ties for permanent mounting.

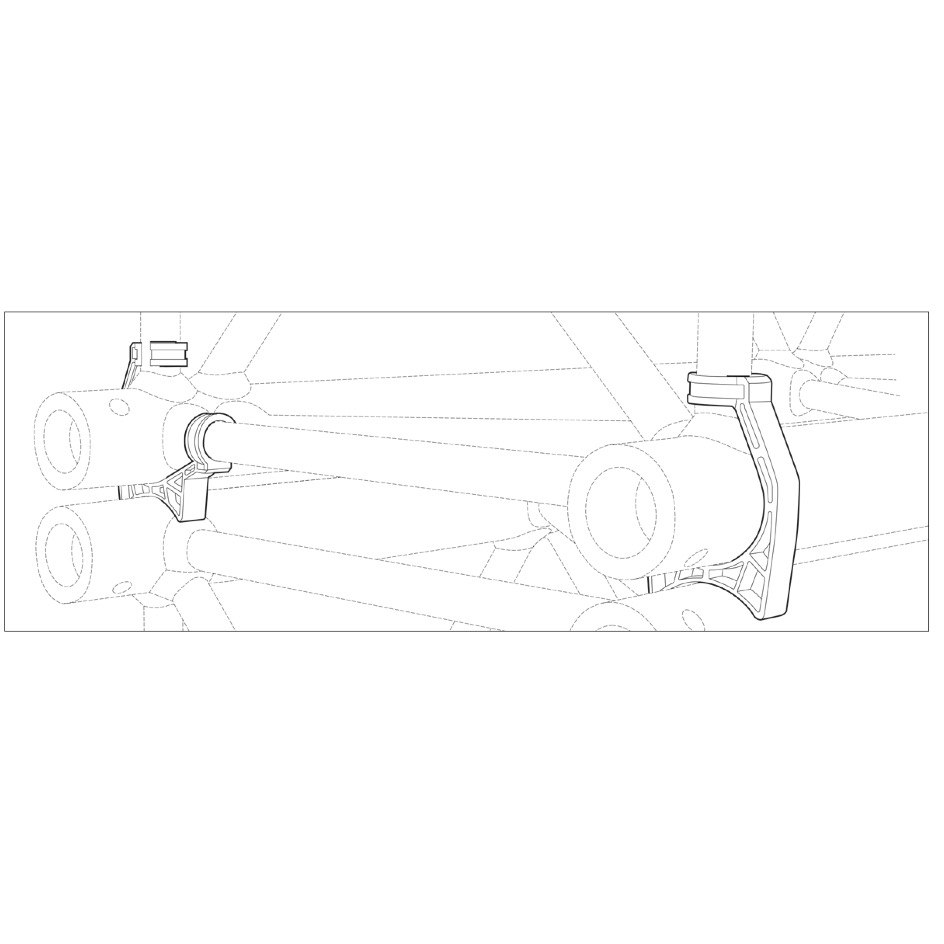

- SNAP Stack is compatible with all 4-point trusses with a 48-51 mm belt tube diameter and “box-bracing” at both ends. The stacking aid is available in two versions for bracing diameters
stacking timbers per layer, with SNAP Stack practically every truss piece stacks on its own.

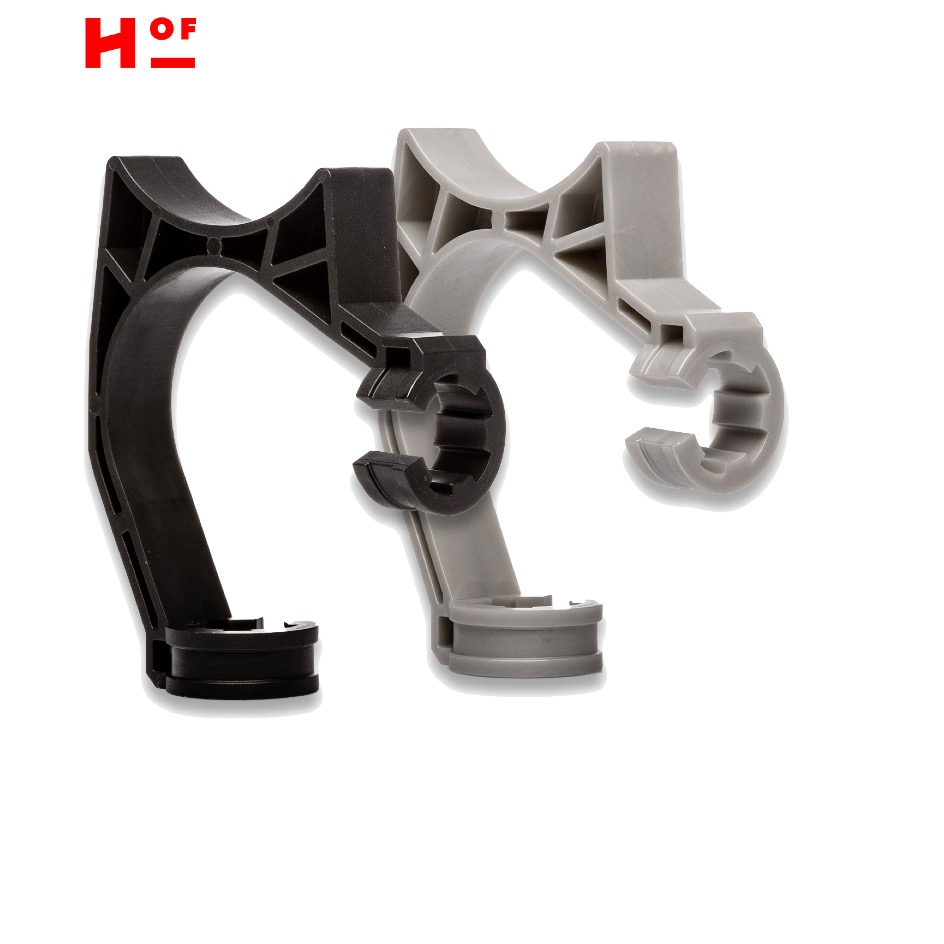

diameter 16mm and 20mm. SNAP Stack is available in black and silver to match standard trusses.
Stacking

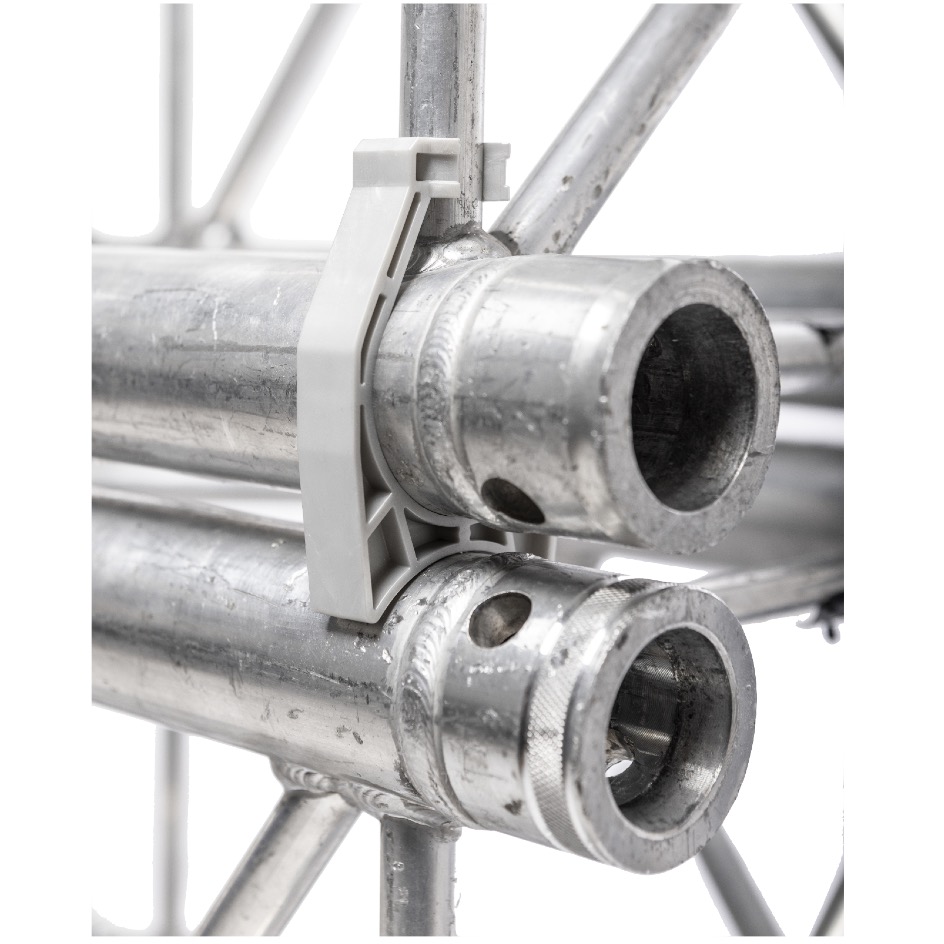

- Efficient and faster stacking of traverses without stacking timber
- Significant time saving when stacking
- saves approx. 2 cm height per layer compared to conventional stacking timber

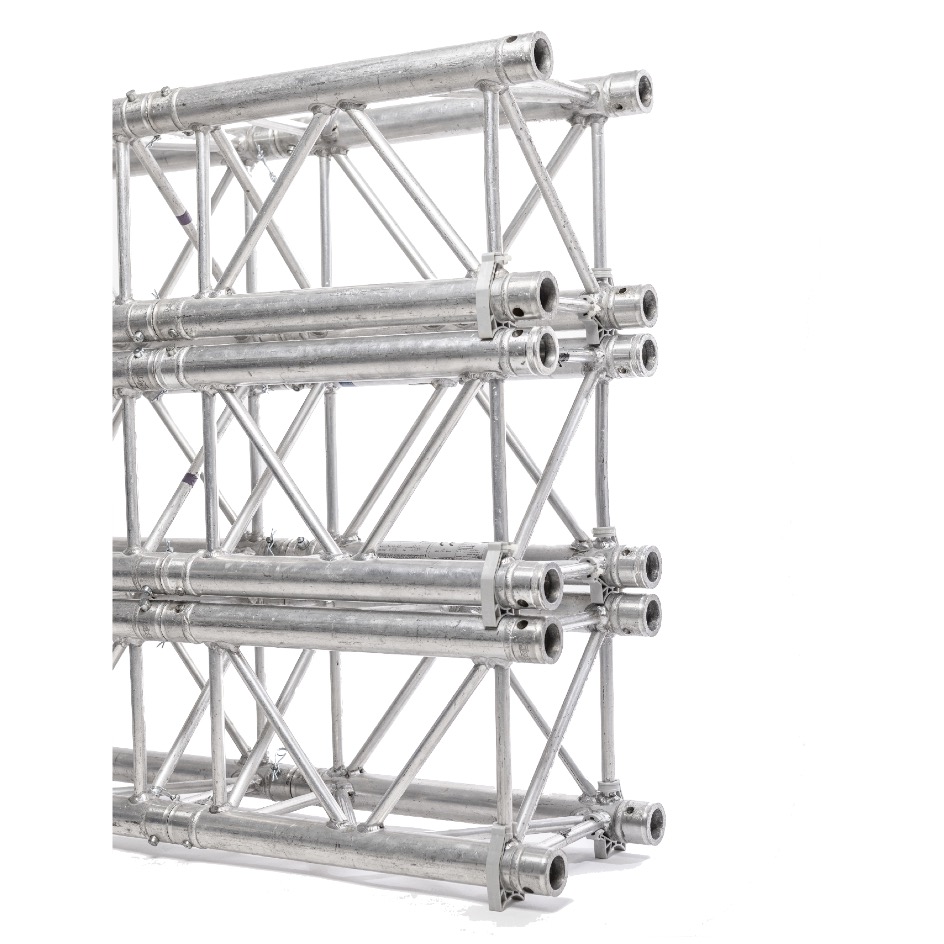

- enables different truss lengths on one dolly – each length stacks itself

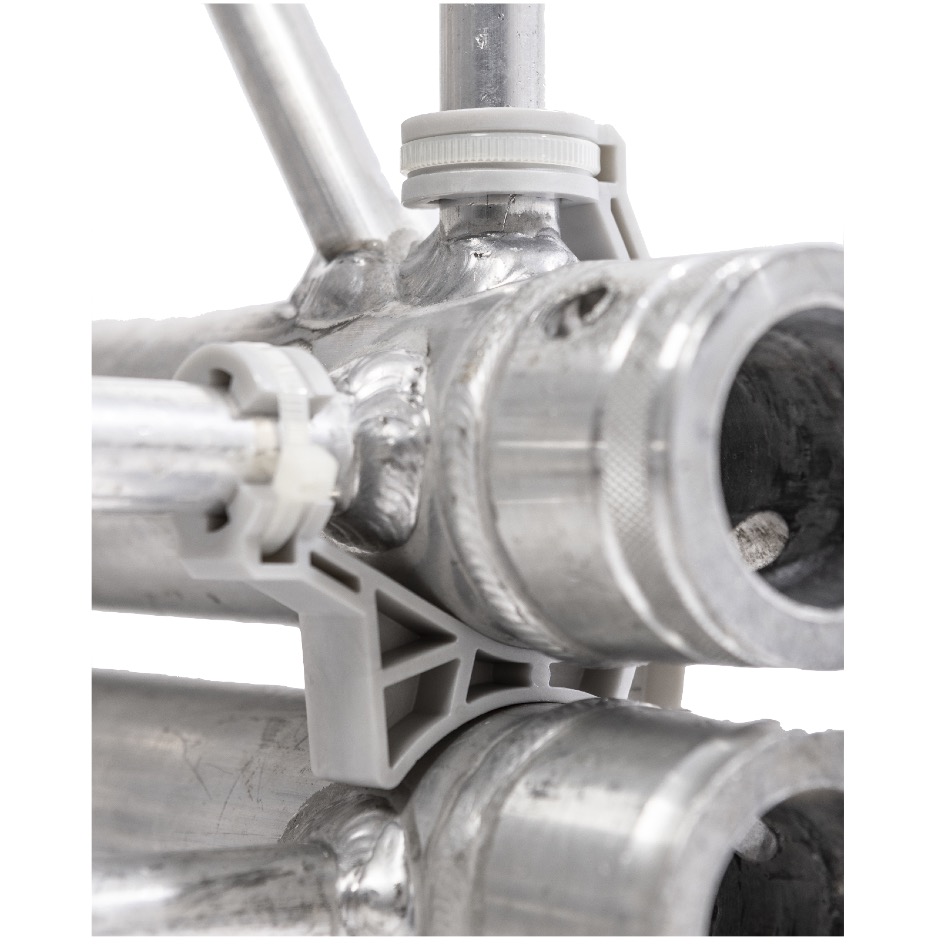

- for all 4-point traverses with “box bracing” and 16mm or 20mm bracing diameter
Protection
- Protects the crossbar when placed on the floor

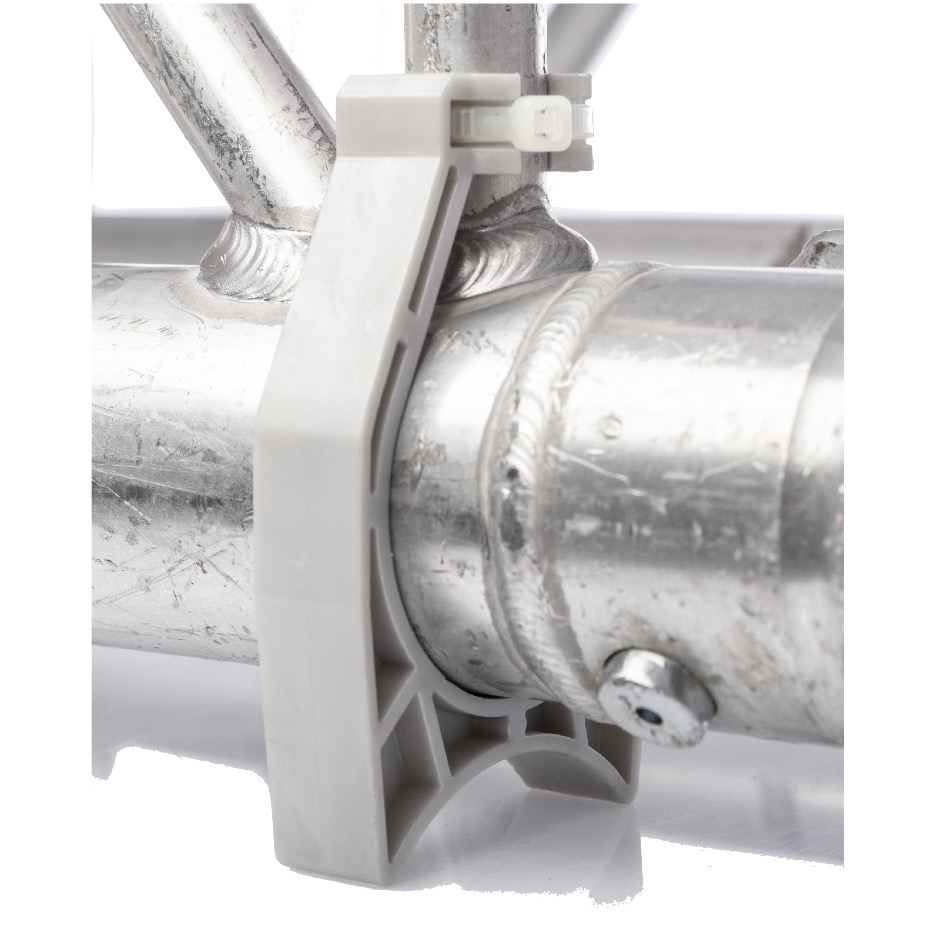

- Additional mounting protection with optional cable ties (cable tie width 3.6 mm)
- Made from durable plastic (polyamide)
Physically
– Suitable for pipe diameter 48 – 51mm
– Synthetic material (polyamide)
– Dimensions
– Main Chord Ø48mm
– Diagonal Chord Ø16mm
