Detailed description

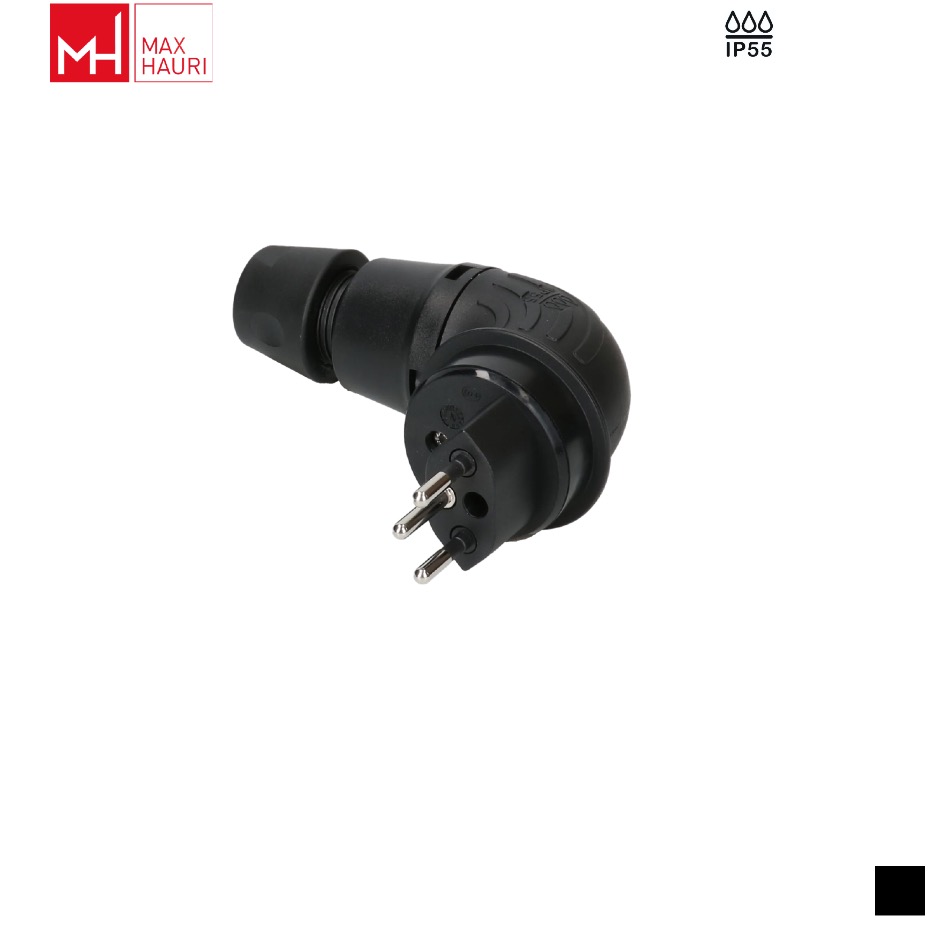

- This includes complete protection against dust and contact (IP5X) as well as protection against water jets (IPX5). Other quality features include protection against mechanical influences as well as weather and temperature resistance. The ergonomic shape also makes it easy to plug in and unplug. This black type 13 plug is suitable for manual connection to a suitable cable for individual assembly or as a replacement for damaged plugs. The integrated strain relief prevents the cable from unintentionally coming loose from the connection point. Maximum safety is guaranteed thanks to the S+ safety mark.
Physically
– Housing Polyamid (PA)
– Connector Type: Cable plug angled 90
– Connection Type: Screw contact
– Cablediameter: 6.5mm to 14mm
– IP protection IP55
– Impact strength IK07
– Color/Finish black
– Dimensions | L: 110mm | W: 100mm | H: 49,3mm
– Weight 0,095 kg
Electrically
– electrical protection class Protection Earth
– Operating voltage 230VAC
– Max. Rated Current 10A
