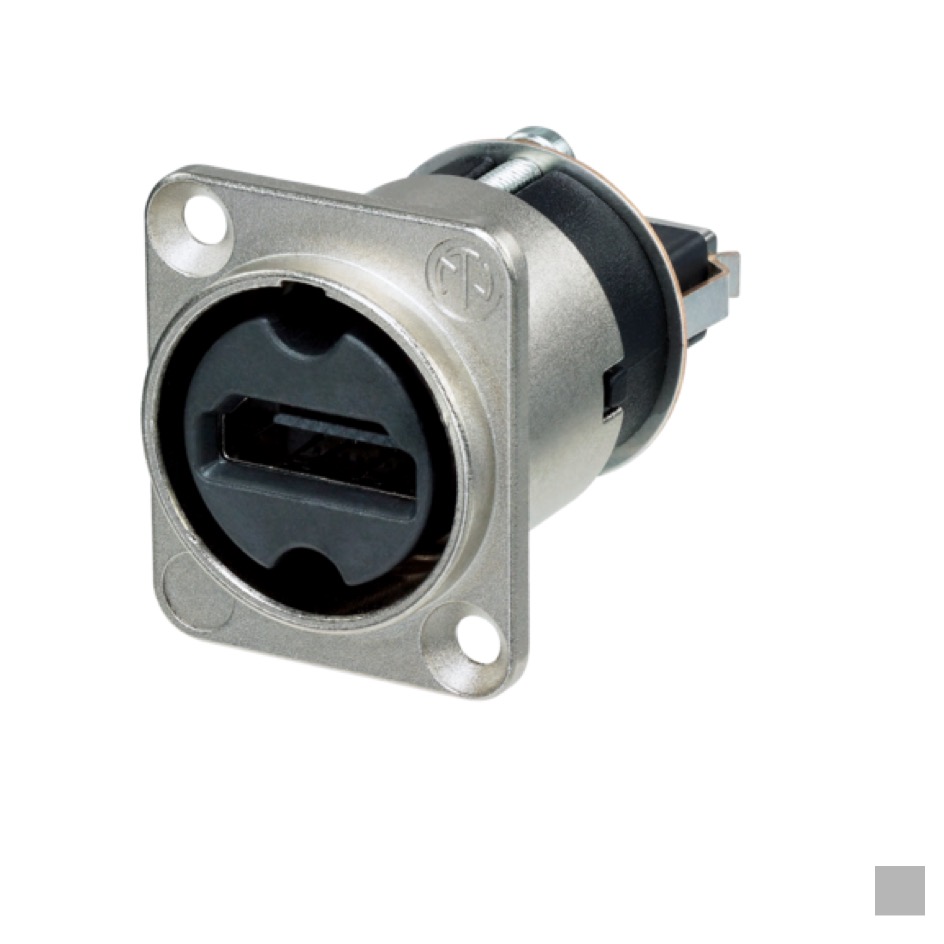

- For the transmission of all digital TV and PC video formats including high-definition video (HDTV)
- HDMI feed-through with 19-pin HDMI socket on both sides
- IP65 when plugged in with NKHDMI-* and SCDP-* seal
- Standard D-shape housing
- Removable ground connection
- Shielded system – high interference immunity and EMI protection through continuous 360-degree shielding
Physically
– Color/Finish nickel
– Dimensions | W: 26mm | H: 31mm | D: 40mm
Thermally
– Ambient temperature -25°C bis 85°C
