Detailed description

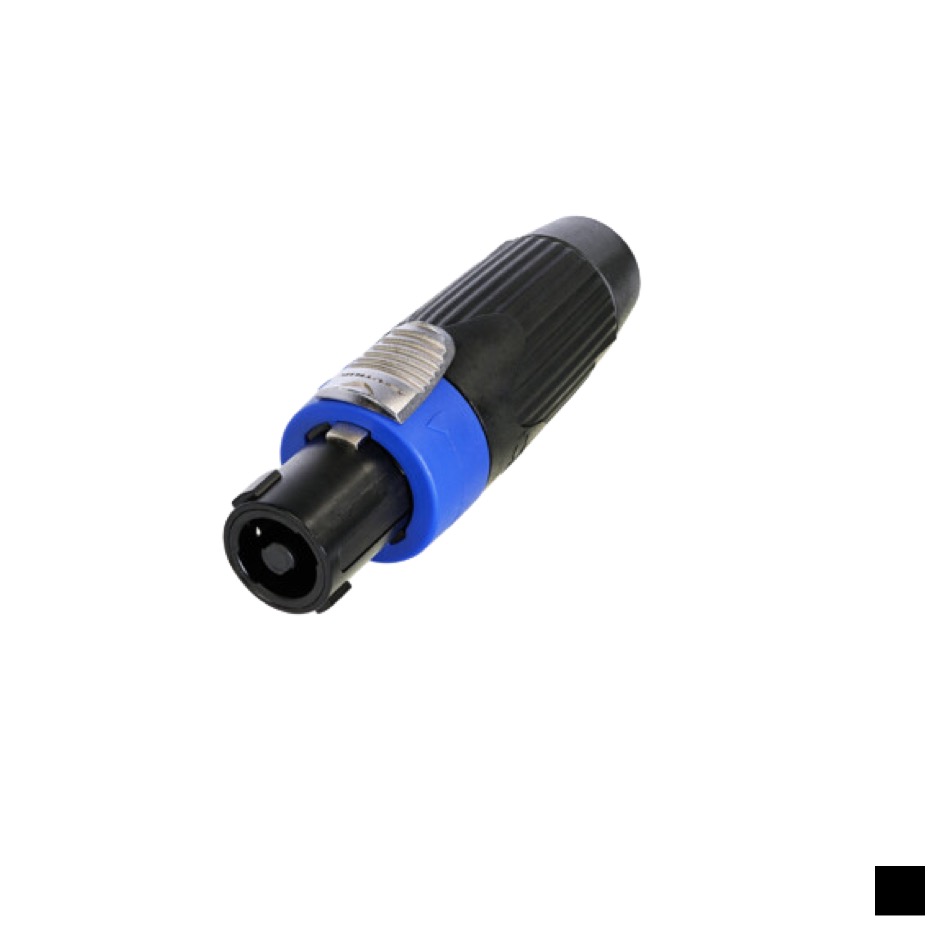

- The speakON STXX speaker connectors have been developed for the most demanding applications, especially in the outdoor and touring sector. The stable die-cast metal housing makes the connectors extremely robust.
Features
- IEC 61984 certified, therefore suitable as a component for devices certified according to IEC 62368-1
- Rated current 30 A rms
- Extremely robust metal housing and insert made of glass fiber reinforced V-0 material for demanding applications, especially in the touring sector
- Highly precise “Quick Lock” locking system
- Compatible with the complete speakON 8-pole product series.
Physically
– Zinc die-cast, nickel-plated
– Connector Type: Cable plug 4x6mm2
– Connection Type: Soldering contact
– Cablediameter: 9mm to 16mm
– IP protection IP50 (mated)
– Color/Finish black
Thermally
– Ambient temperature -30°C – 80°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 250V AC This product is expressly not intended for use as a mains or power supply plug!
– Max. Rated Current 30A
– Wire cross section: 6mm2
