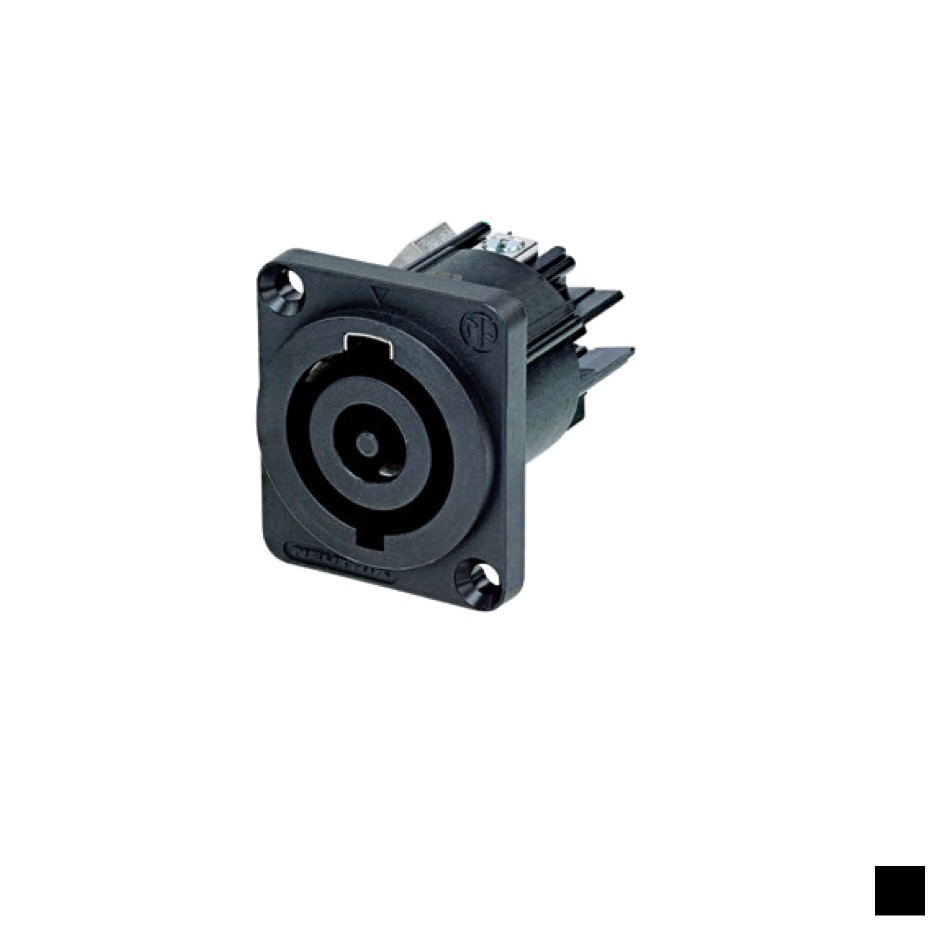

- The series is a non-standard 3-pole connection system without switching power for powerful distribution systems and supplies professional audio and lighting equipment and installations. The connectors have contacts for phase, neutral and ground with a rated current of 32 A and a rated voltage of 250 V.
Features
- 250V AC, 32 A single-phase (for 32°C ambient temperature).
- Leading ground contact
- Quick and easy locking system to prevent accidental unplugging
- Screw terminals for cable cores from 2.5 to 6.0 mm² (AWG 14 – 10)
- Extremely rugged and reliable
- VDE, UL, cUL and JET certified
- IEC 62368-1 conform up to 4000 W
Physically
– by Standard IEC 62368-1 conform up to 4000 W
– Connector Type: Chassis Male 3G2.5
– Connection Type: Screw contact
– IP protection IP20
– Color/Finish black
– Dimensions | W: 32mm | H: 37mm | D: 40mm | Ø: 30mm
Thermally
– Ambient temperature -25°C bis 70°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 250VAC 50/60Hz
– Max. Rated Current 32A
– Wire cross section: 2.5mm2 to 6mm2
