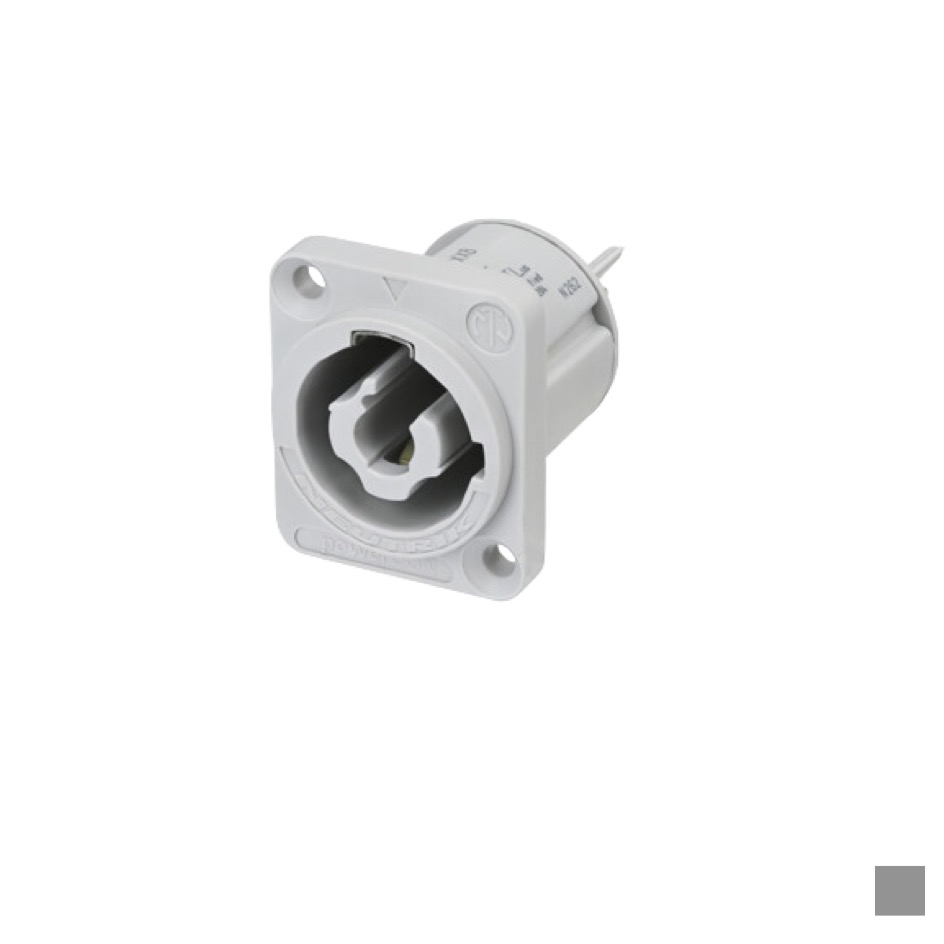

Neutrik powerCON Chassis Female, Power-OUT NAC3MPXXB, Faston 4.8×0.5 3×2.5, grey

Description

Downloads

User Manual
Declaration of Conformity (DoC)
Manufacturers Page
Technical Drawing (.pdf)
Technical Drawing (.dxf or .dwg)
Technical Drawing 3D ( (.stp)

• Lockable single-phase power plug-in device.
• Drop-in replacement for NAC3MPA-1; mates with NAC3FCA cable connectors
• Certified to IEC 60320-1 & UL 60320-1
• 3 contacts for phase, neutral and leading ground contact
• Certified to UL-1977 & CAN/CSA-C22.2 No. 182.3
• Quick and easy twist lock interlock. Power-In (blue) and Power-Out (gray) version with different keying to prevent incorrect insertion.
• Extremely robust and reliableIEC 62368-1 compliant

Physically

– by Standard EN 60320-1: 16 A 250 V AC
– Connector Type: Chassis Female 3×2.5
– Connection Type: Faston 4.8×0.5
– IP protection IP20
– Color/Finish grey
– Dimensions | W: 23mm | H: 31mm | D: 31mm | Ø: 24mm

Thermally

– Ambient temperature -30°C bis 80°C

Electrically

– electrical protection class Protection Earth
– Operating voltage 250VAC 50/60Hz
– Max. Rated Current 16 (20)A
– Wire cross section: 2.5mm²
