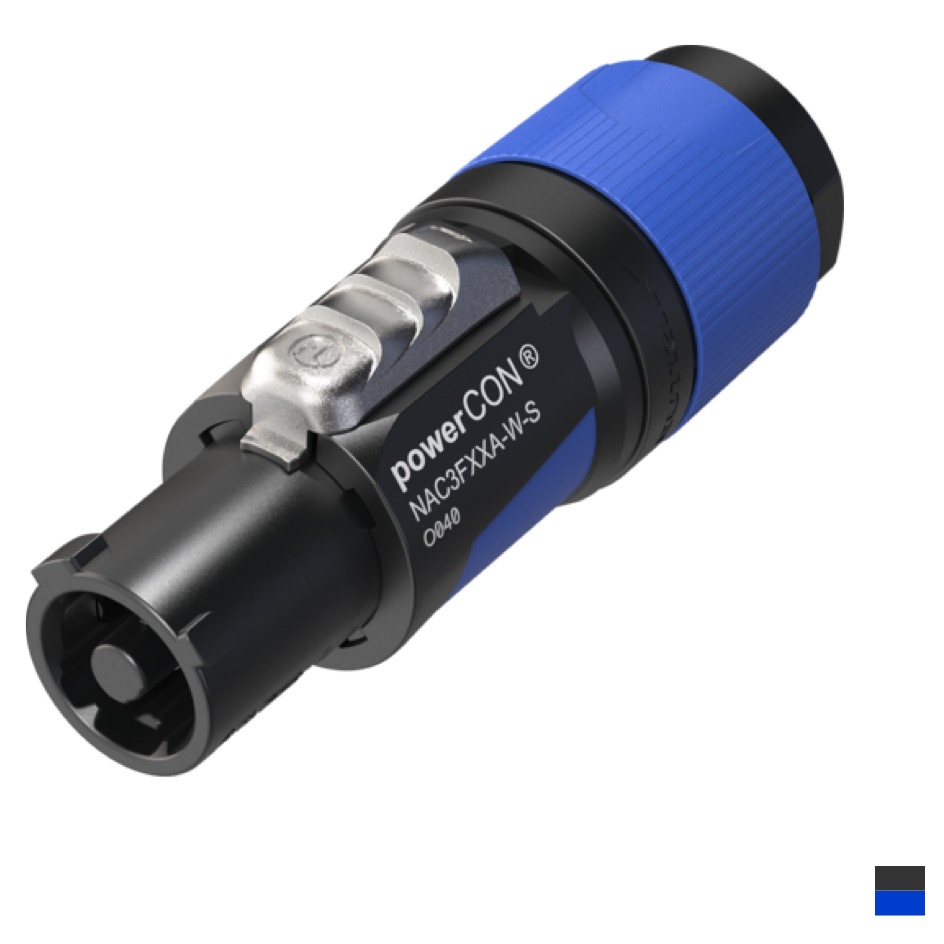

- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, therefore approved as part of cable sets according to IEC 60799 / UL 817 and devices according to IEC 62368-1
- Ergonomic design with non-slip two-component housing
- Power-In (blue) and Power-Out (gray) versions with different coding to avoid confusion
- Unique NEUTRIK locking socket and strain relief for cable diameters from 6 mm to 12 mm
- Easy installation as strain relief mechanically locks to insert and aligns with housing
- Superior NEUTRIK quality standard, extremely robust and reliable
- Simple and reliable twist lock system
- Improved kink protection due to two-component bushing
Physically
– by Standard EN 60320-1: 16 A 250 V AC
– Connector Type: Line Female | H05VV-F 3×1.5
– Connection Type: Screw contact
– Cablediameter: 6mm to 12mm
– IP protection IP20
– Color/Finish blackblue
– Dimensions | L: 82mm | Ø: 30mm
Thermally
– Ambient temperature -30°C bis 80°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 250VAC 50/60Hz
– Max. Rated Current 16A
– Wire cross section: 1.5mm2
