- With powerCON TRUE1 TOP, IEC connectors can be replaced when a particularly robust connection with interlocking is required to ensure a safe supply.
Features
- Specially sealed power connector for heavy duty in harsh environment with high requirements.
- IP65, UL50E (NEMA4) rating in combination with SCNAC-FPX (mated or closed cap)
- UV resistant material
- Mains connector pluggable under load
- Simple and reliable twist-lock latching system
- Extremely rugged and reliable
- IEC 60320 certified (VDE, ENEC)
- UL498 certified
Physically
– by Standard IEC 60320 zertifiziert (VDE, ENEC)

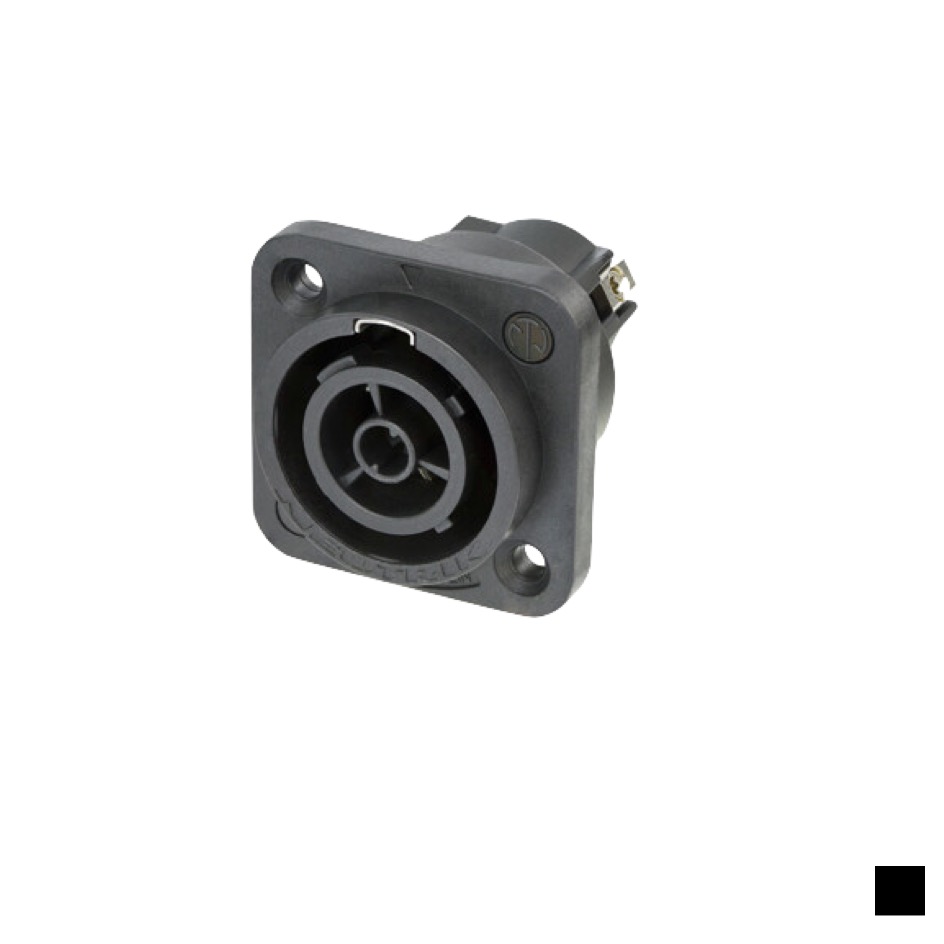

– Connector Type: Chassis Female 3G2.5
– Connection Type: Screw contact
– IP protection IP65, UL50E (NEMA4)
– Color/Finish black
– Dimensions | W: 35,4mm | H: 35,4mm | D: 34mm | Ø: 38mm
Thermally
– Ambient temperature -30°C bis 80°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 250VAC 50/60Hz
– Max. Rated Current 16A
– Wire cross section: 2.5mm2
