- With powerCON TRUE1 TOP, IEC connectors can be replaced when a particularly robust connection with interlocking is required to ensure a safe supply.
Features
- IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap)
- Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-FPX)
- Uses high impact UV-resistant materials
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL498 certified
Physically
– by Standard IEC 60320 zertifiziert (VDE, ENEC)

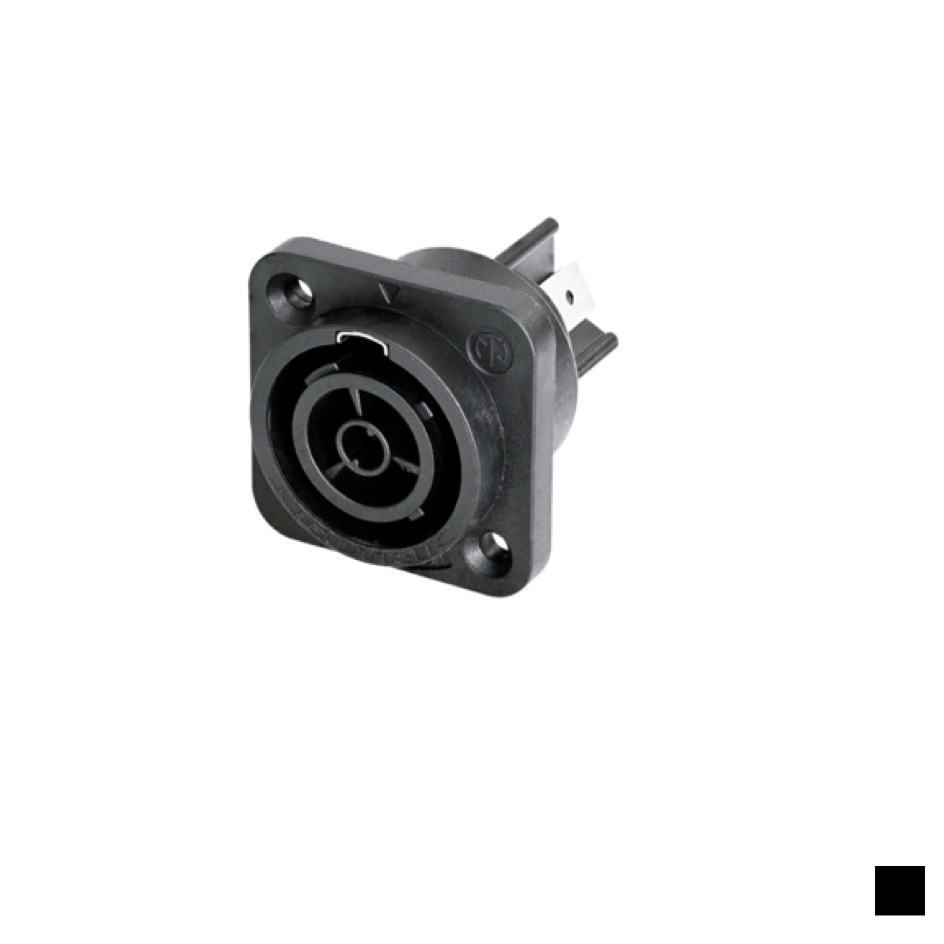

– Connector Type: Chassis Female 3G2.5
– Connection Type: Faston 6.3×0.8
– IP protection IP65, UL50E (NEMA4)
– Color/Finish black
– Dimensions | W: 35,4mm | H: 35,4mm | D: 34mm | Ø: 38mm
Thermally
– Ambient temperature -30°C bis 80°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 250VAC 50/60Hz
– Max. Rated Current 16A
– Wire cross section: 2.5mm2
