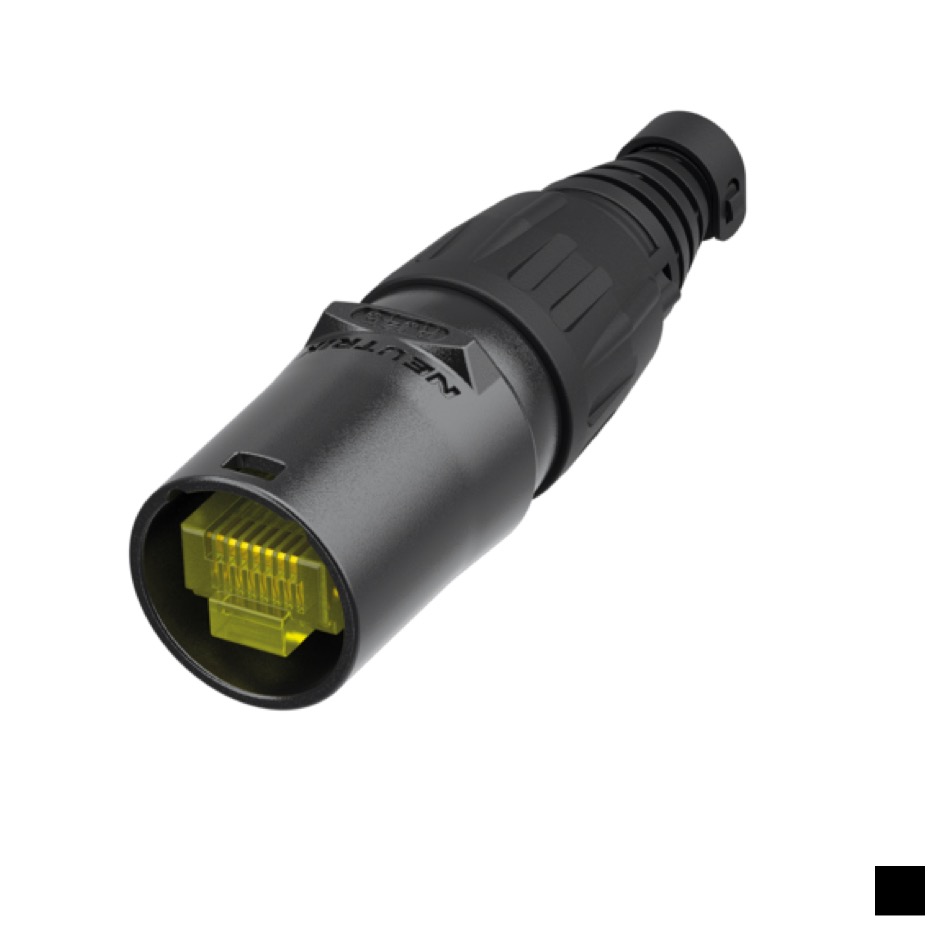

- The NE8MX-B consists of a black chrome housing, collet chuck and bend protection as well as two inserts for cable diameters up to 8 mm. Half shells for fixing the RJ45 as with the predecessor NE8MC-B are no longer necessary. This simplifies and shortens assembly.
- The NE8MX-B upgrades conventional RJ45 plugs to an extremely robust and lockable solution.
- Note: A robust alternative to RJ45 are our 8 + 2 XLR
- Attention! Not compatible with the CAT6 panel jacks NE8FDY-C6 and NE8FDY-C6-B.
Features
- The RJ45 system for harsh environments with high loads
- Suitable for all common RJ45s (see list under “Downloads”)
- Robust die-cast housing and unique collet chuck for strain relief
- Optimum protection for Ethernet connections with fragile standard RJ45s
- Flattened marking on the housing for better orientation
- Suitable for commercially available pre-assembled RJ45 cables
- Color coding: BSE kink protection available in 9 different colors as an accessory
Physically
– Cablediameter: 4.5mm to 8mm
– Color/Finish black
Thermally
– Ambient temperature -40°C bis 70°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
