Physically

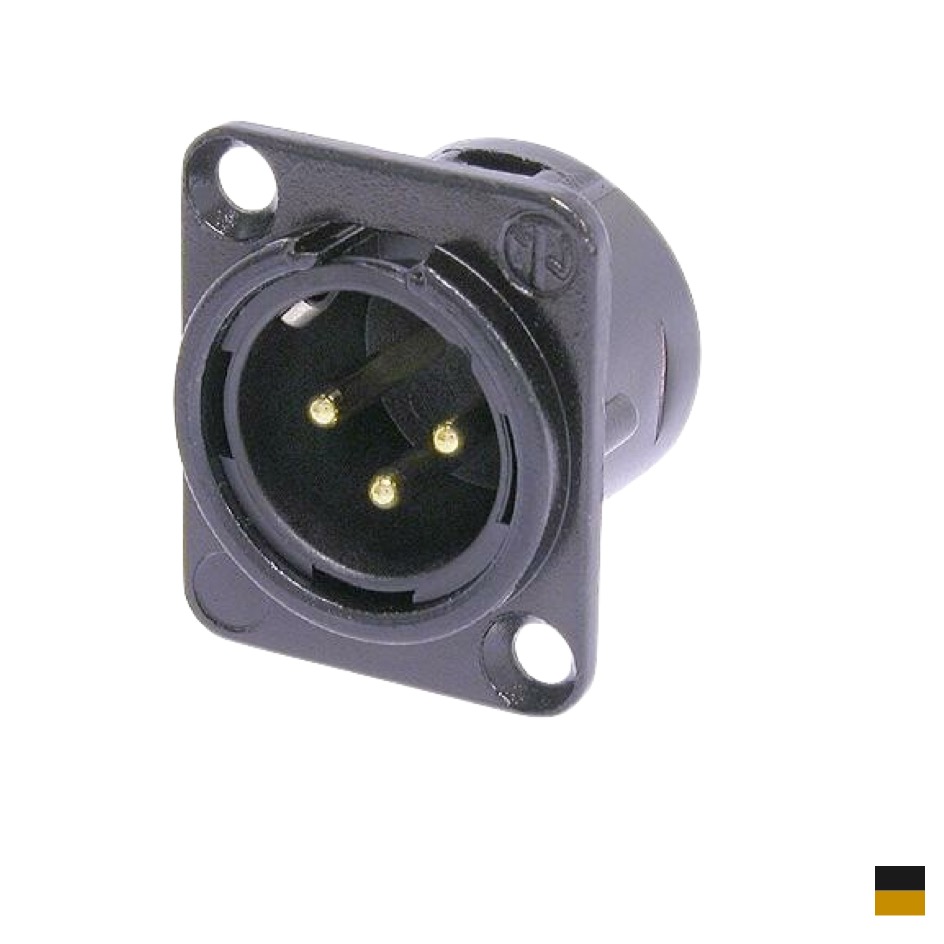

– Uniform D-metal housing for panel mounting
– Connector Type: Chassis Male
– Connection Type: Soldering contact
– Color/Finish chromeblack, gold plated
– Dimensions | W: 26mm | H: 31mm | D: 16.3mm | Ø: 23,6mm
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage < 50V
– Max. Rated Current 16A
