Detailed description

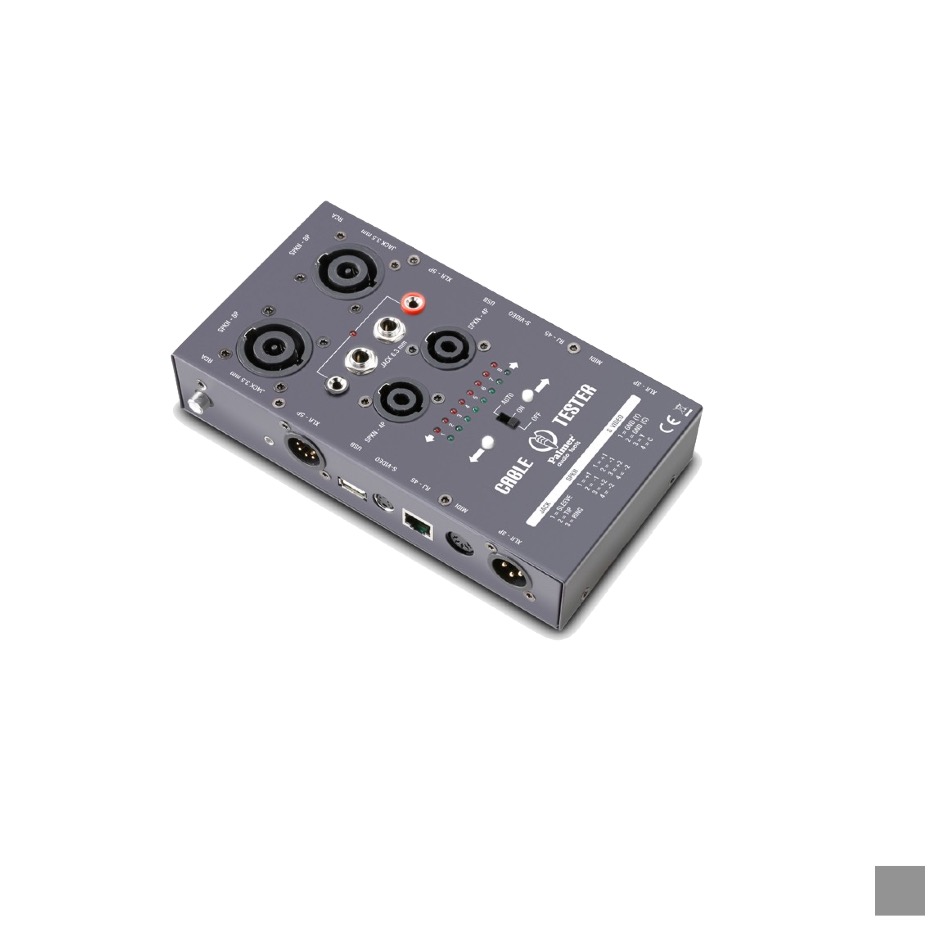

- The AHMCTXL V2 tests cables with Speakon 4-pin and 8-pin, XLR 3-pin and 5-pin, 3.5 mm and 6.35 mm mono and stereo jack, RCA, DIN/MIDI, USB, RJ-45 and S-Video connector types.
- It is supplied with two test probes that allow troubleshooting of cables with other connector formats or the cabling of studios and installations.
- The compact multi-cable tester AHMCTXL V2 is suitable for both professional and home use and has a robust steel housing with powder coating for long-lasting, reliable use.
Physically
– Sheet steel, powder-coated
– Color/Finish grey
– Dimensions | W: 120mm | H: 40mm | D: 200mm
– Weight 0,95 kg
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 9V DC block battery
Control
Inout
Jack 3.5mm
Jack 6.3mm
RCA
RJ45 (CAT
S-Video
Speakon NL4
Speakon NL8
USB JACK
XLR3
XLR5
Output
Jack 3.5mm
Jack 6.3mm
RCA
RJ45 (CAT
S-Video
Speakon NL4
Speakon NL8
USB JACK
XLR3
XLR5
