Description
Detailed description

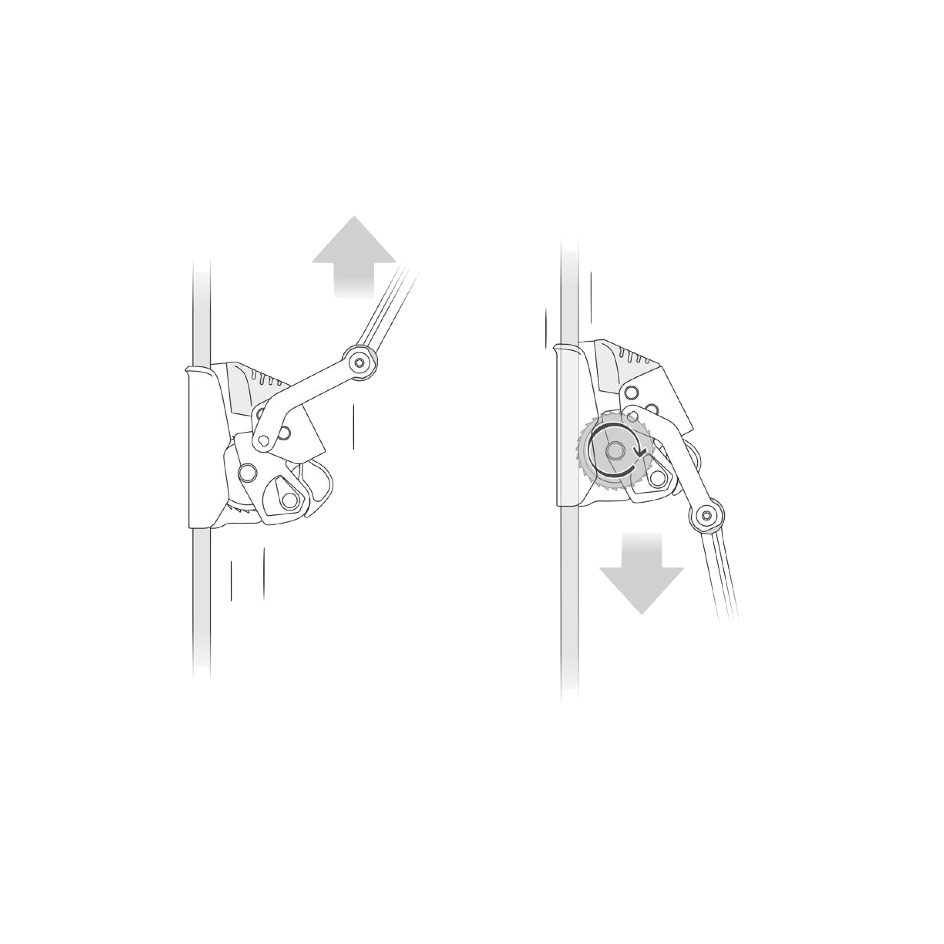

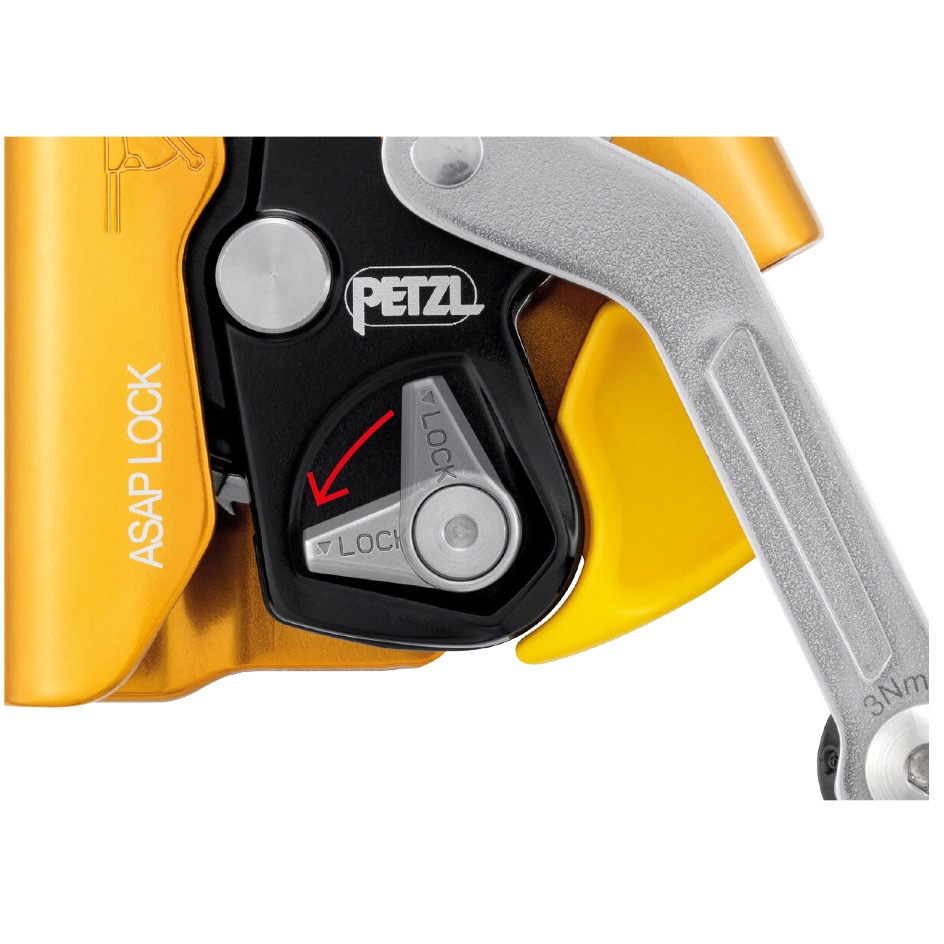

- The ASAP LOCK is an essential component of your fall protection system and accompanies you in your daily work as a worker at height in areas that are difficult to access. During normal use while moving along the rope, the device moves independently without manual intervention. In the event of a fall or an uncontrolled descent (more than two meters per second), the device locks onto the rope and catches you. The integrated LOCK function allows you to stop the device to reduce your fall height. The connecting arm makes it easier to pass intermediate anchors, as it protects the device from falling, and the safety locks facilitate the insertion of the rope. To ensure that the ASAP LOCK is also ready for use in rescue situations, it can be used in combination with the ASAP’SORBER AXESS fall absorber.
Rope-guided fall arrest device

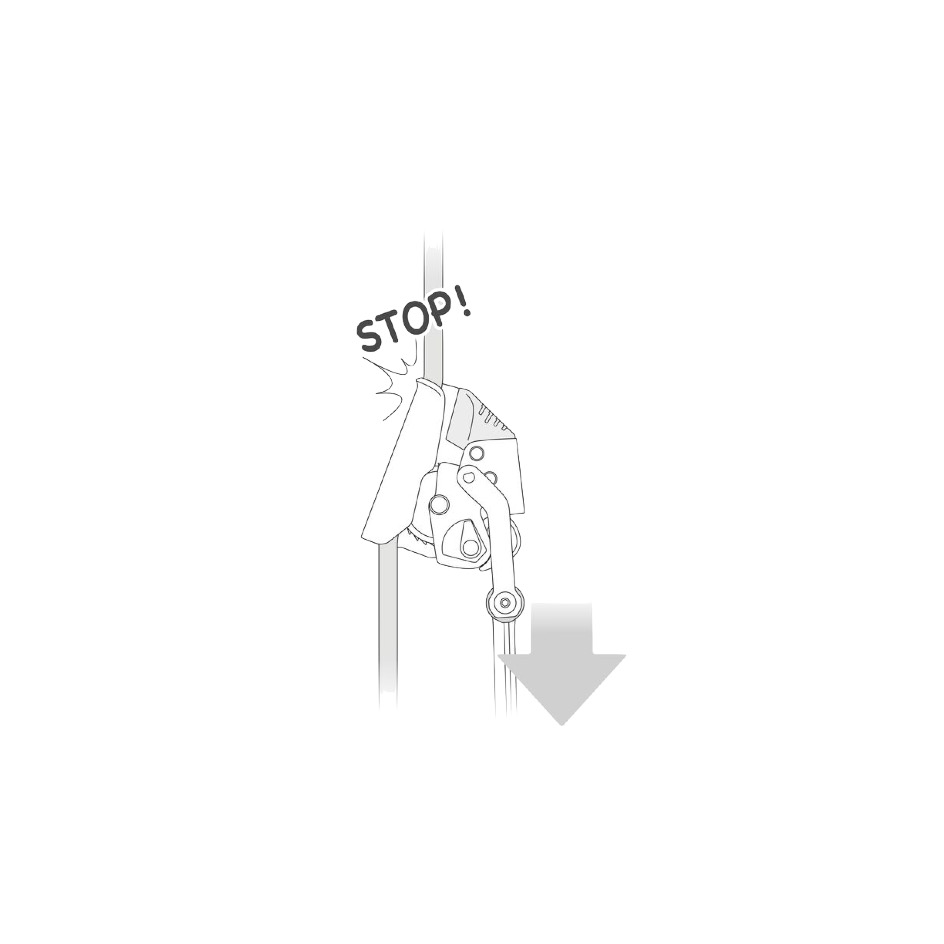

- Catches falls and stops uncontrolled rappelling at speeds exceeding two meters per second.
- Locks onto the rope even if you grab the device during the fall.
- Works on vertical, horizontal, or inclined ropes.
- Compatible with a wide range of ropes from 10 to 13 mm in diameter.
- Remains effective regardless of the condition of the rope (icy, muddy rope) thanks to its gear system.
Compact and easy to use
- Can be easily attached and detached anywhere along the rope.
- Glides up and down the rope without intervention.
- The safety locks make it easy to insert and remove the rope.

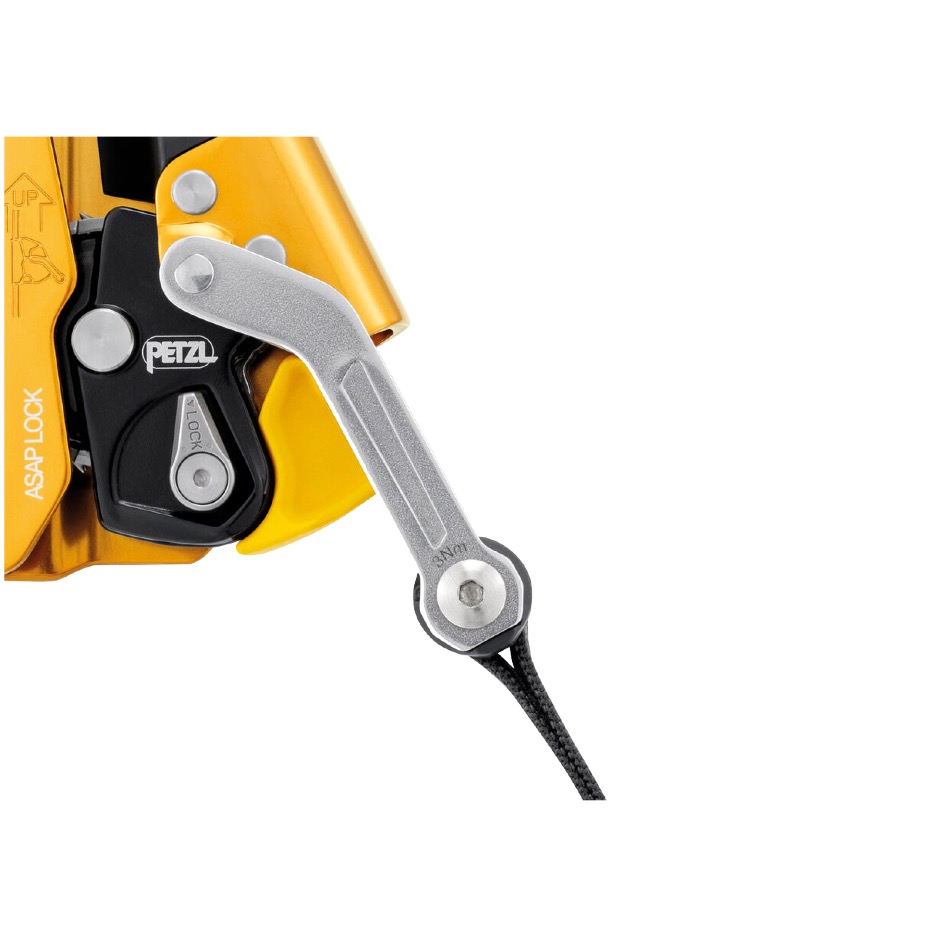

- The connecting arm protects against loss of the device when passing through intermediate anchors.
Can be used together with the following elements
- One ASAP’SORBER 20 or 40 fall arrestor for use by one person weighing up to 140 kg.
- One ASAP’SORBER AXESS fall arrestor for use in rescue operations with two people weighing up to 250 kg.
Features
- The ASAP LOCK can be used as a backup device in a rope access system or as the primary fall arrest device in a fall arrest system.
- The ASAP LOCK is also available as a pre-assembled kit for an immediate solution, together with an ASAP’SORBER AXESS or ASAP’SORBER 20/40 fall absorber and an OK TRIACT-LOCK or Bm’D TRIACT-LOCK lanyard.

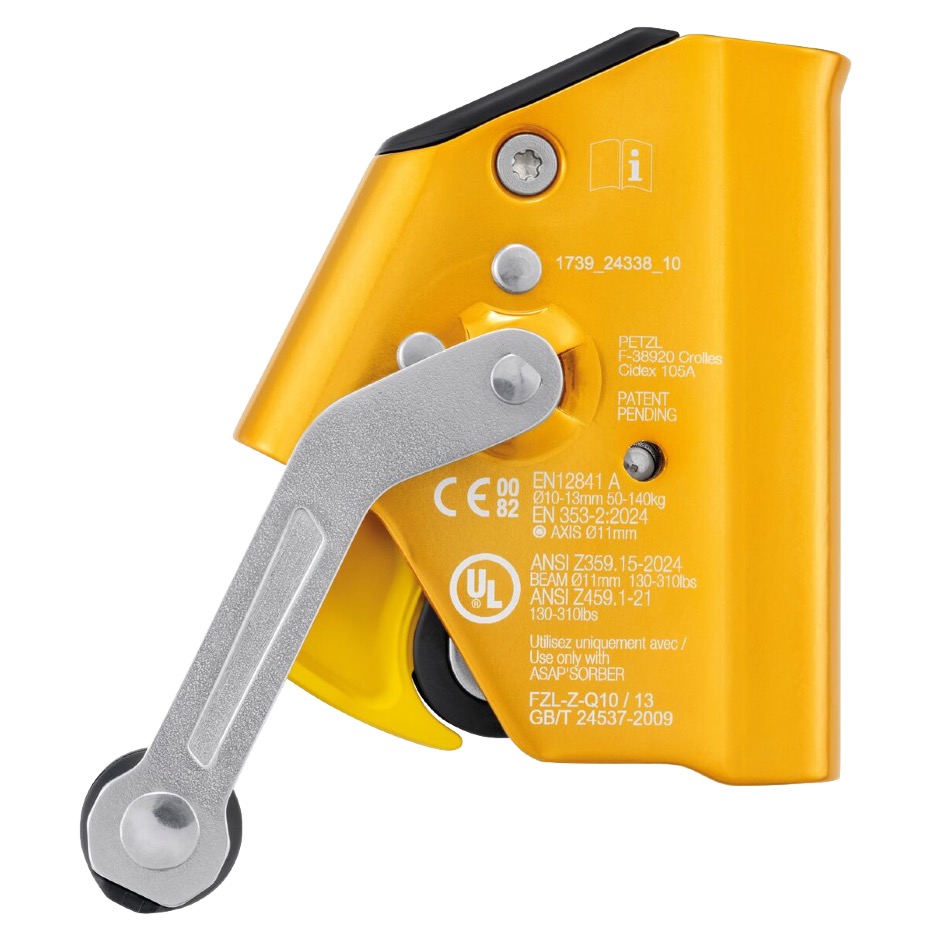

- CE EN 12841 Type A when used with an ASAP’SORBER 20/40 or ASAP’SORBER AXESS fall absorber, a CE EN 1891 Type A rope from 10 to 13 mm, and an OK TRIACT-LOCK carabiner
- CE EN 353-2 when used with an ASAP’SORBER 20/40 or ASAP’SORBER AXESS fall absorber, an AXIS rope 11 mm with two sewn end connections and an OK TRIACT-LOCK carabiner
- ANSI Z359.15 when used with an ASAP’SORBER 20/40 or ASAP’SORBER AXESS fall absorber, an 11 mm BEAM rope with two sewn end connections, and a Bm’D TRIACT-LOCK carabiner
Physically
– Rope Diameter 10-13mm
– by Standard CE EN 12278, NFPA 2500 Technical Use, UKCA
– Housing Aluminum, stainless steel, polyamide
– Color/Finish yellowblack
– Weight 0,19 kg
