Network SwitchEZ-User configurable, high-throughput Gigabit Switch. Simultaneously separate and distribute up to five discrete networks – e.g lighting, audio, media, content, console, communications – with a few button presses Two EZ-LANs do the work of up to 8 unmanaged Gigabit switches
In: powerCON TRUE1 Chassis
Out: powerCON TRUE1 Chassis | 100 – 240VAC 50/60Hz | 30W | LAN IN: 02 x Neutrik opticalCON QUAD, 02 x Neutrik etherCON | AES67, ArtNet, Dante, GreenGo, HippoNet, HogNet, Livewire, MA-Net 2/3, Q-LAN, RAVENNA, RDMNet, sACN, etc. | LAN OUT: 14 x Neutrik etherCON (08 x PoE)
PoE Standard 802.3af and 802.3at
Rack-mount enclosure 19 inch | 2U
Dimensions (mm) | T: 305 | B: 483 | H: 90 | 4,9kg
Downloads
User Manual
System Diagram
Specification
Manufacturers Page
Detailed description

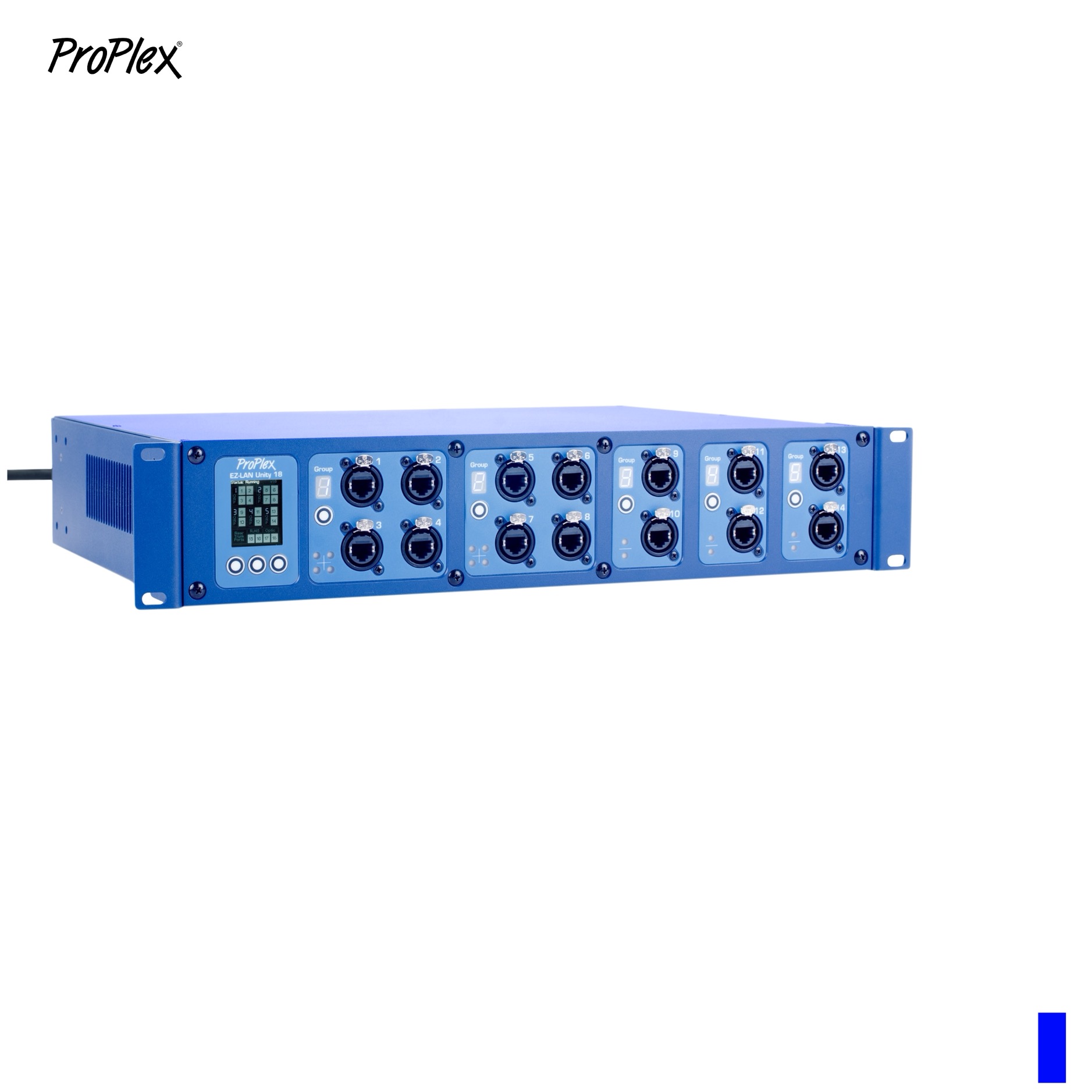

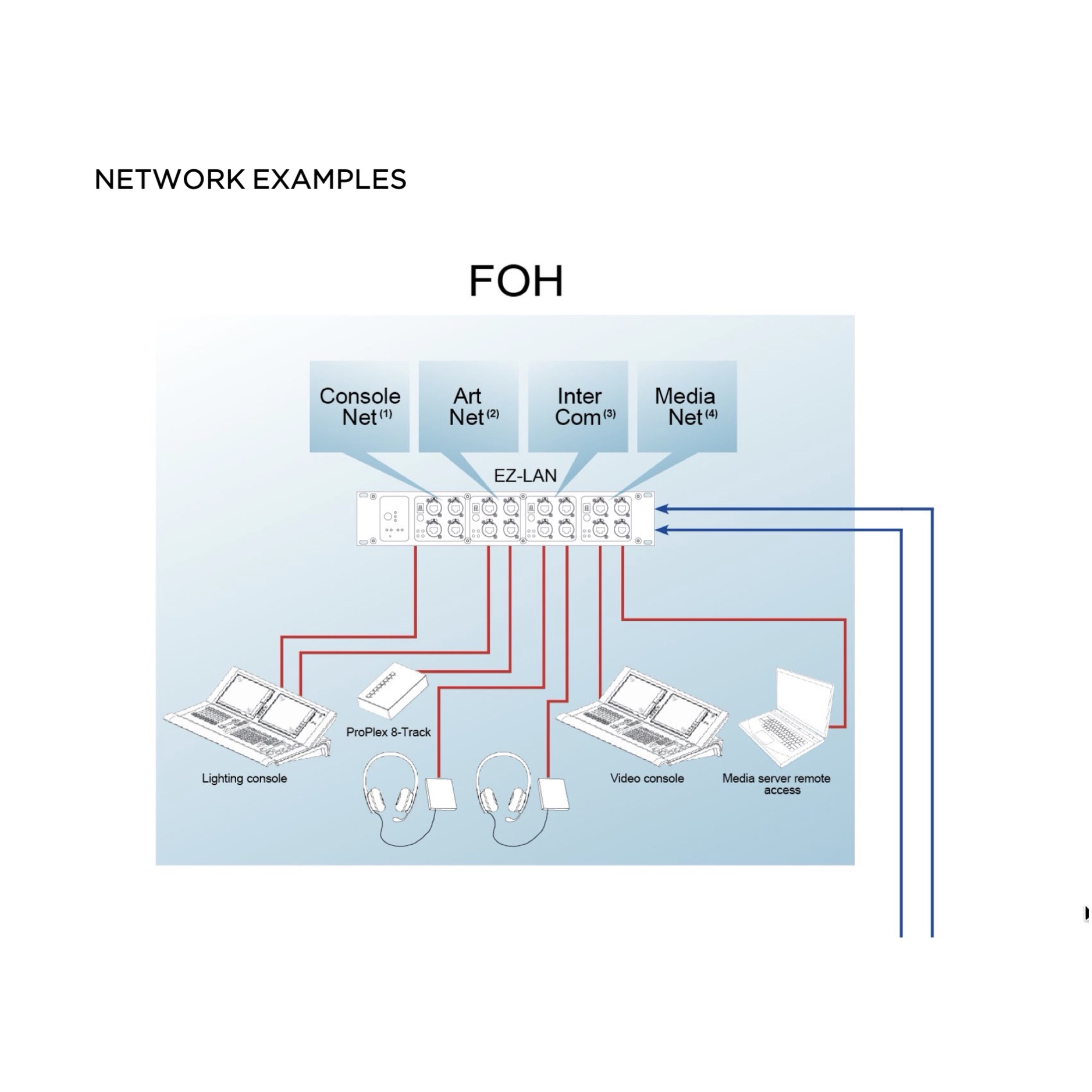

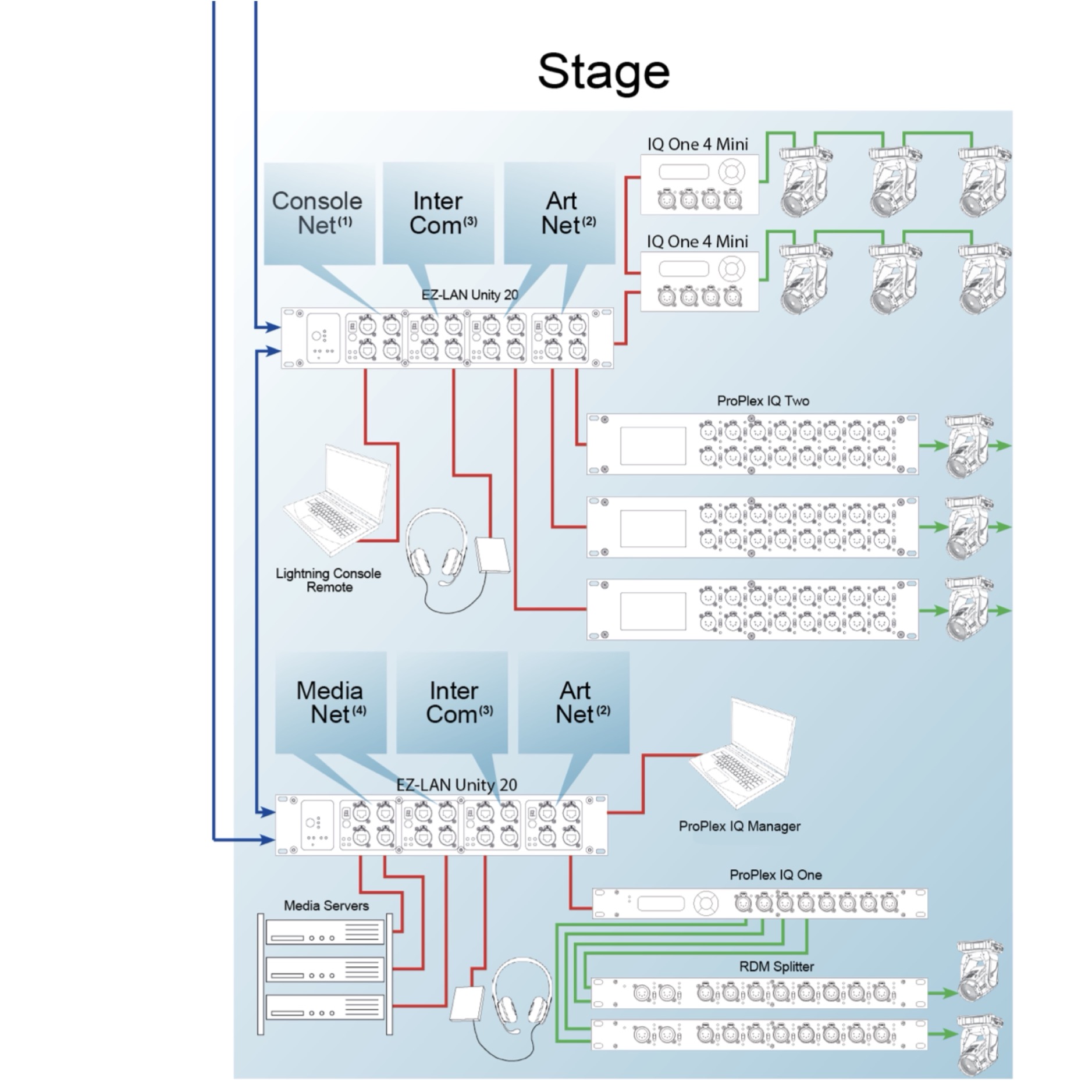

- EZ-LAN makes today’s complex show networking easier and accessible for everyone. These simple to operate yet powerful Gigabit Ethernet switches distribute up to five discrete networks – lighting, audio, content, server, console, or communications – quickly, effortlessly, and simultaneously.
- Users untrained in the complexities of managed networking can easily isolate networks and access and change VLAN assignments with a single button press.
- With 14 ports, assignable in up to five separate groups, EZ-LAN is a revolutionary addition to the ProPlex Data Distribution range of multiple format data management systems, all designed and built to withstand “Life on the Road.”

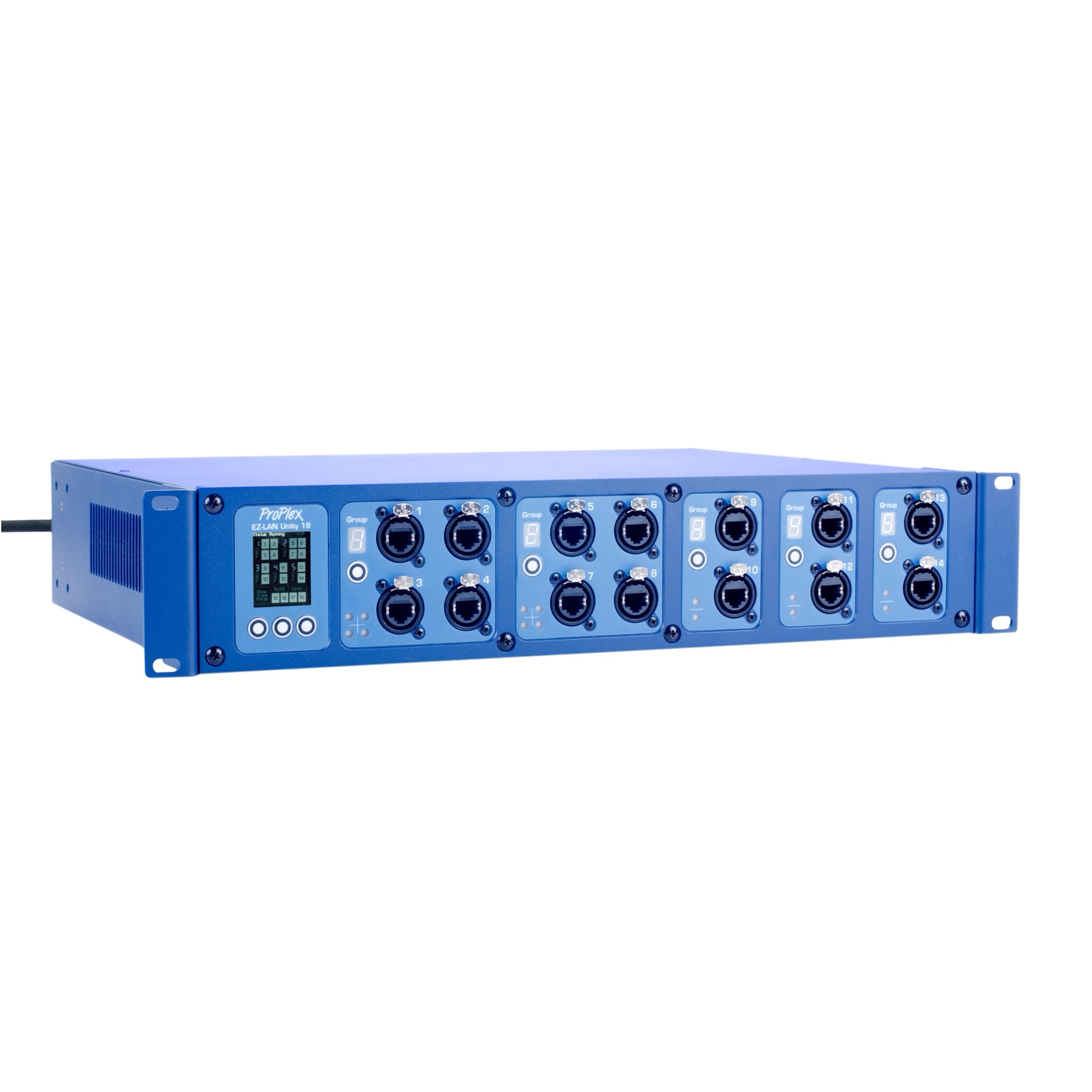

Hardware

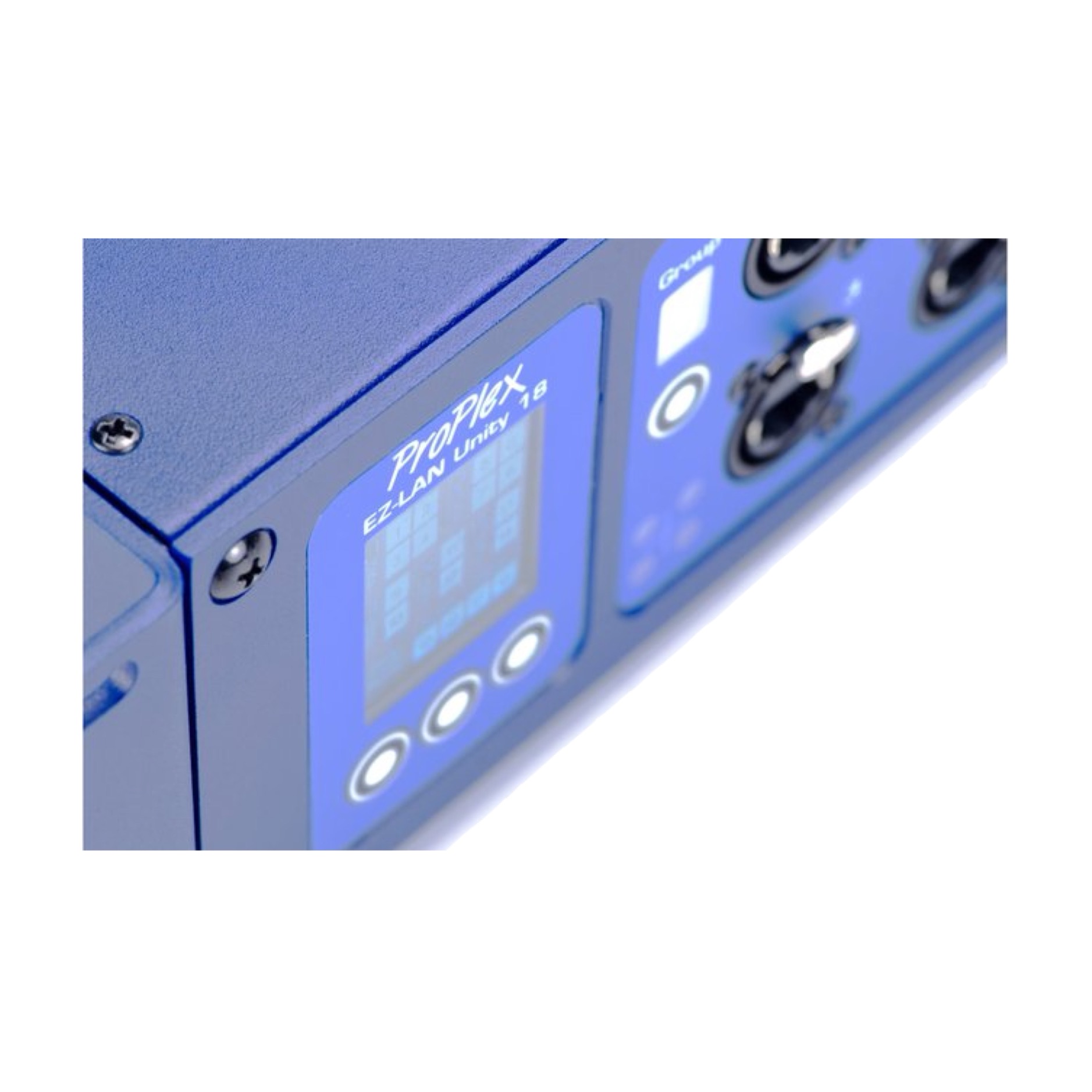

- 1.8“ LCD Display

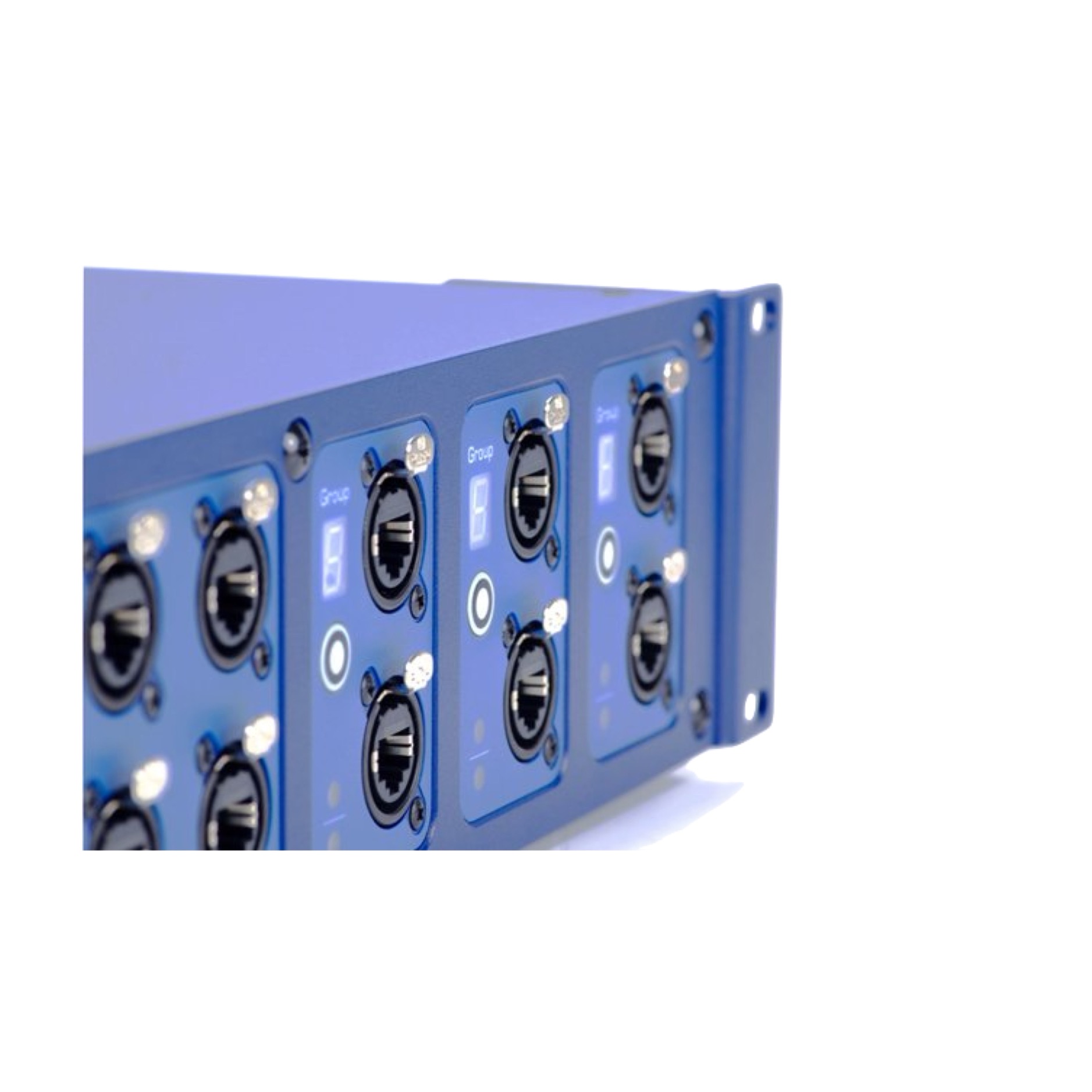

- Each Ethernet port has status LEDs that indicate data activity (IN or OUT).
- If the status LED is blinking, the Ethernet port is receiving signal.
- If the status LED is not blinking, the Ethernet port is not receiving signal.
- All ports have separate optical and galvanic isolation.
- Ethernet is 10/100/1000 Base-TX with auto-negotiation.
Physically
– Rack-mount enclosure 19 inch | 2U
– Color/Finish blue
– Dimensions | W: 483mm | H: 90mm | D: 305mm
– Weight 4,9 kg
Thermally
– Ambient temperature -20°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 30W
Power connector input
powerCON TRUE1 Chassis
Power connector output
powerCON TRUE1 Chassis
Network
– Protocol AES67, ArtNet, Dante, GreenGo, HippoNet, HogNet, Livewire, MA-Net 2/3, Q-LAN, RAVENNA, RDMNet, sACN, etc.
– Standard PoE 802.3af and 802.3at
Input

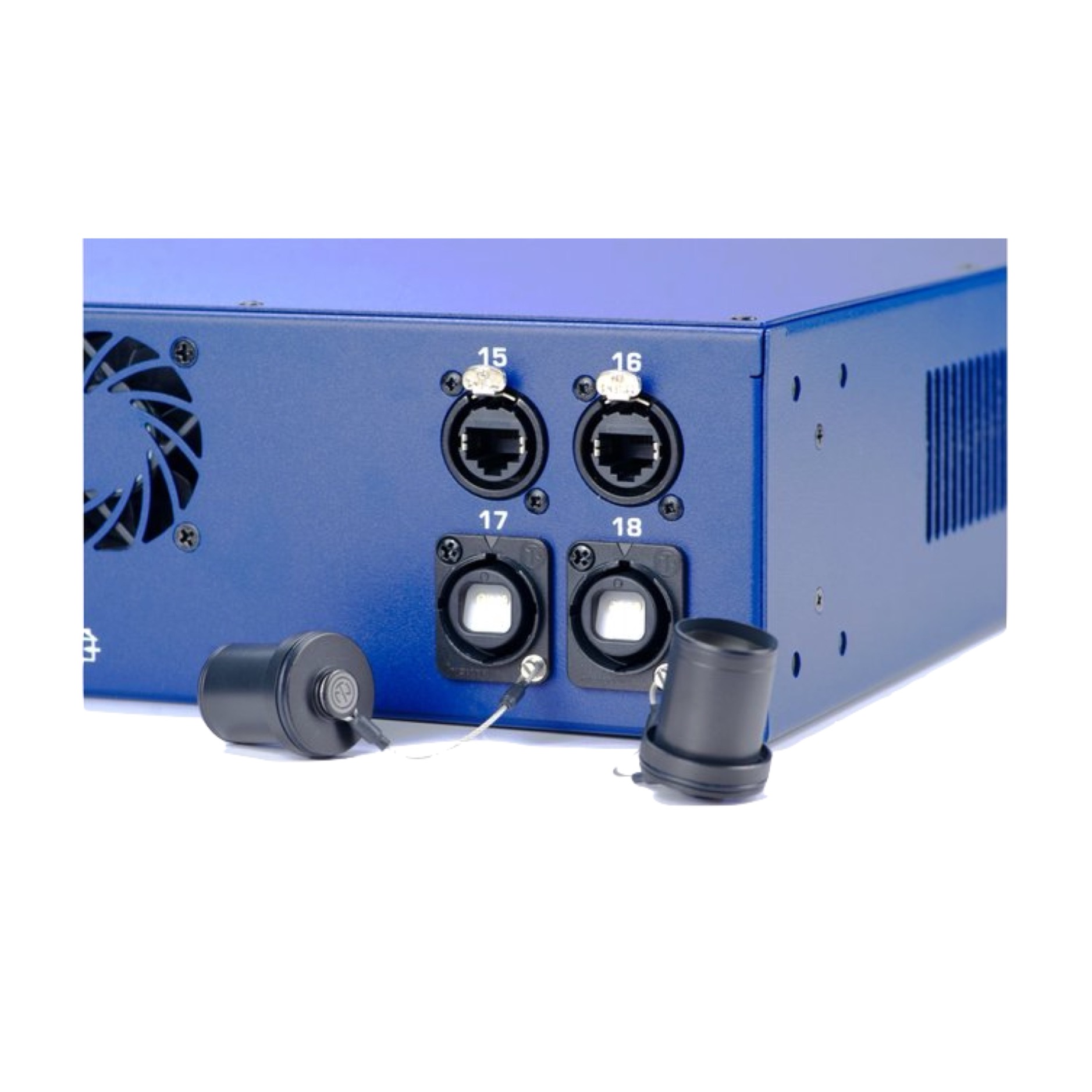

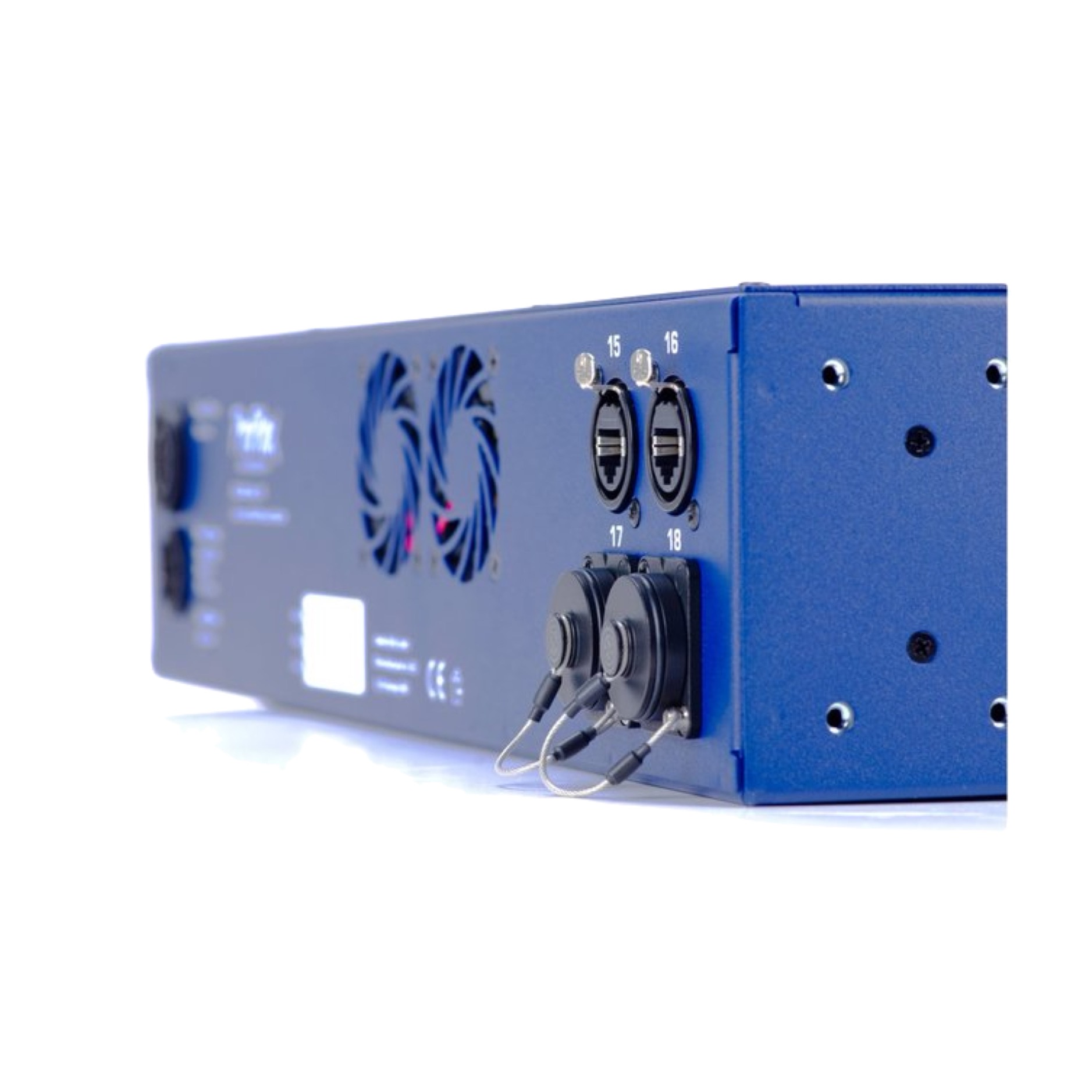

02 x Neutrik opticalCON QUAD
02 x Neutrik etherCON

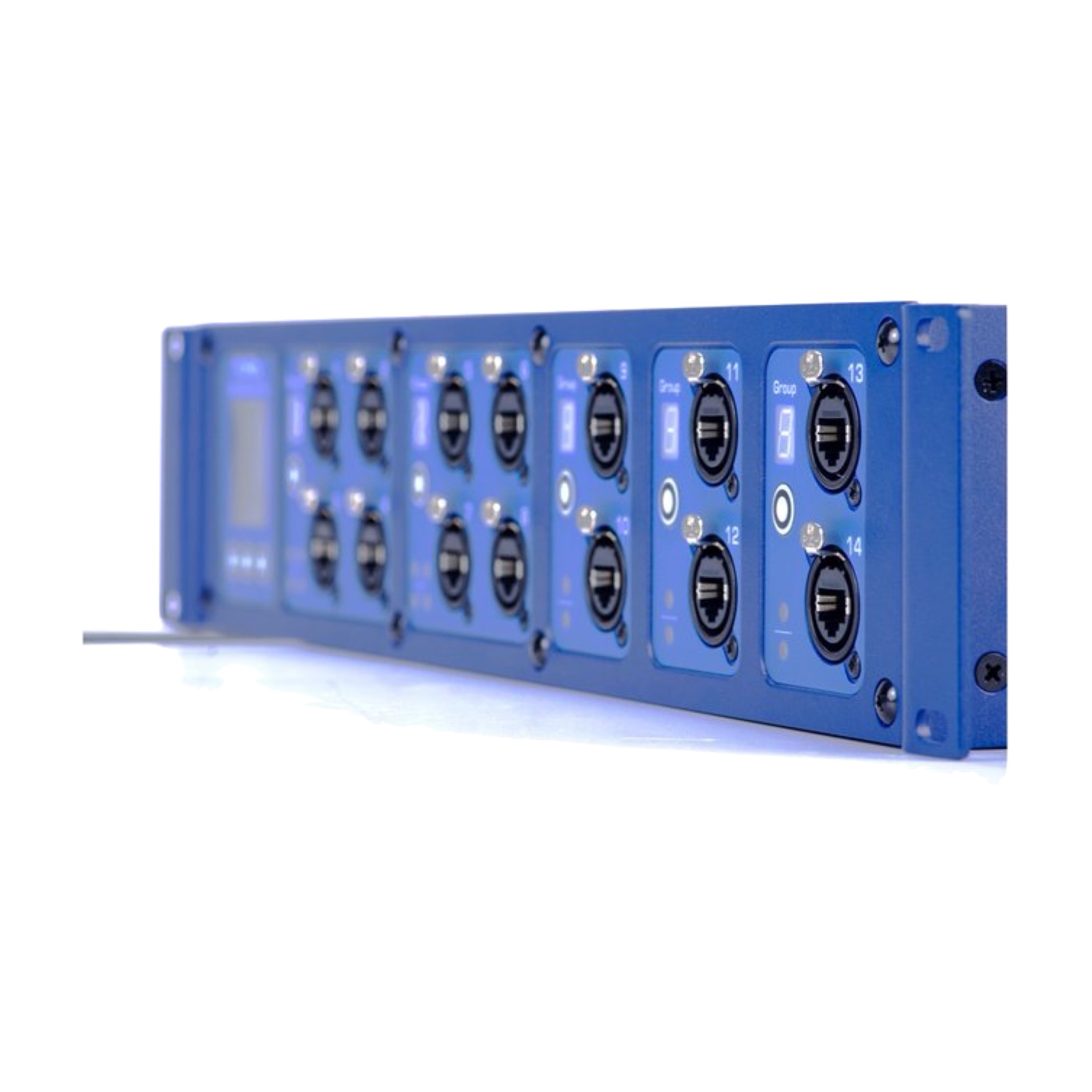

Output
14 x Neutrik etherCON (08 x PoE)
