Description
Technical data at a glance

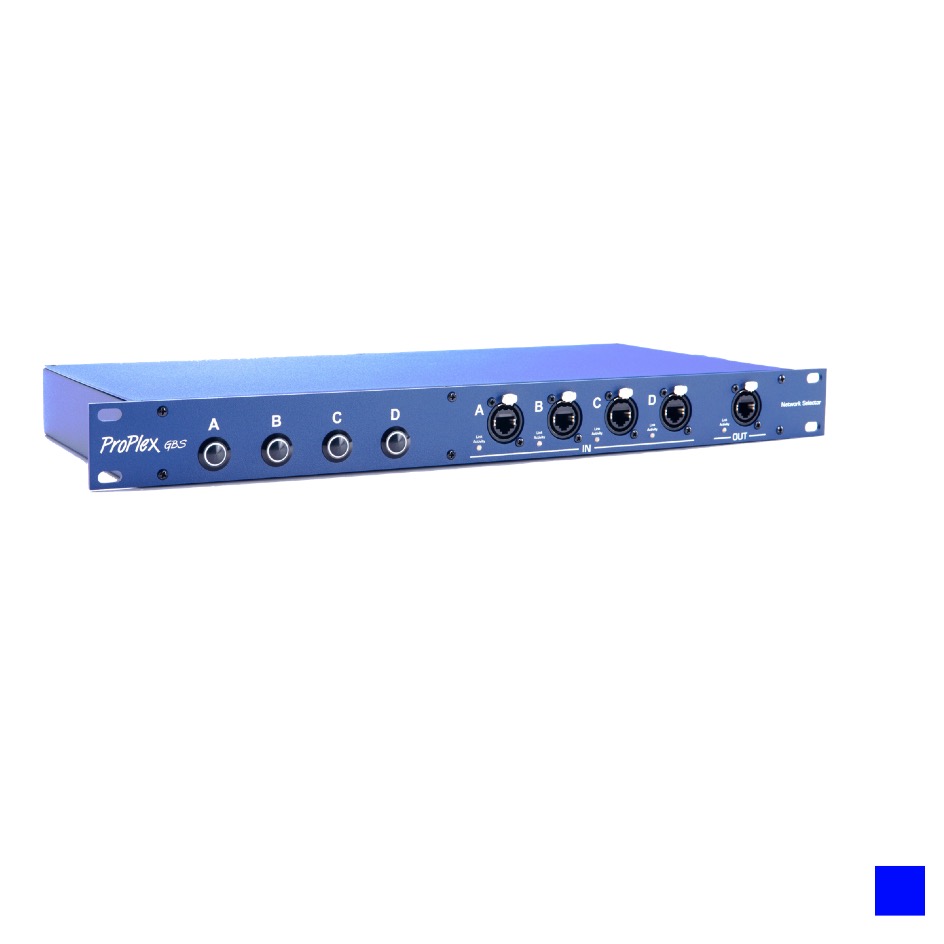

Network SwitchLighting console A/B switcher | 100 – 240VAC 50/60Hz | 15W | LAN IN: 04 Neutrik Ethercon | sACN, ArtNet, CobraNet, Dante, ETCNet, Ethersound, MA-Net, and more | LAN OUT: 01 Neutrik Ethercon
Rack-mount enclosure 19 inch | 1U
Dimensions (mm) | T: 213 | B: 483 | H: 44 | 3,4kg
Downloads
User Manual
Specification
Manufacturers Page
Technical Drawing (.pdf)
Detailed description
- Active selection of any one or two of four network sources
- Seamless switching with no glitches. Retains links for truly instant switching.
- 4 x 1Gb IN, 1 x 1Gb OUT, with indicating button selectors
- Input and Output indicator LEDs show network activity and speed
- Rugged ProPlex RackMount “blue-box” construction
Note
- To select an input, press and hold port enable button for one second.
- For seamless switching between ports, ALL ports are active, even when not selected.
Physically
– Rack-mount enclosure 19 inch | 1U
– Color/Finish blue
– Dimensions | W: 483mm | H: 44mm | D: 213mm
– Weight 3,4 kg
Thermally
– Ambient temperature -20°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 15W
Network
– Protocol sACN, ArtNet, CobraNet, Dante, ETCNet, Ethersound, MA-Net, and more
Input
04 Neutrik Ethercon
Output
01 Neutrik Ethercon
