Description
Technical data at a glance
2 DMX Universes that go anywhere. Big power in a small package. | 24 – 48VDC PoE | 2.5W | LAN IN: 01 NEUTRIK Ethercon | art-NET, sACN, PoE In (802.3af)
Universes per Device: 2 | Parameters per Device: 1’024 | DATA IN: 02 XLR5 Chassis Female (individually configurable as input or output) | DMX, RDM bidirectional | Parameter: 1’024
portable
Dimensions (mm) | T: 50 | B: 84,5 | H: 146 | 0,48kg
Downloads
User Manual
System Diagram
Firmware
Specification
Manufacturers Page
Technical Drawing (.pdf)
Detailed description

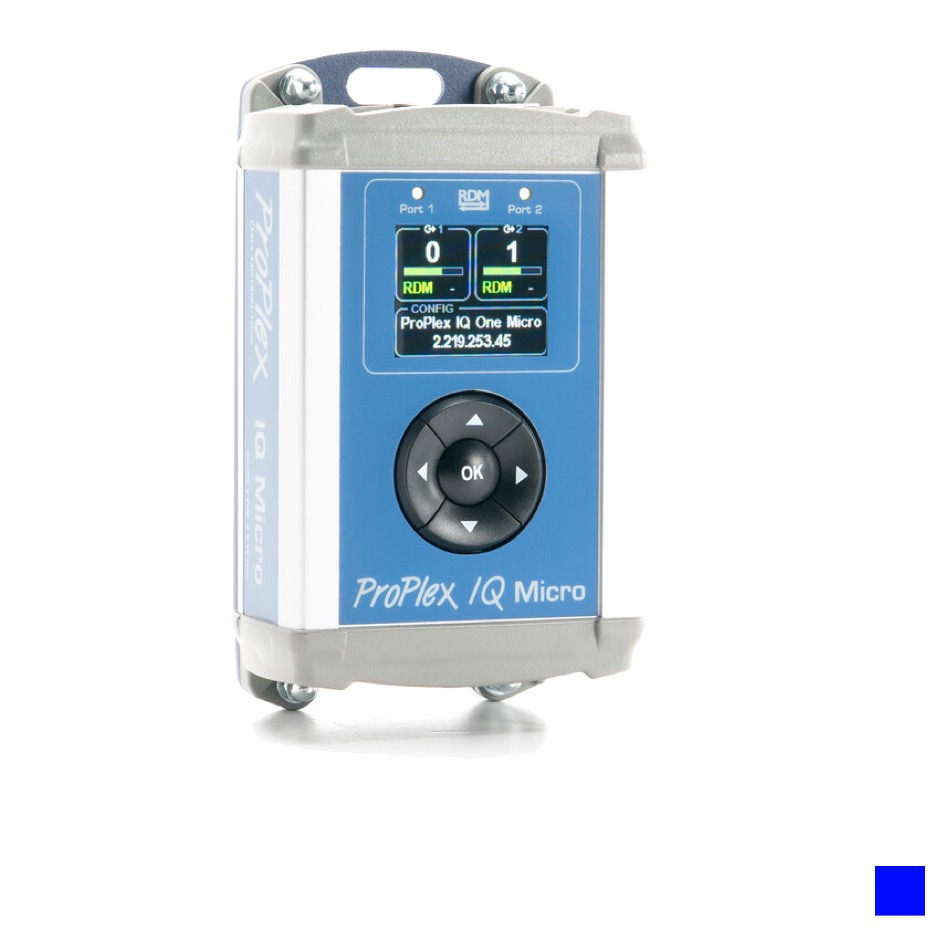

- The IQ Micro 2-universe, 2-port bidirectional Ethernet-DMX node packs a lot of merging/converting power in a small package.
- Convert between Ethernet and 2 universes of DMX. Neutrik connectors are featured and large navigation buttons with easy-to-read LCD makes programming simple, easy, and quick.
- The handy Mounting Plate and Strap make installation effortless and the extremely compact unit will fit anywhere. ProPlex IQ products are rugged, intuitive, and quick to configure.
- Powered by PoE, the IQ Micro is fully RDM functional and interfaces with ProPlex Software.
- Bidirectional, 2-universe, 2-port merging and Ethernet protocol conversion of DMX data (sACN/ArtNet)
- Rugged, extremely compact Micro enclosure with optional mounting plate and strap installs almost anywhere
- Intuitive, simple web interface or front panel control of all basic functions
- RDM functionality for complete system feedback and monitoring
- All Neutrik connectors: XLR and EtherCon
Physically
– portable
– Color/Finish blue
– Dimensions | W: 84,5mm | H: 146mm | D: 50mm
– Weight 0,48 kg
Thermally
– Ambient temperature -20°C – 40°C
– Convection cooling
Electrically
– electrical protection class Isolated
– Operating voltage 24 – 48VDC PoE
– Power consumption 2.5W
Control
– Protocol DMX, RDM bidirectional
Inout
02 XLR5 Chassis Female (individually configurable as input or output)
Amount of Universes 2 (1’024 DMX-Channels)
Network
– Protocol art-NET, sACN, PoE In (802.3af)
– Network Universes 2
Input
01 NEUTRIK Ethercon
