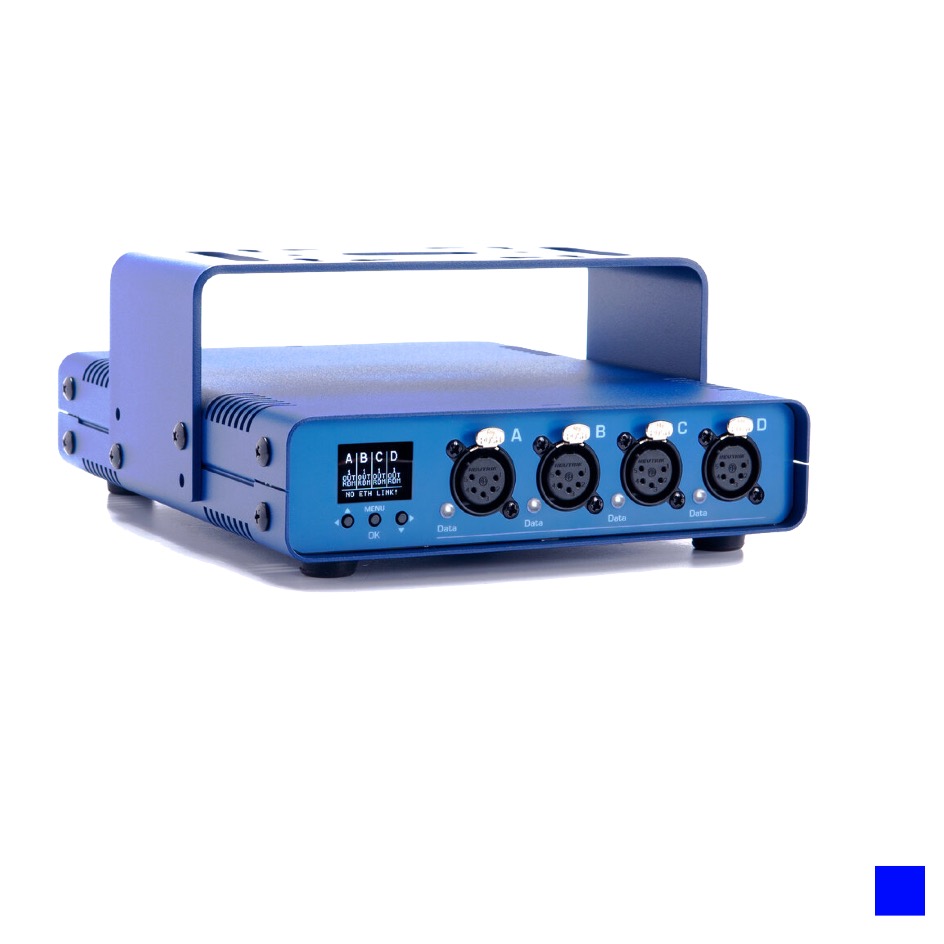

Powerful, Durable, Bidirectional, Mini Ethernet-DMX Node.
In: powerCON 20A Chassis (blue)
Out: powerCON 20A Chassis out (grey) | 100 – 240VAC 50/60Hz | 10W | LAN IN: 02 NEUTRIK Ethercon | art-NET, sACN, PoE In (802.3af)
Universes per Device: 4 | Parameters per Device: 2’048 | DATA IN: 04 XLR5 Chassis Female (individually configurable as input or output) | DMX, RDM bidirectional | Parameter: 2’048
Rack-mount enclosure portable 9.5 inch | 1U
Dimensions (mm) | T: 223 | B: 196 | H: 43,7 | 2,4kg
Downloads
User Manual
System Diagram
Rack Mount Kit Manual
Firmware
Specification
Manufacturers Page
Technical Drawing (.pdf)
Detailed description
- Bidirectional conversion and merging of Ethernet protocol (sACN/ArtNet) DMX data
- Powerful, comprehensive, useful feature set
- Rugged, tour-ready ProPlex “BSH” Mini PortableMount enclosure
- Shock-mounted components. Purpose-designed ventilation. Peerless reliability.
- ProPlex Software-ready, for simple, yet powerful total system management and control
- Intuitive, simple, OLED display, or web browser control of all basic functions
- Dual EtherCon ports for daisy-chain, multi-unit topology, with close to zero latency
- Power via PowerCon with power thru, or via PoE
- All genuine Neutrik connectors: Locking PowerCon, EtherCon, XLR
- Complete with rugged, multi-attachment, removeable yoke
Physically
– Rack-mount enclosure portable 9.5 inch | 1U
– Color/Finish blue
– Dimensions | W: 196mm | H: 43,7mm | D: 223mm
– Weight 2,4 kg
Thermally
– Ambient temperature -20°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 10W
Power connector input
powerCON 20A Chassis (blue)
Power connector output
powerCON 20A Chassis out (grey)
Control
– Protocol DMX, RDM bidirectional
Inout
04 XLR5 Chassis Female (individually configurable as input or output)
Amount of Universes 4 (2’048 DMX-Channels)
Network
– Protocol art-NET, sACN, PoE In (802.3af)
– Network Universes 4
Input
02 NEUTRIK Ethercon
