Description
Technical data at a glance

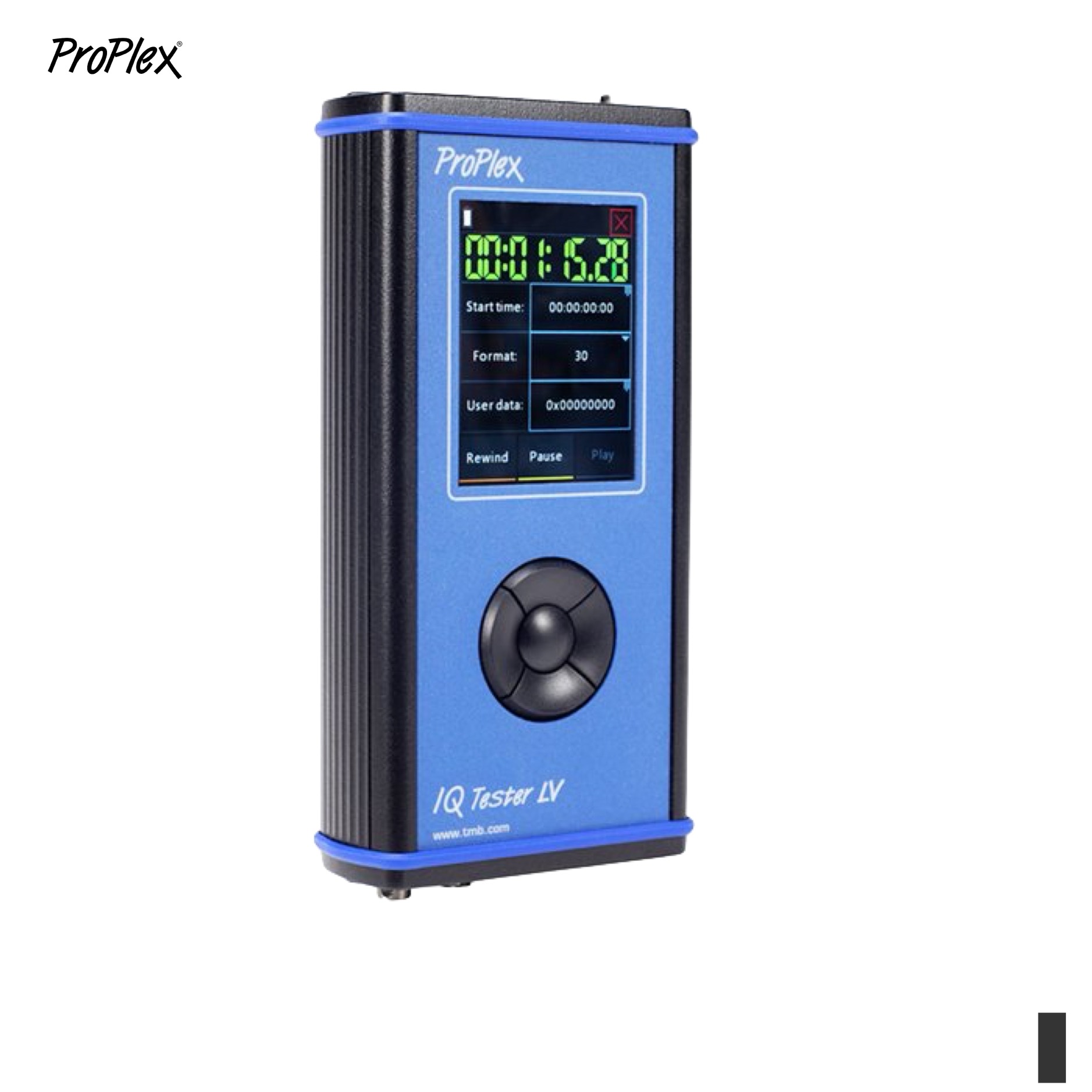

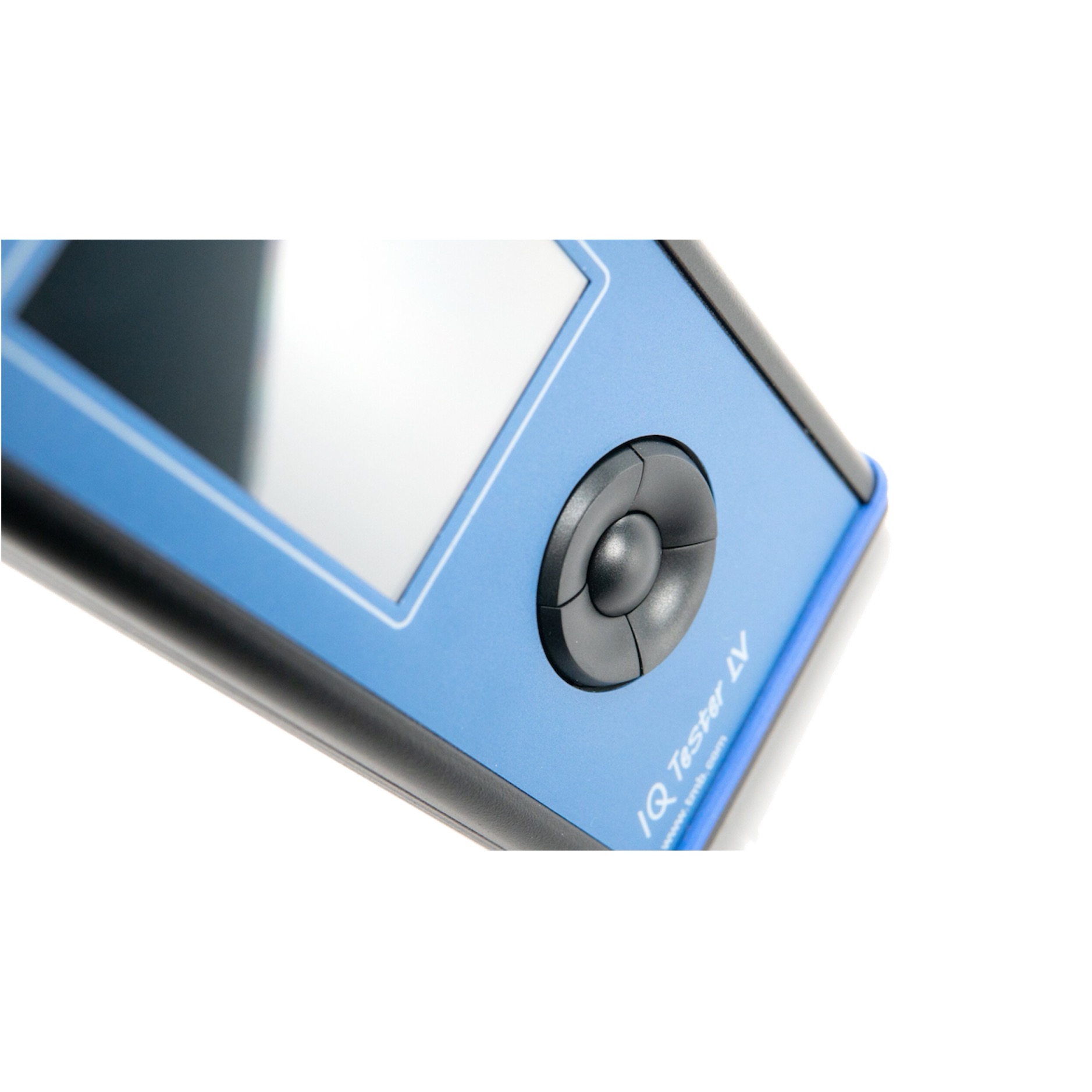

The professional test device for almost all network protocols used in event technology. Tests PoE, time code. Can configure and address RDM-capable devices. DMX cable tester with data transmission rate display. | 5VDC (internal Battery) | LAN IN: 01 NEUTRIK Ethercon | art-NET, sACN, Hipponet, MANet2, MANet3, HogNet, Dante, d3Net, Timecode | DATA IN: 01 XLR5 Chassis Male | RDM, DMX | DATA OUT: 01 XLR5 Chassis Female | DMX, RDM
Dimensions (mm) | L: 173 | B: 85 | H: 35
Downloads
User Manual
ProPlex IQ Tester Forum
Firmware
Specification
Manufacturers Page
Technical Drawing (.pdf)
Features
- Checks the overall statistics of network activity and bandwidth usage
- Detects all active devices streaming on the network, sorted by IP and MAC address
- Multicast stream detection with support for multicast switches
- Ethernet Link Layer Discovery Protocol (LLDP) detection protocol displays statistics on connected switches
- Configurable ICMP ping sender and receiver
- Protocol detector recognizes the specific entertainment industry standard protocols (Dante, ArtNet, sACN, MANet (2 & 3), HogNet, d3Net and more).
- PoE detection and analysis of connected sources, supports 802.3af and PoE + 802.3at

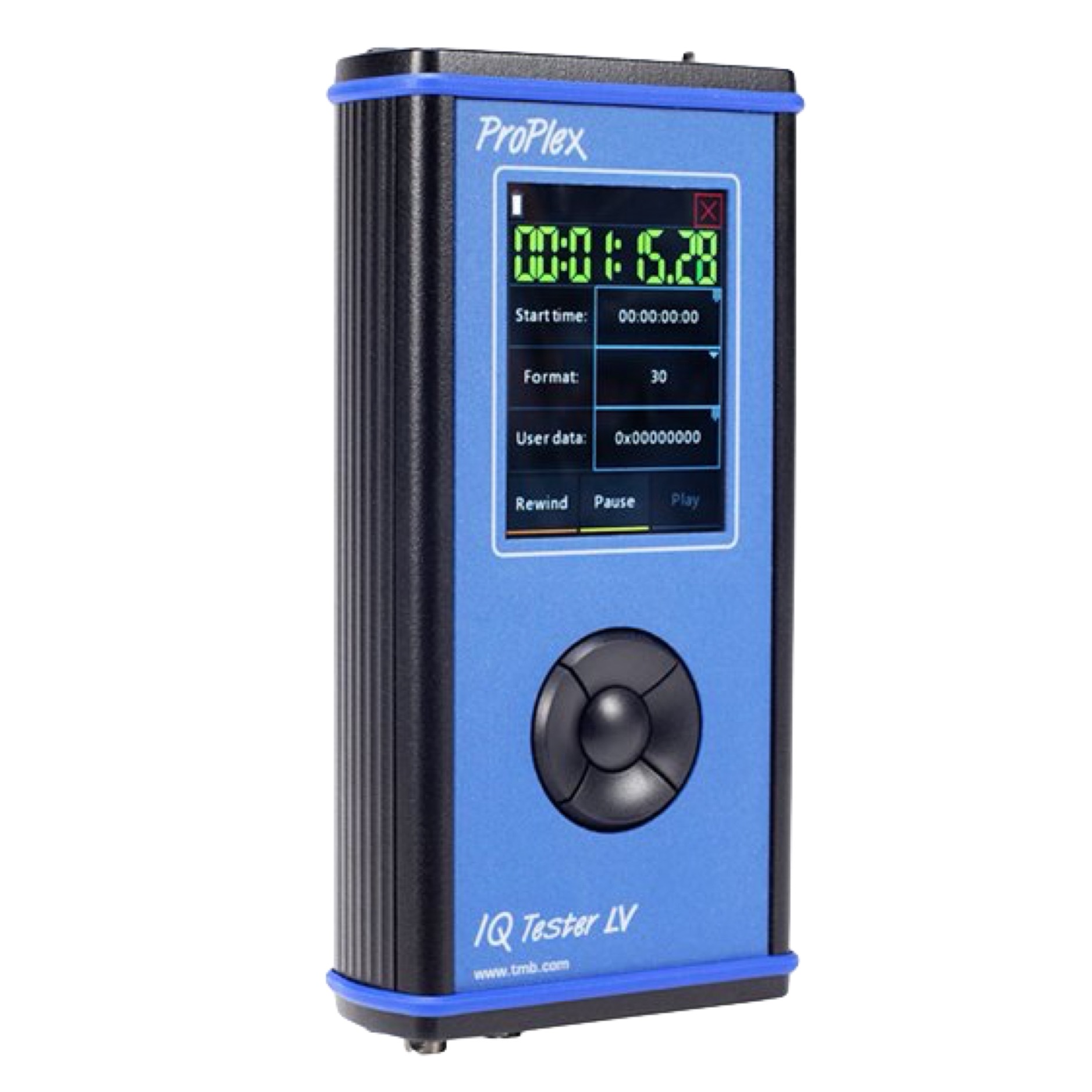

- SMPTE LTC timecode transmitter and receiver with signal range and measurement statistics
- Controls the active incoming sources from ArtNet, sACN or DMX with multiple display formats as well as flicker finder and timing statistics
- DMX transmission with multiple active universe output and source data editors (touch-sensitive faders, FX engine, playback of saved scenes and more). Ideal for fixture testing.
- RDM fixture monitoring supports most standard PID and raw PID modes for custom messages
- “Smart” DMX cable tester with continuity and bandwidth performance tests
Complete analysis of active Network streams and devices
- Monitors network activity and bandwidth usage
- Color-coded, scrolling Packet Lister, with touch navigation, shows raw Ethernet packets
- Multicast Stream detection with multicast switch support
- Configurable ICMP Ping sender and responder
- “Protocol Detector” specifically recognizes standard entertainment industry protocols (Dante, ArtNet, sACN, MANet (2 & 3), HogNet, d3Net, and more)
DMX 512 control and analysis via ArtNet, sACN or standard 5-pin DMX
- DMX Transmission with multiple active universe output and source data editors (touch-sensitive faders, FX engine, stored scene playback & more)
- Simulate a DMX node by assigning incoming ArtNet or sACN streams to output via 5-pin DMX ports
- Monitor active incoming sources of DMX, ArtNet or sACN with multiple value display formats, plus flicker-finder and timing statistics
- DMX Scope, real-time voltage waveform analysis
- RDM device monitoring supports most standard PID and “Raw PID” modes for custom messages
Physically
– Color/Finish blackblue

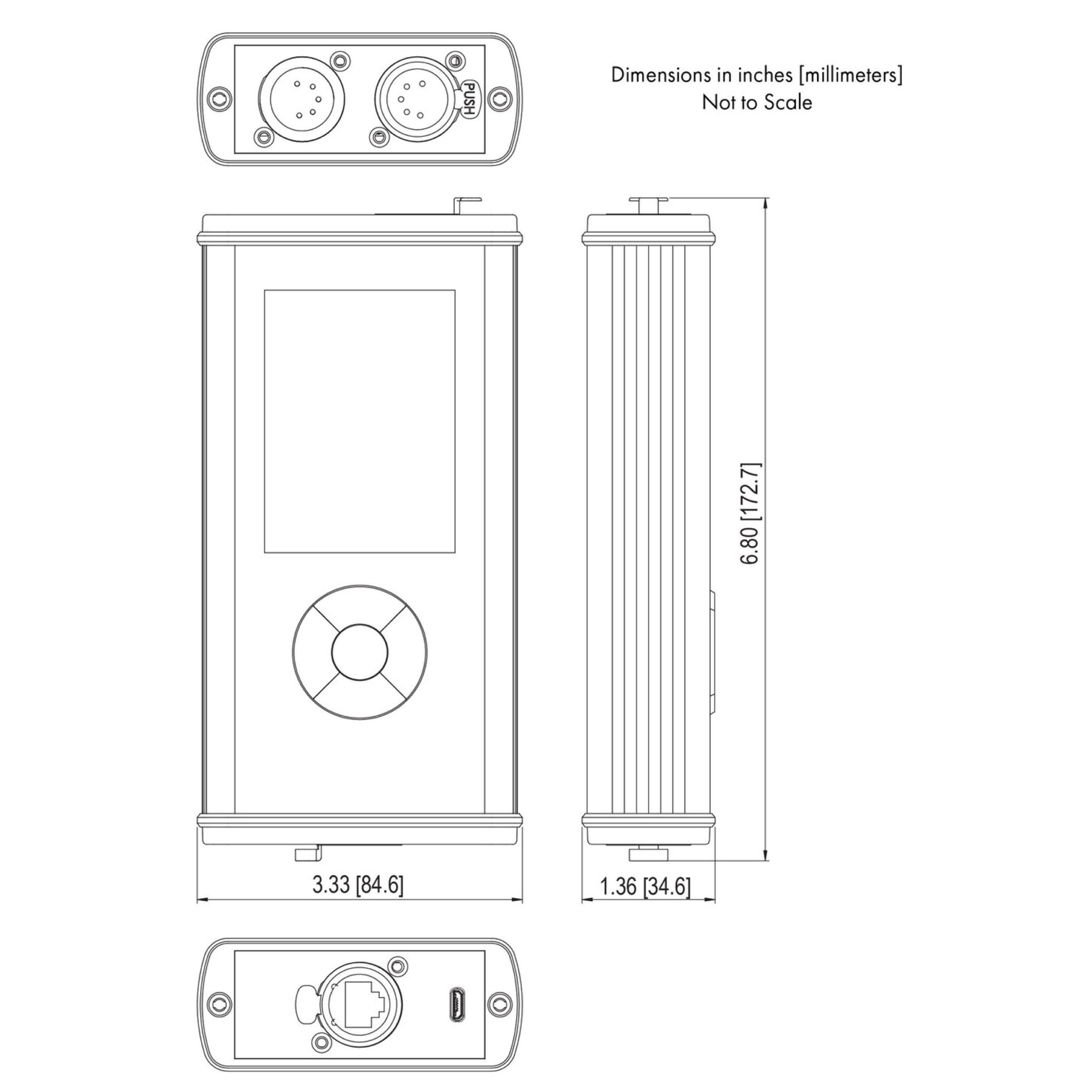

– Dimensions | L: 173mm | W: 85mm | H: 35mm
Electrically
– Operating voltage 5VDC (internal Battery)
Control
– Protocol RDM, DMX
– Protocol Output DMX, RDM
Inout

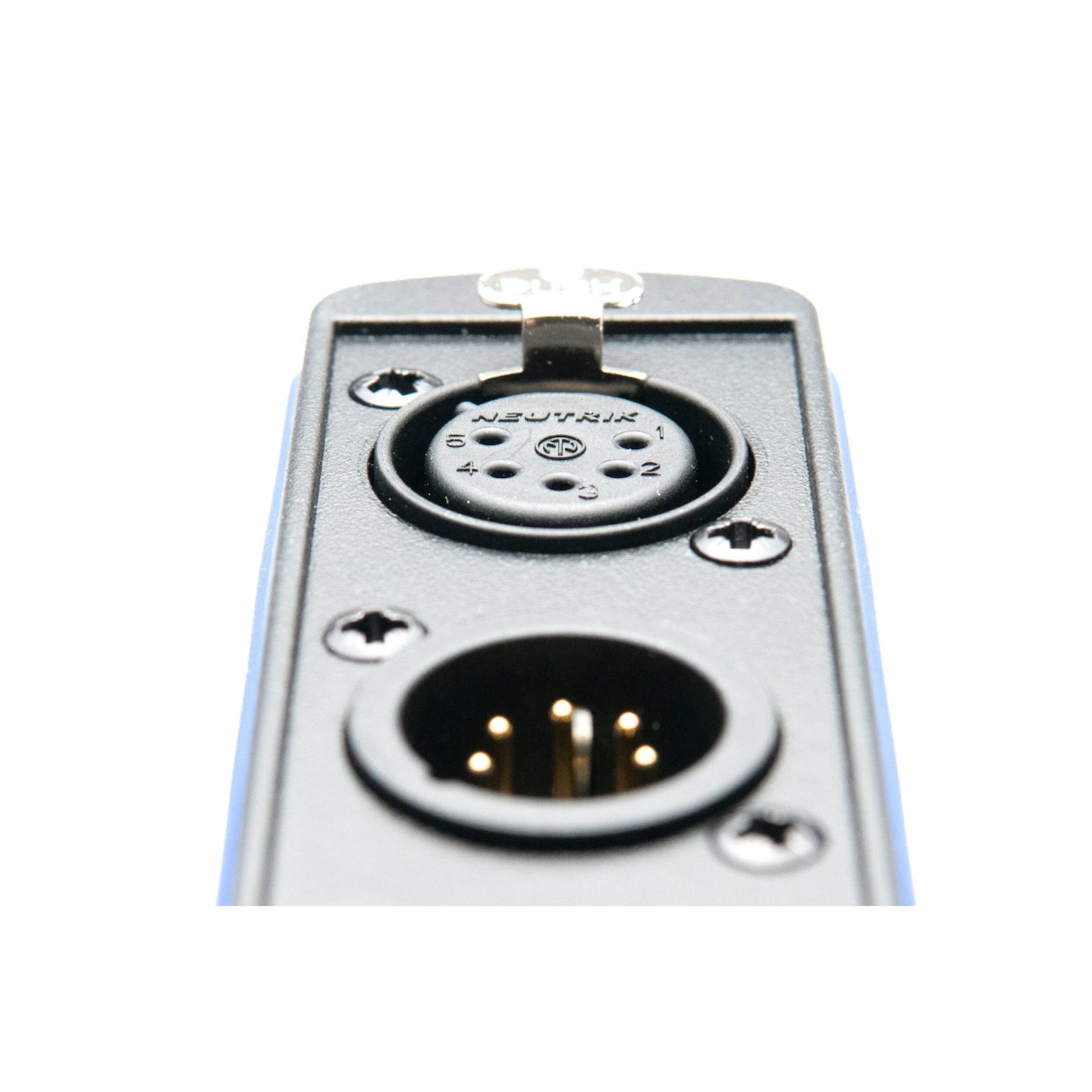

01 XLR5 Chassis Male
Output
01 XLR5 Chassis Female
Network
– Protocol art-NET, sACN, Hipponet, MANet2, MANet3, HogNet, Dante, d3Net, Timecode
Input

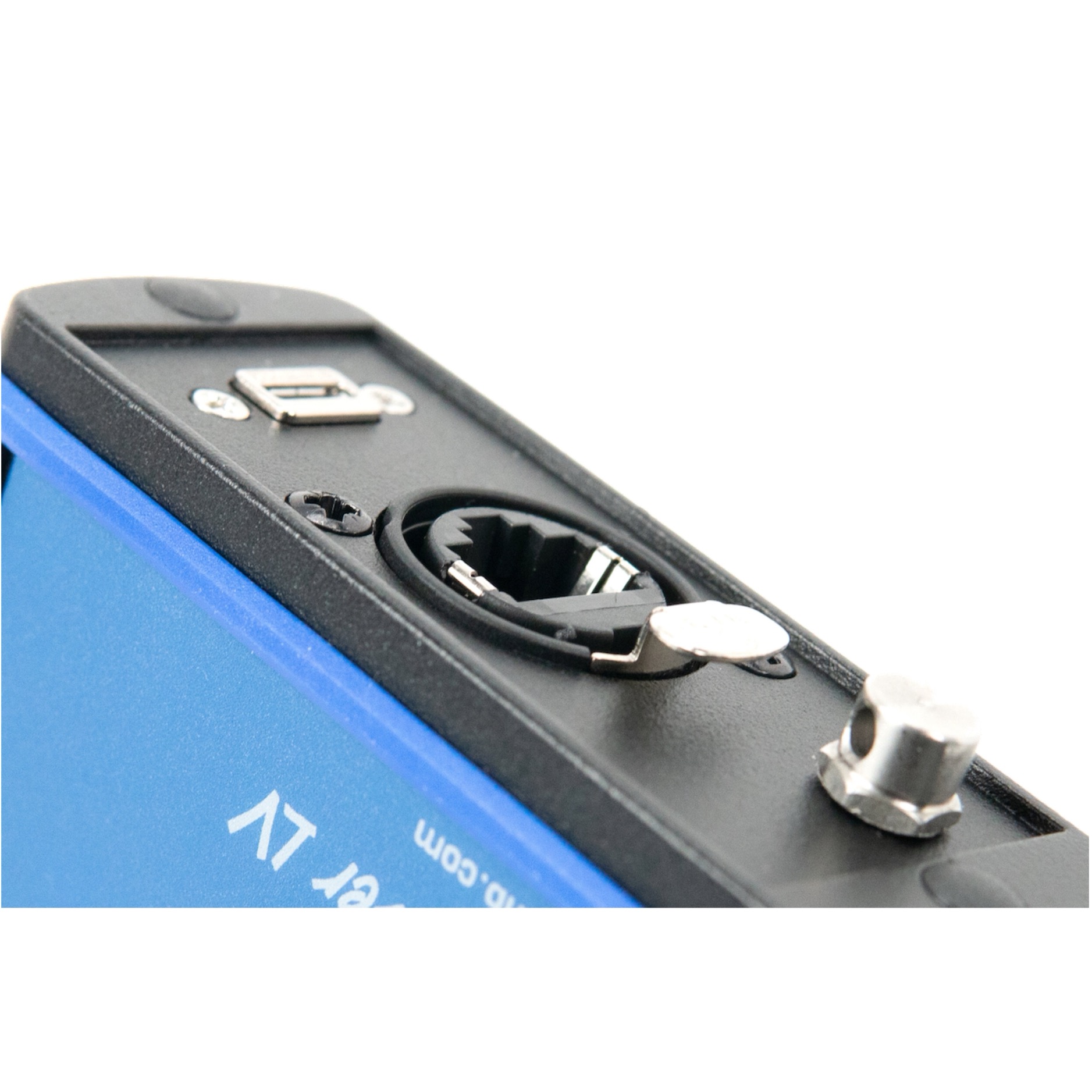

01 NEUTRIK Ethercon
PC-Ports
USB-C Service Port
