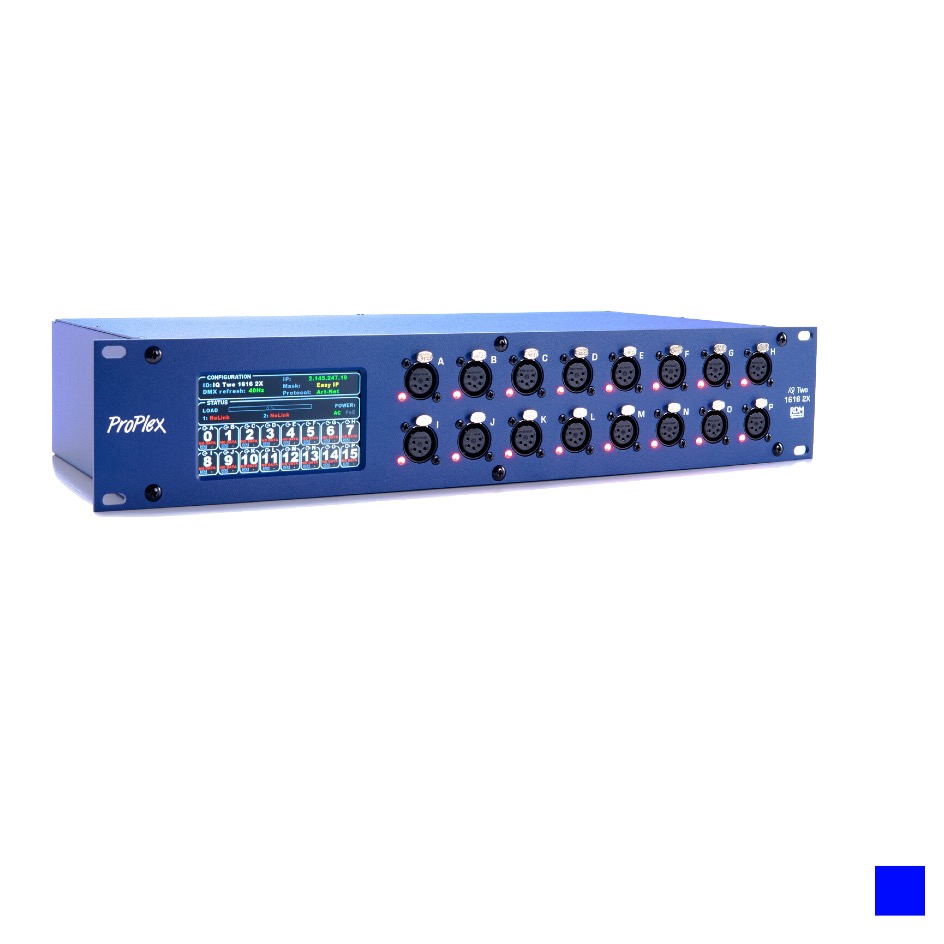

16-way Bidirectional ArtNet/sACN-DMX Node with Dual EtherCon Ports and PoE Power in for 16 DMX-Universes.
In: powerCON 20A Chassis (blue)
Out: powerCON 20A Chassis out (grey) | 100 – 240VAC 50/60Hz | 20W | LAN IN: 02 Neutrik etherCON | art-NET, sACN, PoE In (802.3af)
Universes per Device: 16 | Parameters per Device: 8’096 | DATA IN: 16 XLR5 Chassis Female (individually configurable as input or output) | DMX, RDM bidirektional | DMX, RDM bidirektional | Parameter: 8’192
Rack-mount enclosure 19 inch | 2U
Dimensions (mm) | T: 205 | B: 483 | H: 90 | 3,8kg
Downloads
User Manual
System Diagram
Firmware
Specification
Manufacturers Page
Technical Drawing (.pdf)
Detailed description
- High-power processor for glitch-free data conversion, patching and merging of up to 16 Universes
- Powerful yet intuitive feature set, control, management, via on-board LCD, Browser Interface, or ProPlex Software
- Full-featured ProPlex Software option for management of the largest networks
- Dual EtherCon ports allow very low latency linking of units and, with GBS and EZ-LAN, ring topology for speed and redundancy
- PoE power-in option for convenience or dual-power redundancy
- Merge ArtNet or Streaming ACN from multiple sources
- Full bi-directional RDM functionality. Input or output on any DMX connector.
- Rugged, tour-ready ProPlex “Blue Box” construction
Physically
– Rack-mount enclosure 19 inch | 2U
– Color/Finish blue
– Dimensions | W: 483mm | H: 90mm | D: 205mm
– Weight 3,8 kg
Thermally
– Ambient temperature -20°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
– Power consumption 20W
Power connector input
powerCON 20A Chassis (blue)
Power connector output
powerCON 20A Chassis out (grey)
Control
– Protocol DMX, RDM bidirektional
– Protocol Output DMX, RDM bidirektional
Inout
16 XLR5 Chassis Female (individually configurable as input or output)
Amount of Universes 16 (8’192 DMX-Channels)
Network
– Protocol art-NET, sACN, PoE In (802.3af)
– Network Universes 16
Input
02 Neutrik etherCON
