Description
Technical data at a glance

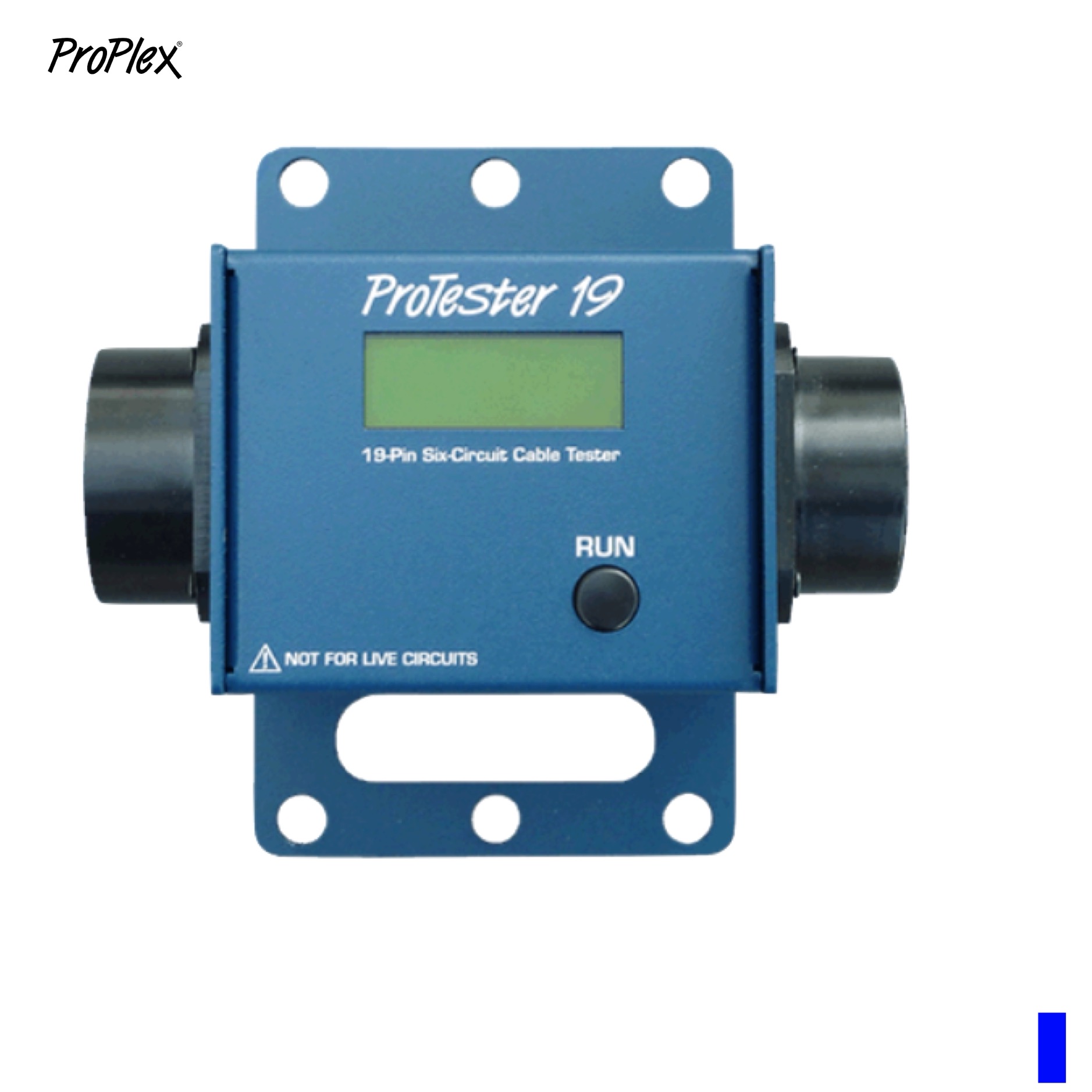

Diagnose and Troubleshoot 19-pin Multicables and Circuits
In: 01 x 19pin Multipin Chassis Male socapex compatible
Out: 01 x 19pin multipin chassis female socapex compatible | 5 – 18VDC
Dimensions (mm) | L: 152 | B: 155 | H: 85
Downloads
FORUM
Specification
Manufacturers Page
Detailed description
- Designed for real-world entertainment and staging production, where time, durability, and ease of use are essential. From TMB, a company that has made (and tested!) cable assemblies for over 30 years.
Features
- Accurate! LCD displays real-time results by contact-to-contact scanning.
- Saves time! Instantly checks all circuits.
- Intelligent! Identifies bussed ground pins
- Fast and Safe! Quick-connect feature. No locking rings – no scuffed knuckles!
- Versatile! Portable or bench mount.
- Long battery life! Auto-off feature.
- Easy to Use! Auto-switching DC battery or mains AC power.
- Multifunctional! Auto-select wiring diagnosis + continuity/lamp status.
- Rugged! Heavy-duty aluminum chassis with “ProPlex Blue” textured finish.
Physically
– Color/Finish blue
– Dimensions | L: 152mm | W: 155mm | H: 85mm
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 5 – 18VDC
Power connector input
01 x 19pin Multipin Chassis Male socapex compatible
Power connector output
01 x 19pin multipin chassis female socapex compatible
