Description
Technical data at a glance

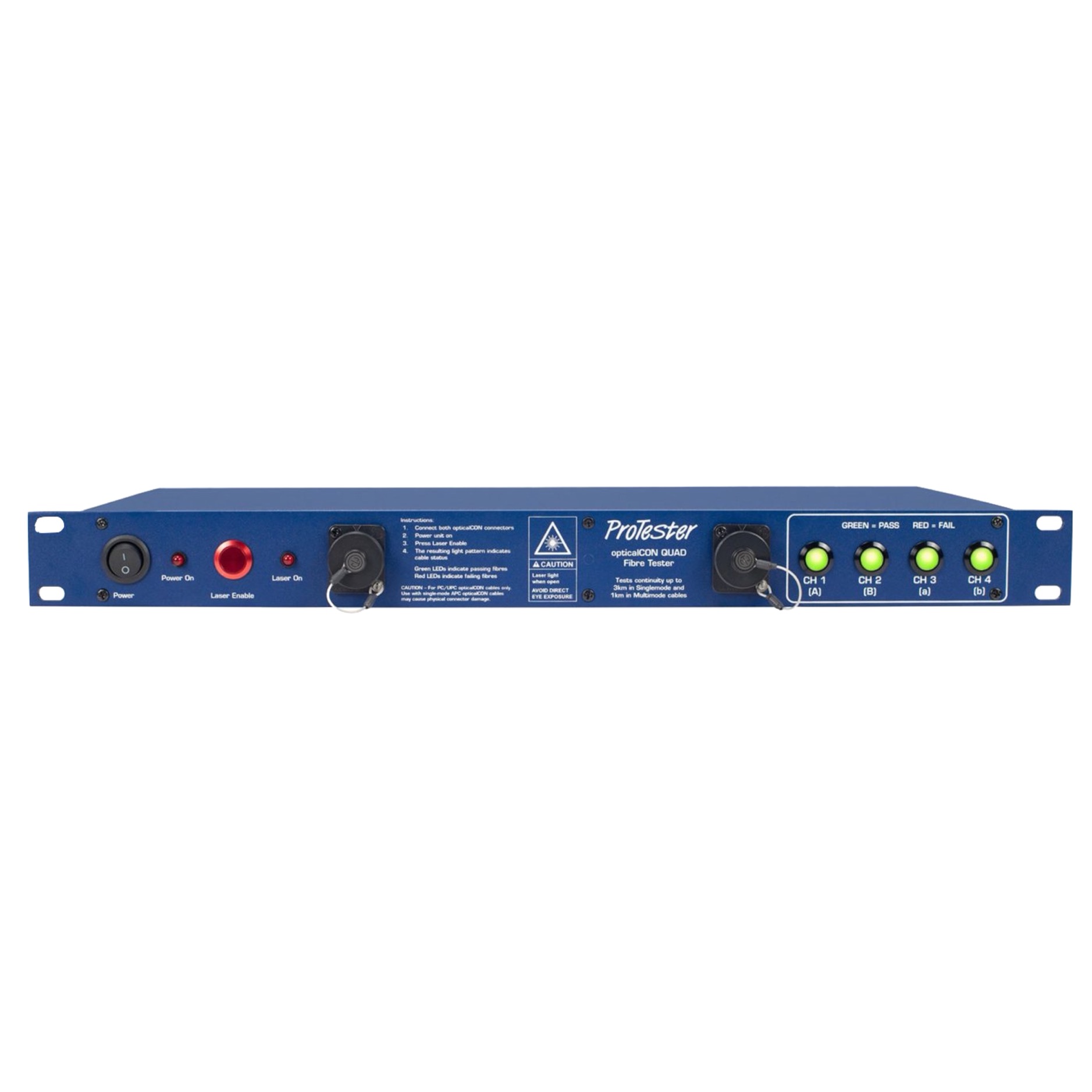

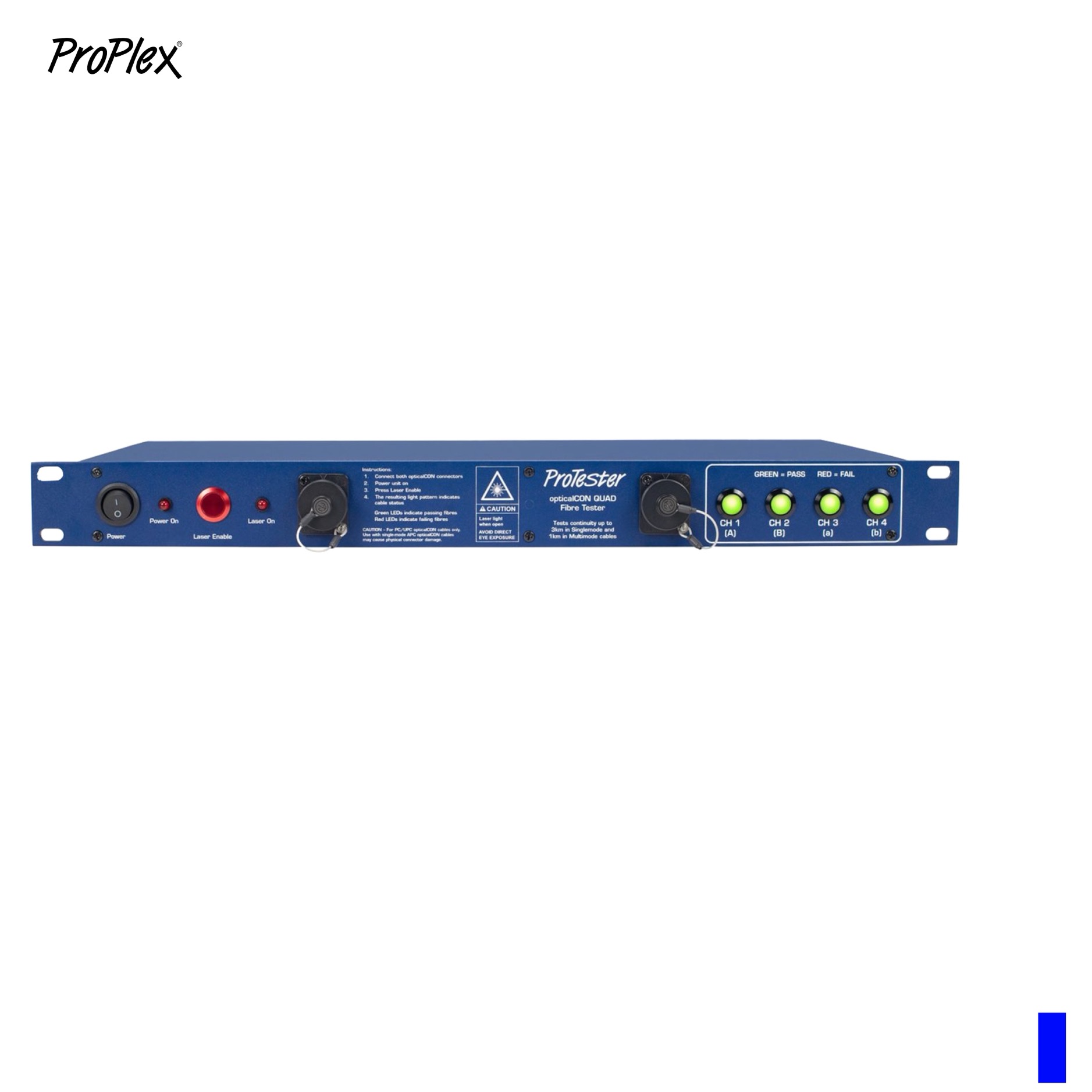

Continuity tester for fiber optic cables with Neutrik opticalCON QUAD connectors for 19-inch rack installation.
In: powerCON True1 Chassis
Out: powerCON True1 Chassis | 100 – 240VAC 50/60Hz | LAN IN: NEUTRIK opticalCON QUAD | LAN OUT: NEUTRIK opticalCON QUAD
Rack-mount enclosure 19 inch | 1U
Dimensions (mm) | B: 483 | H: 43,7
Downloads
Specification
Manufacturers Page
Detailed description
- Instantly tests continuity on Singlemode Fibrecables up to 3km and Multimode cables up to 1km
- opticalCON QUAD or DUO versions.
- RackMount & Portable Versions
- Bright panel LEDs visible in all conditions
- Ruggedized construction
- Caution: For PC/UPC opticalCON cables only. Use with single-mode APC opticalCON cables may cause physical connector damage.
Operation
- Connect both opticalCON connectors
- Power unit on
- Press Laser Enable
- The resulting light pattern indicates cable status:
- Green LEDs indicate passing fibres
- Red LEDs indicate failing fibres
Physically
– Rack-mount enclosure 19 inch | 1U
– Color/Finish blue
– Dimensions | W: 483mm | H: 43,7mm
Thermally
– Ambient temperature -20°C – 40°C
Electrically
– electrical protection class Protection Earth
– Operating voltage 100 – 240VAC 50/60Hz
Power connector input
powerCON True1 Chassis
Power connector output
powerCON True1 Chassis
Network
Input
NEUTRIK opticalCON QUAD
Output
NEUTRIK opticalCON QUAD
