Detailed description

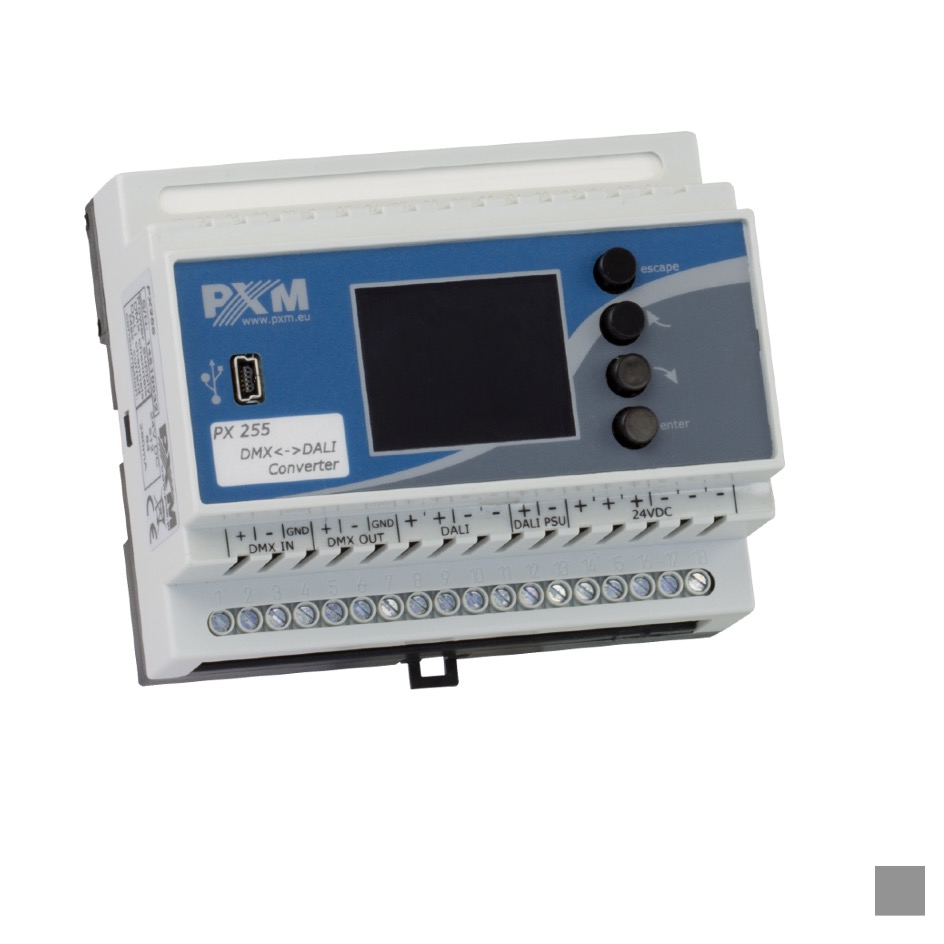

- DALI »« DMX Interface is a powerful device that allows to combine dynamic light systems based on the DALI protocol and systems using DMX-512 control. It allows to connect DMX-512 devices in the DALI protocol, or to connect to the controller DALI devices operating in the protocol DMX-512 standard.
Additionally, for each of the lamp, you can define a number of individual parameters such as minimum and maximum brightness of the lamp, the time at which the brightness of the lamp reaches its maximum value (“fade time”), the number of steps needed to achieve the maximum level of brightness (“fade rate”) or determine the brightness of each lamp in the event of failure of the control system.
Features
- 512 DMX input channels
- 512 DMX output channels
- 64 DALI channels
- 64 virtual DALI ballasts
- 16 DALI device groups
Physically
– Plastic housing for DIN rail mounting
– Color/Finish grey
– Dimensions | W: 105mm | H: 86mm | D: 60mm
– Weight 0,15 kg
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 24VDC via external DIN-PSU
– Power consumption 1W
Power connector input
Terminal Block 2pin
Control
– Protocol DMX, DALI
– Protocol Output DMX, DALI
Inout
Terminal Block 3pin
Output
Terminal Block 3pin
Terminal Block 4pin (DALI-Signal and DALI-Power)
Amount of Universes 1 (512 DMX-Channels)
PC-Ports
– USB miniB (Service)
