Features
- Output current adjustable from 600 – 2300mA
- Connection for optional 4K7 NTC thermistor

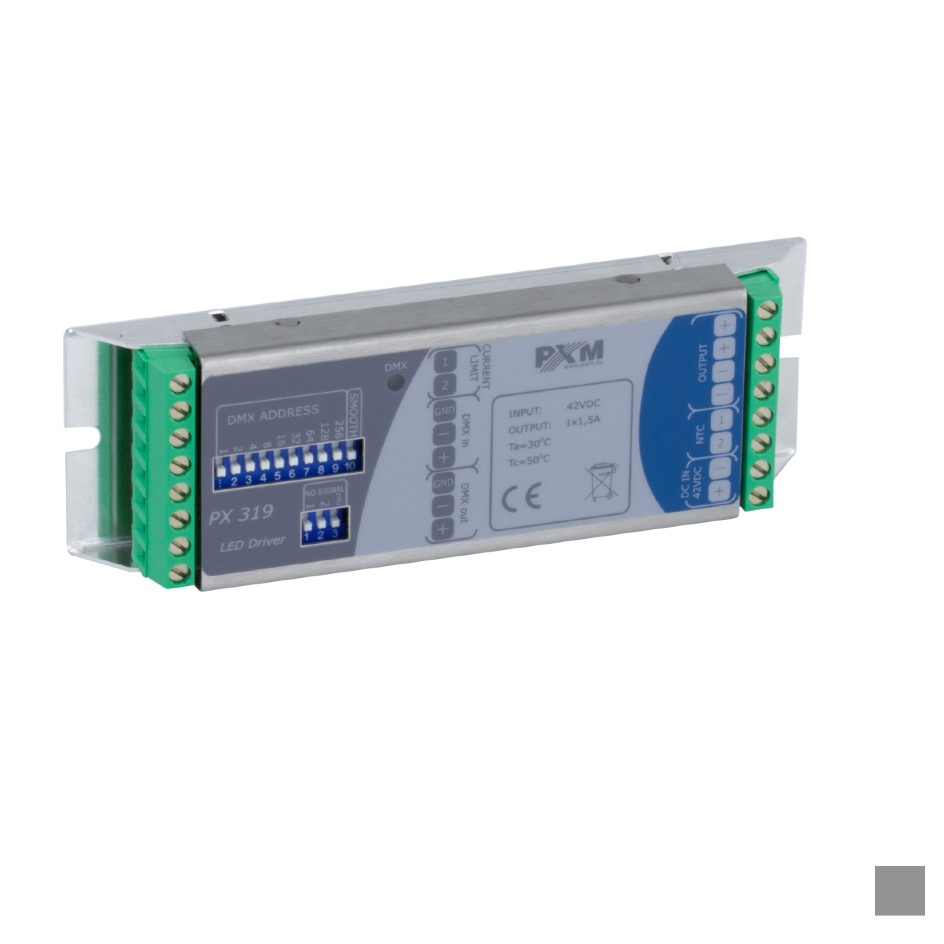

Physically
– Aluminum housing for installation in luminaire housing
– Color/Finish grey
– Dimensions | L: 132mm | W: 47mm | H: 21mm
– Weight 0,15 kg
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 12 – 48VDC
– Max. Rated Current 250 – 2000mA
Power connector input
Terminal Block 2pin
Control
– Protocol DMX
Inout
Terminal Block 3pin
Output
Terminal Block 3pin
Terminal Block 2pin LED 250 – 2000mA
Terminal Block 2pin NTC 4K7
Amount of Universes 1 (512 DMX-Channels)
