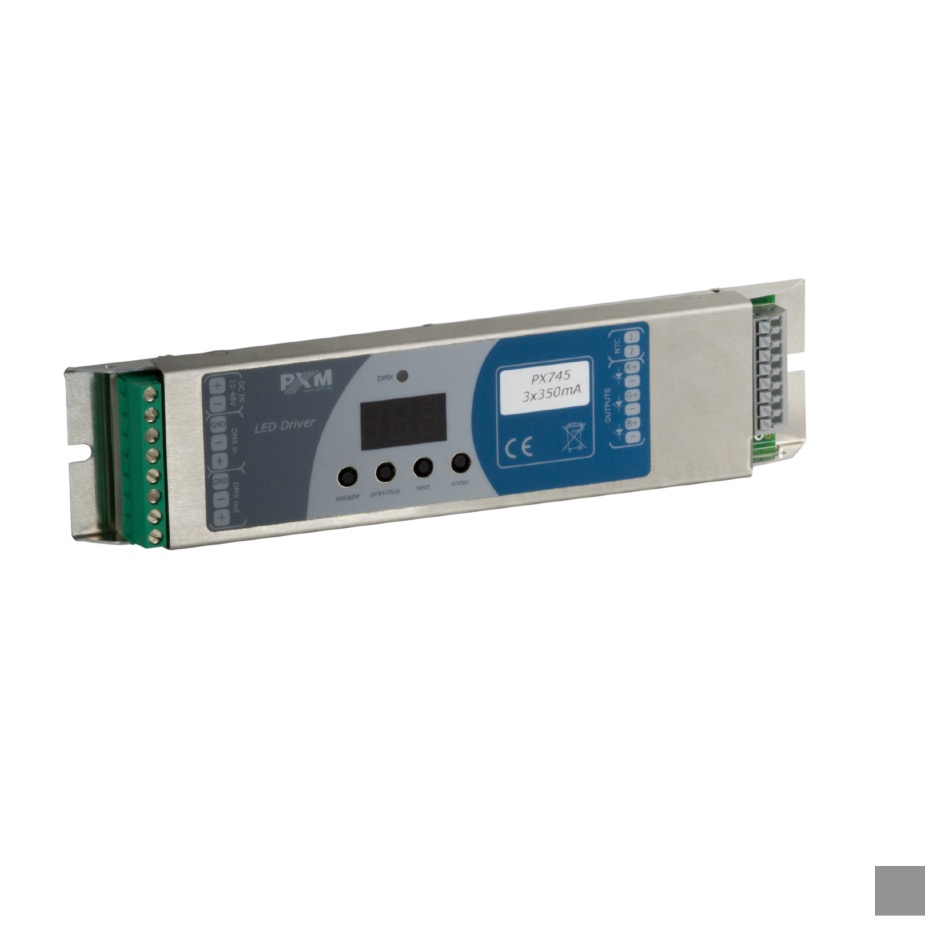

Detailed description
- Local operation via display and four menu control buttons
- Various operating modes
– HSL”: Hue, saturation, brightness
– 3bd”: red, green, blue, dimmer
– 3b”: red, green, blue
– “2b”: consists of the selection of brightness and one of the 256 colors defined by the manufacturer
– dW”: dynamic white. Channel control: cold white + warm white, via two DMX channels. The first DMX channel is for the color temperature and the other channel for the brightness.
– „EFF”: Control of effects available on 8 DMX channels
– “P01 – P18”: Selection of a program provided in the device software
Features
- Output current adjustable from 3 x 350mA
- Connection for optional 4K7 NTC thermistor
Light source
– Red, green, blue
– Selectable PWM refresh rate of 366Hz up to 25.0kHz
Physically
– Aluminum housing for installation in luminaire housing
– Color/Finish grey
– Dimensions | L: 192mm | W: 45mm | H: 21mm
– Weight 0,15 kg
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 12 – 48VDC
– Max. Rated Current 3 x 350mA
Power connector input
Terminal Block 2pin
Control
– Protocol DMX
Inout
Terminal Block 3pin
Output
Terminal Block 3pin
Terminal Block 6pin LED RGB 3x350mA
Terminal Block 2pin NTC 4K7
Amount of Universes 1 (512 DMX-Channels)
