Physically

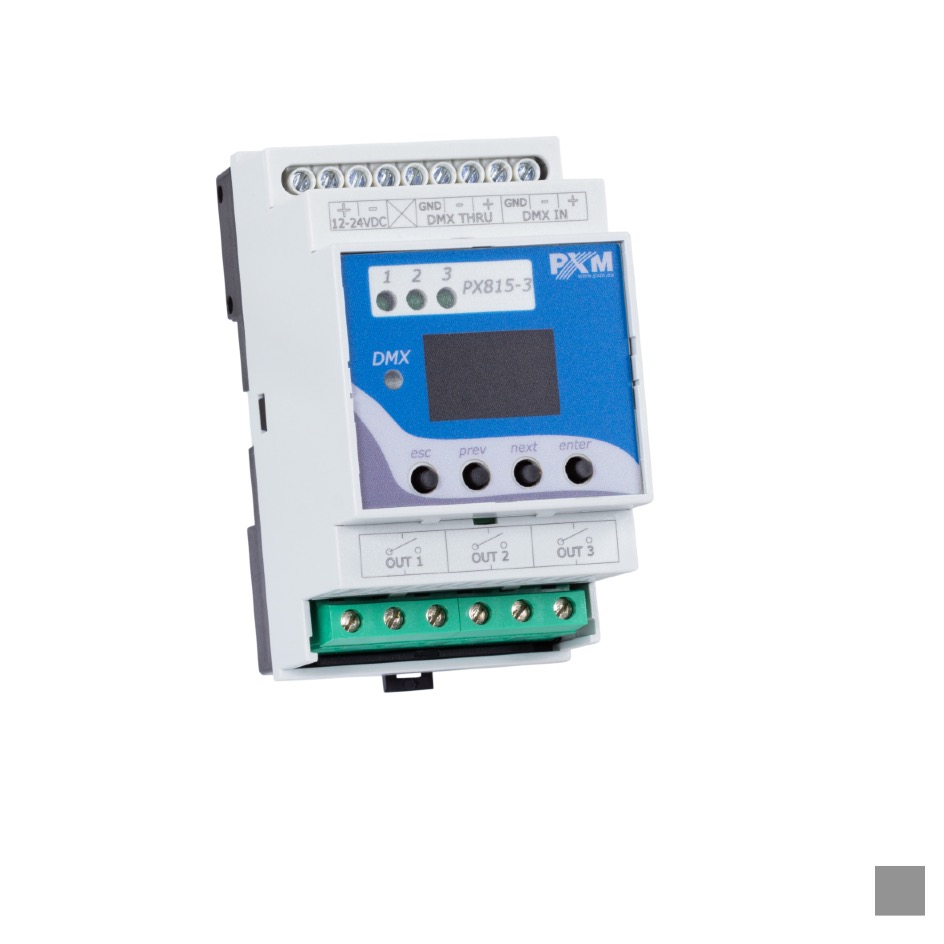

– Plastic housing for DIN rail mounting. Local programming via 4 push buttons and LCD display
– Color/Finish grey
– Dimensions | W: 52mm | H: 90mm | D: 58mm
– Weight 0,2 kg
Thermally
– Ambient temperature 2°C – 40°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 12-24VDC via external DIN-PSU
230V AC relay contacts
– Power consumption 2W
– Max. Rated Current 3x16A
Power connector input
Terminal Block 2pin
Power connector output
03 x terminal block 2-pin for relay contacts
Control
– Protocol DMX, RDM
– Protocol Output DMX, RDM
Inout
Terminal Block 3pin
Output
Terminal Block 3pin
Amount of Universes 1 (512 DMX-Channels)
