Detailed description

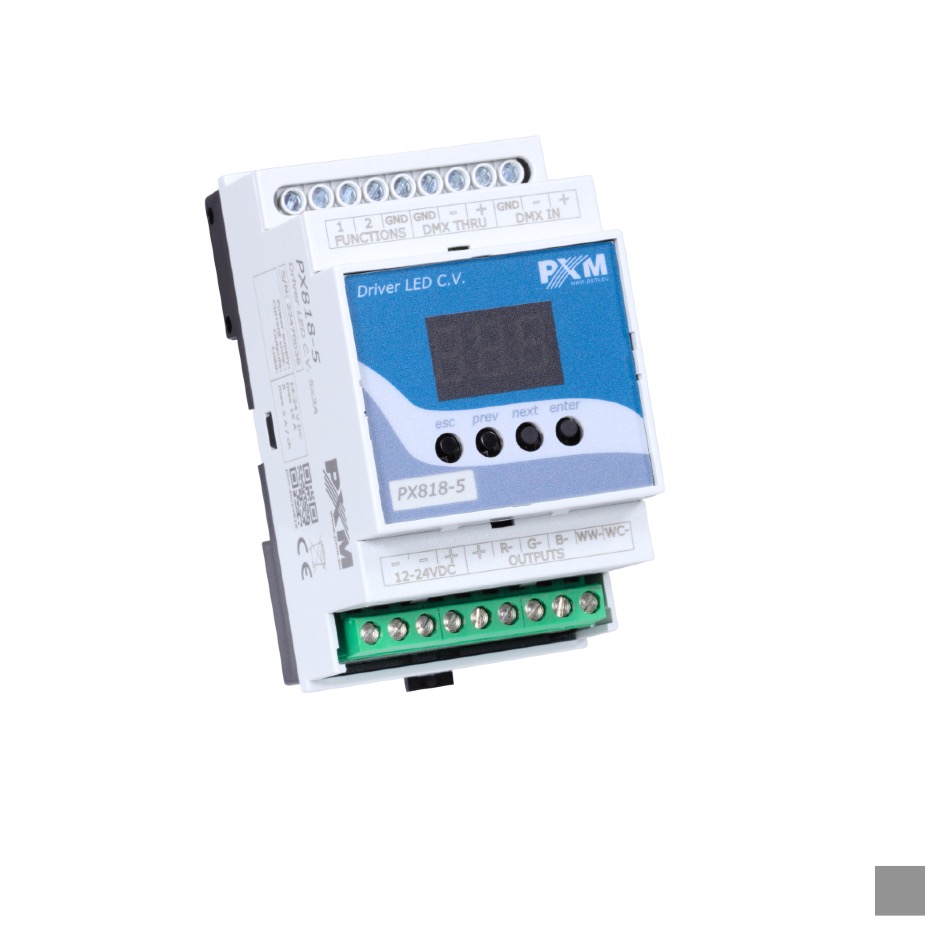

- The PX818 can be controlled by the DMX signal or it can work independently. In such operation mode, the user has access to a fully programmable scene. Thanks to the interpolated resolution of the output control at the 16 bit level, the control of the parameters of individual channels is completely smooth. Moreover, the driver offers an effect control mode which allows for controlling the programs that are built into the device and, at the same time, changing such parameters as speed, brightness and fade settings using the DMX-512 signal sent from an external controller.
Features
- FLICKER FREE” PWM control of the LEDs with variable refresh rate makes the PX818 controller ideal for TV or studio operation.
- WHITE BALANCE: Red, green and blue LEDs vary in brightness, which can lead to unclean white when all LEDs are at 100%. With the “White Balance” function, each individual LED can be calibrated to produce a clean white.
- This function can also be used to adjust the color temperature.
- Five selectable dimmer curves
Light source
– Red, green, blue + White
– Selectable PWM refresh rate of 1.5 | 3 | 6 | 12 | 24 kHz
Physically
– Plastic housing for DIN rail mounting. Local programming via 4 push buttons and LCD display
– Color/Finish grey
– Dimensions | W: 52mm | H: 90mm | D: 58mm
– Weight 0,2 kg
Thermally
– Ambient temperature 2°C – 40°C
Electrically
– electrical protection class Safety Extra Low Voltage, SELV
– Operating voltage 12-24VDC via external DIN-PSU
– Max. Rated Current 4x4A
Power connector input
Terminal Block 2pin
Power connector output
01 x 5-pin terminal block for LEDs
Control
– Protocol DMX, RDM
– Protocol Output DMX, RDM
Inout
Terminal Block 3pin
Output
Terminal Block 3pin
Amount of Universes 1 (512 DMX-Channels)
