Features

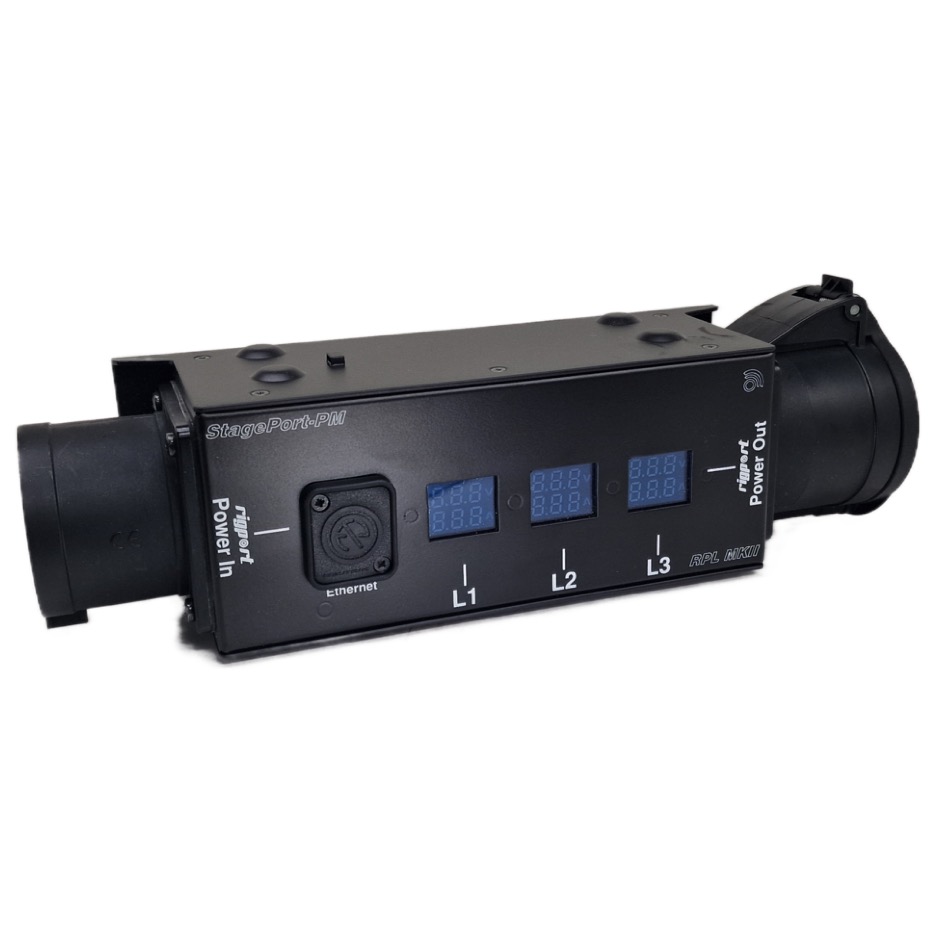

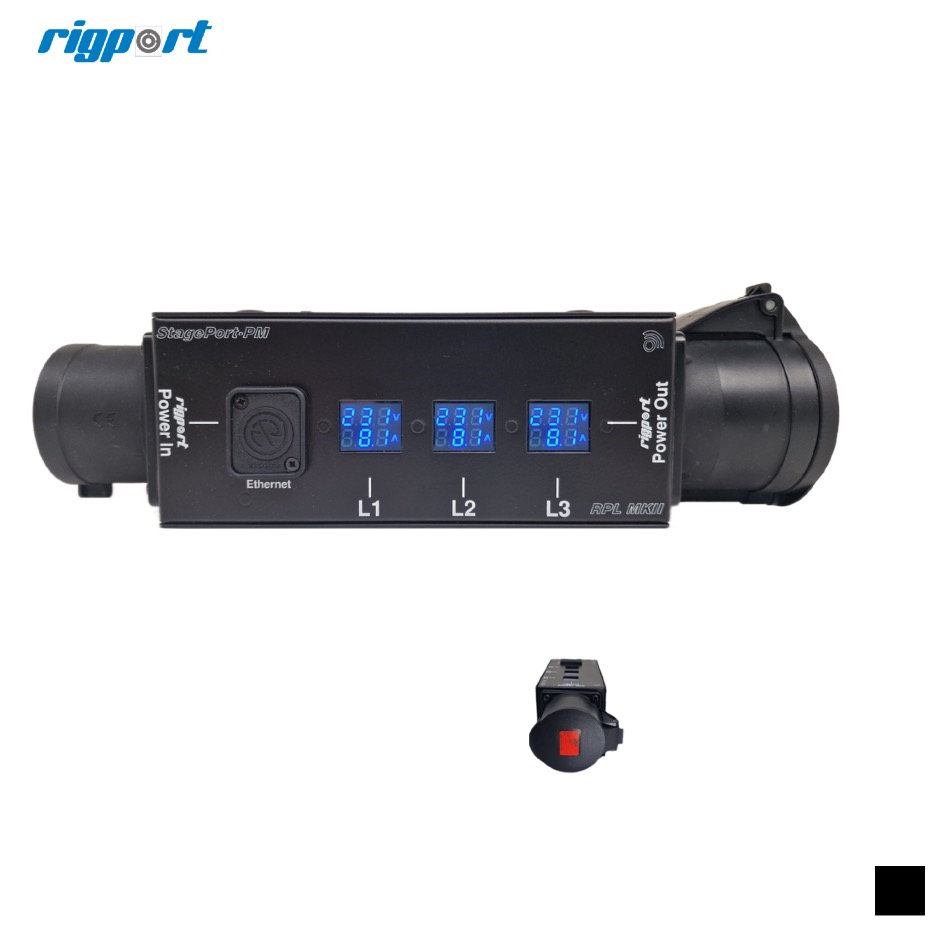

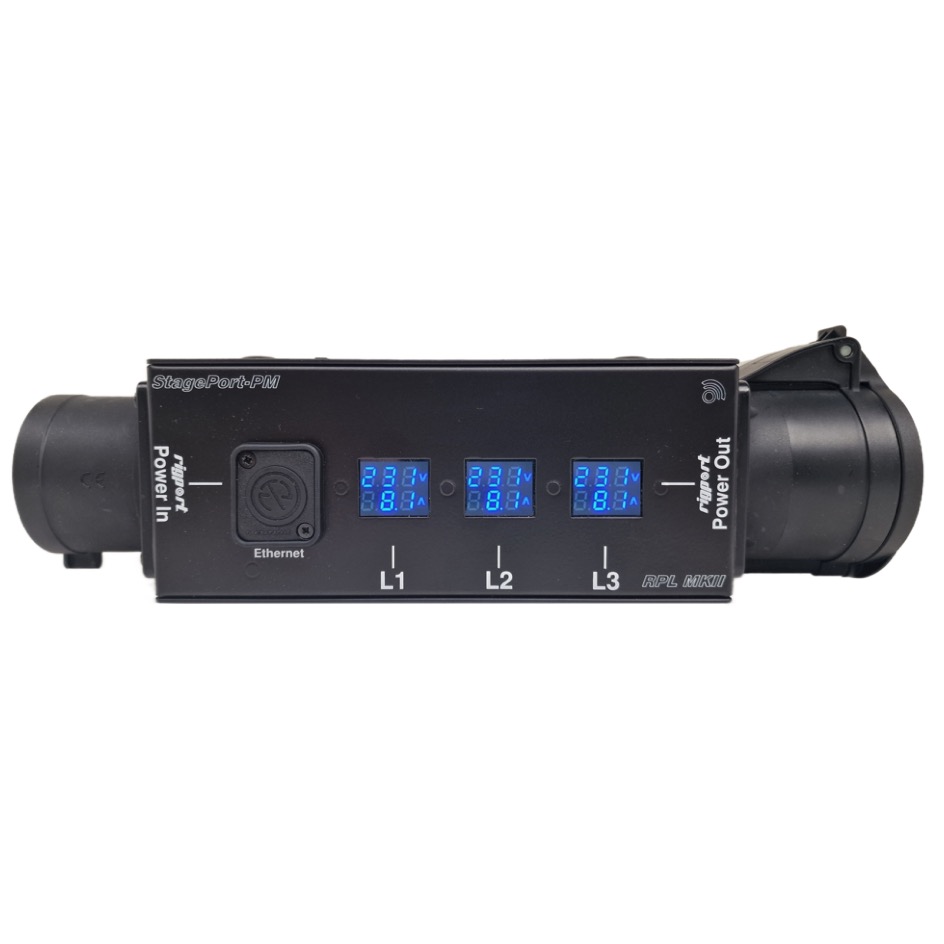

- Digital display voltmeter ammeter, blue
- Voltage measuring range: 60 V to 500 V, measuring accuracy ±1
- Current measurement: 0 to 100 A, measuring accuracy ±1
- CEE Inline
- small maintenance-free on-stage power distribution units
- Completely black for the most inconspicuous installation possible

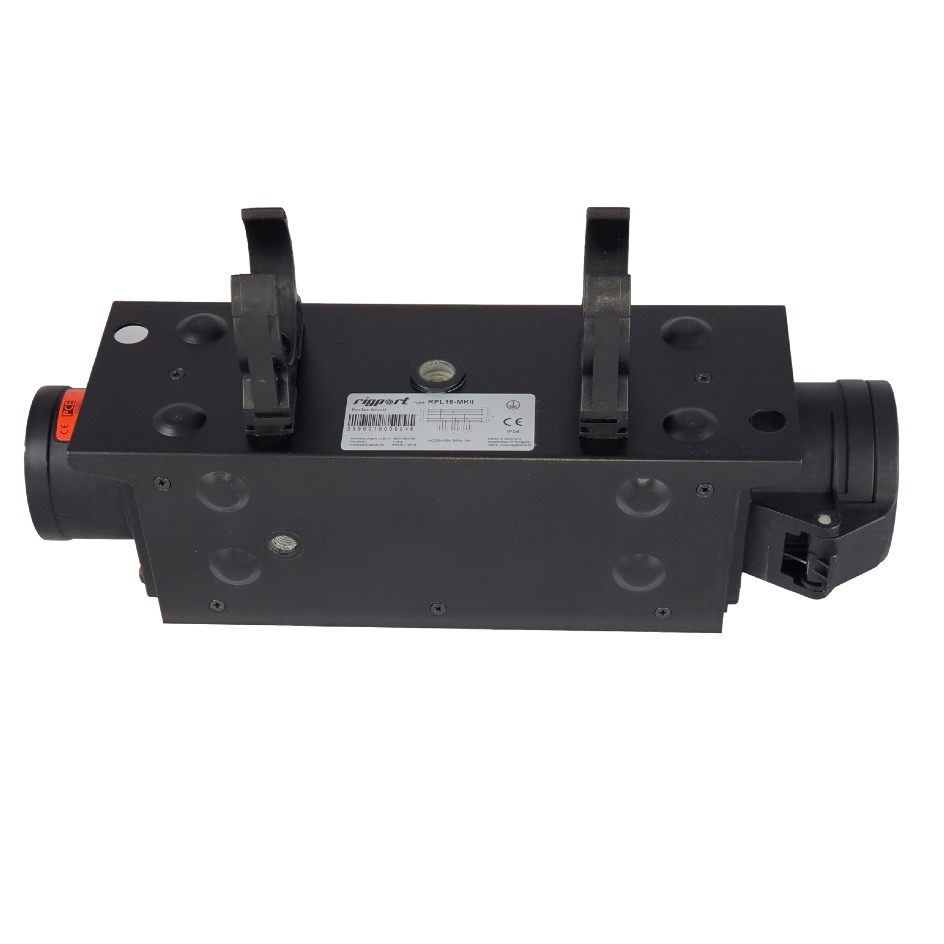

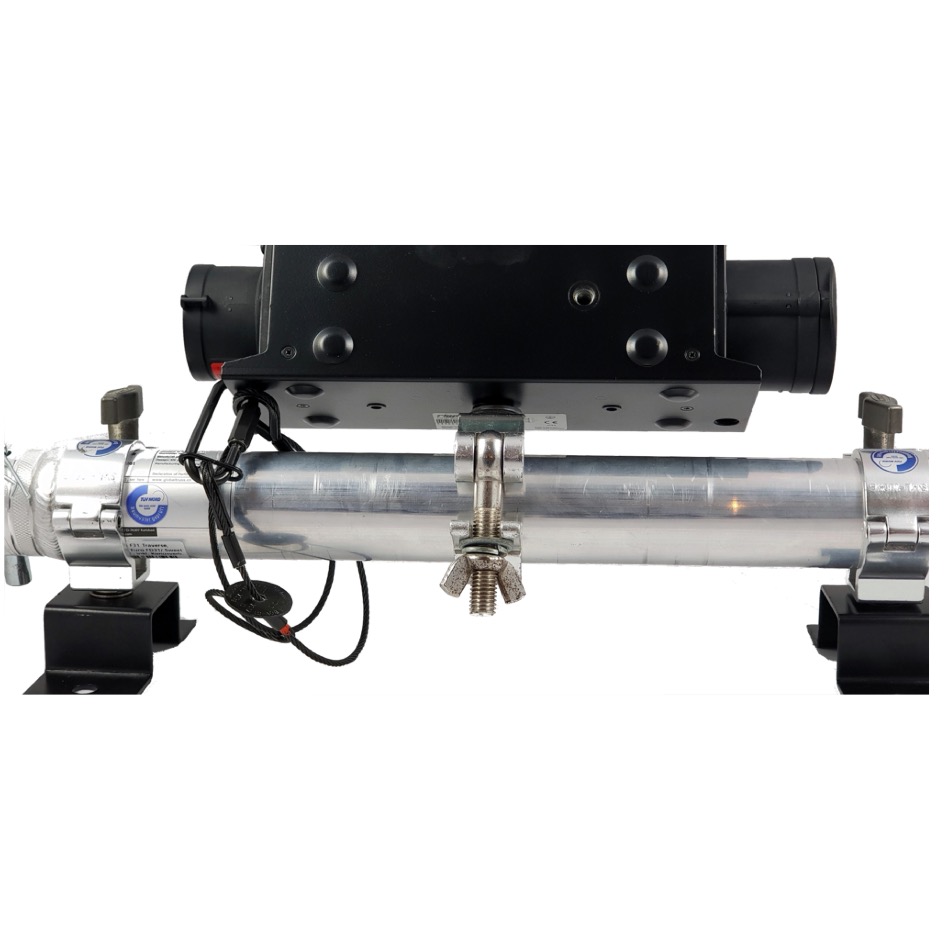

- Can be mounted in the traverse with RPL-Clamp50
- 1x M10, 2x M4
- suitable for outdoor use
Physically
– Housing Sheet steel
– IP protection IP54
– Color/Finish black
– Dimensions | L: 300mm | W: 90mm | H: 95mm
– Weight 1,5 kg
Electrically
– electrical protection class Protection Earth
– Operating voltage 400V/230V AC 50Hz
– Max. Rated Current 3 x 16A

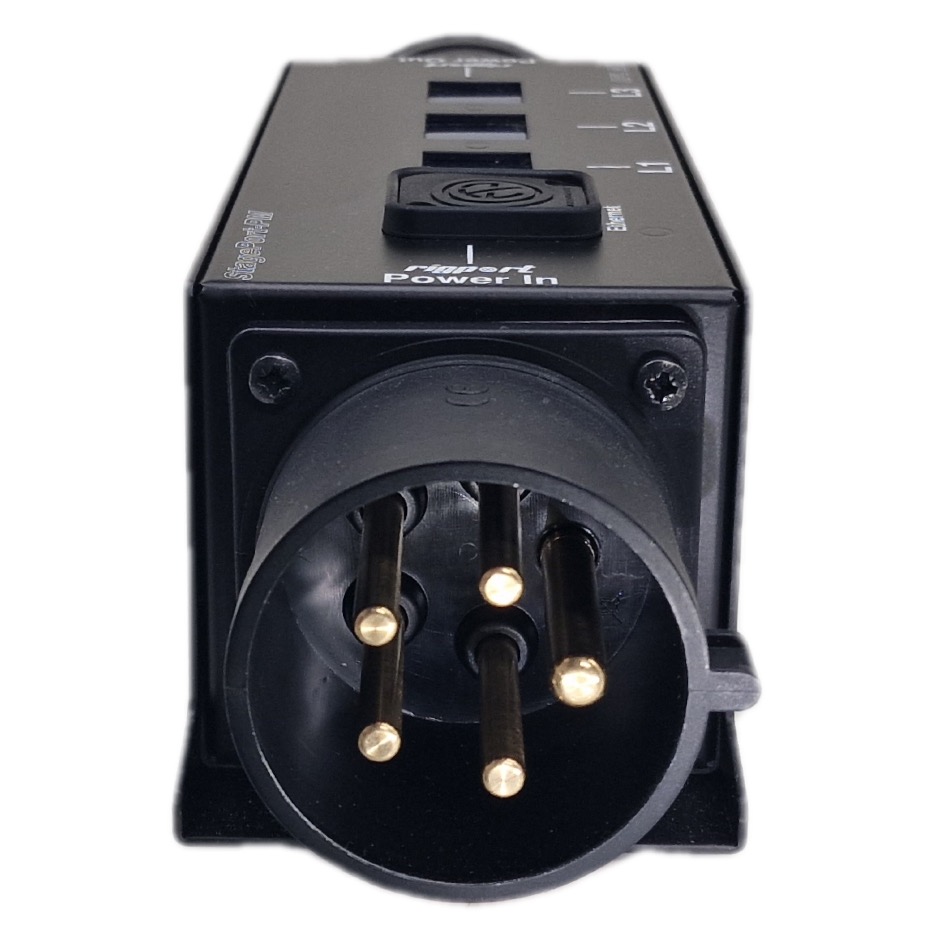

Power connector input
01 x Chassis plug PCE CEE16-5 black

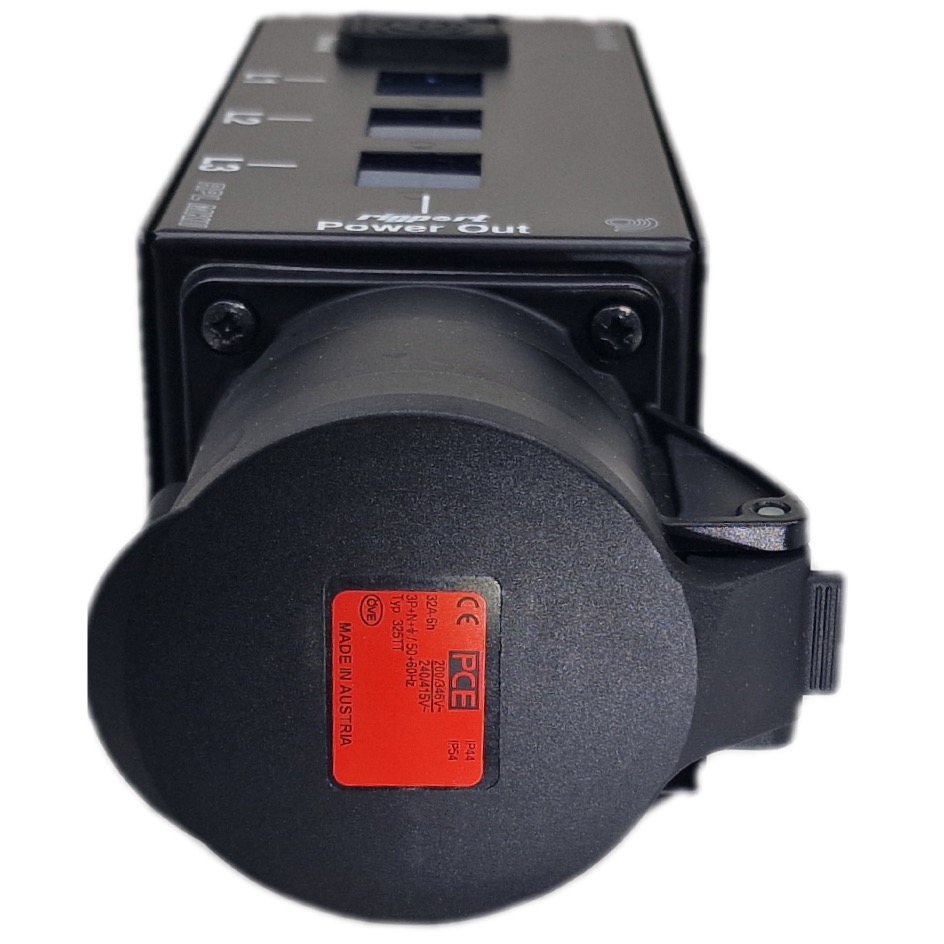

Power connector output
01 x PCE CEE16-5 black
