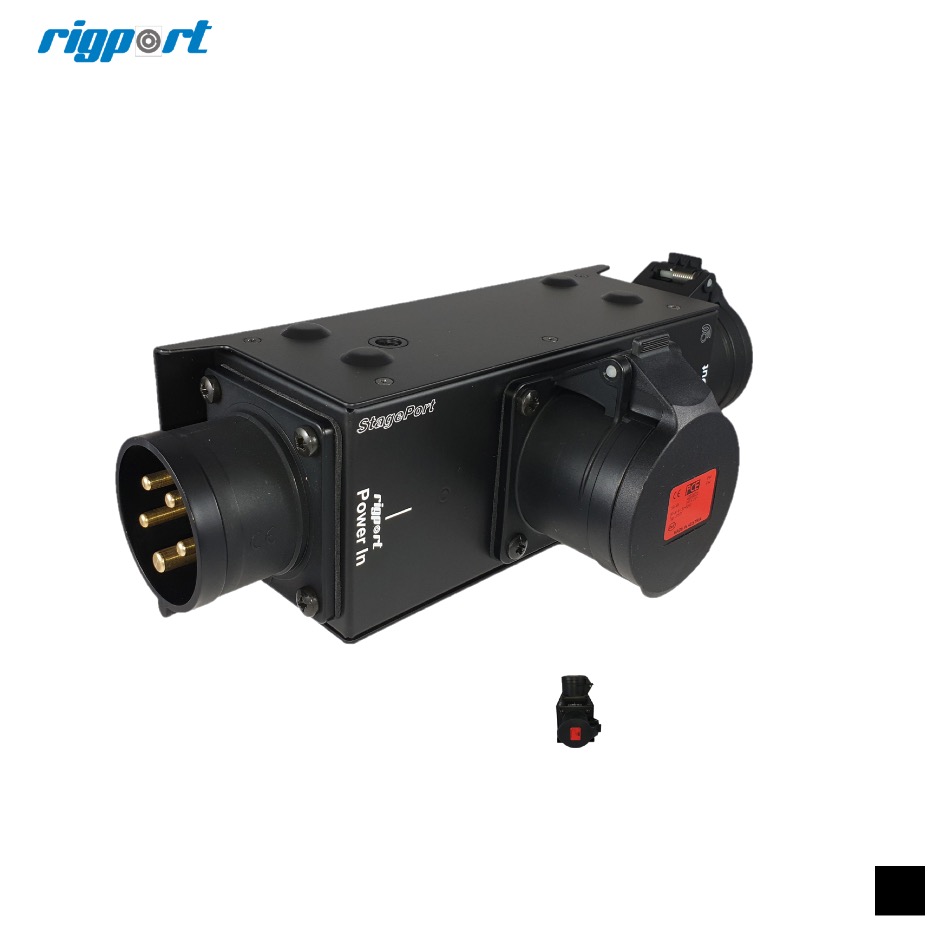

Rigport RPL32CEE-MKII CEE32-5 distributor, black

Description

Downloads

Manufacturers Page

Features

• CEE Inline
• small maintenance-free on-stage power distribution units
• completely black for the most inconspicuous installation possible
• can be mounted in the crossbar with RPL-Clamp50
• M10 screw mount for attaching couplers, trigger clamps, etc.
• 2x M4 mount
• suitable for outdoor use

Physically

– Housing Sheet Steel
– IP protection IP54
– Color/Finish black
– Dimensions | L: 321mm | W: 150mm | H: 100mm
– Weight 1,7 kg

Electrically

– electrical protection class Protection Earth
– Operating voltage 400V/230V AC 50Hz
– Max. Rated Current 3 x 32A

Power connector input
01 x Chassis plug PCE CEE32-5 black

Power connector output
01 x PCE CEE32-5 black (loop)
01 x PCE CEE32-5 black (side)
