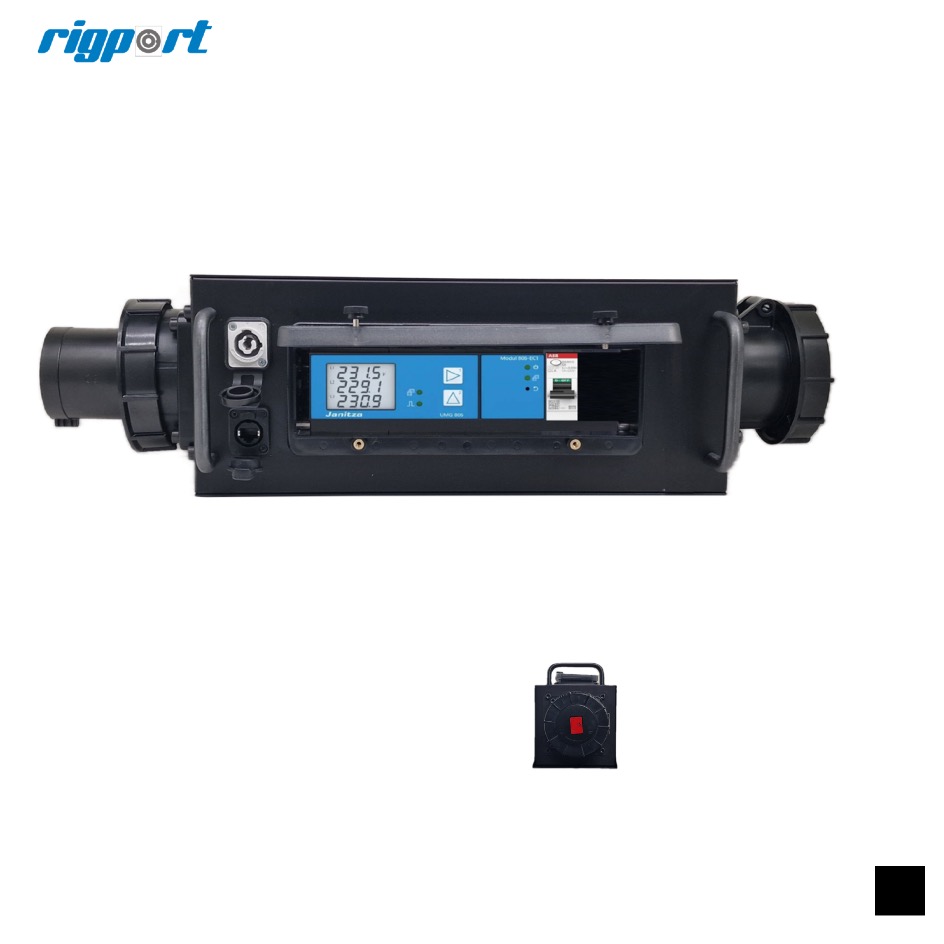

Janitza UMG 806
Manufacturers Page
Features
- Measurement of all 3x phase conductors and neutral conductor
- WatchDog function for limit values
- Power measurement on each channel
- Web server for monitoring and configuration
- Ethernet, Wi-Fi, MQTT, Bluetooth…
- Power measurement with data storage
- Intelligent schedules, scripting, webhooks
- Internet connection
- PowerCON service socket via RCBO
- 3x digital display voltmeter ammeter, for each phase
- Voltage measuring range: 60 V to 500 V, measuring accuracy ±1
- Current measurement: 0 to 150 A, measuring accuracy ±1
- 2x M10, safety eyelets
- Janitza UMG806
- Optional switching output
- Optional Janitza UMG806
Physically
– Housing Sheet steel
– IP protection IP54
– Color/Finish black
– Dimensions | L: 361mm | W: 120mm | H: 120mm
– Weight 7,6 kg
Electrically
– electrical protection class Protection Earth
– Operating voltage 400V/230V AC 50Hz
– Max. Rated Current 3 x 63A
Power connector input
01 x Chassis plug PCE CEE63-5 black
Power connector output
01 x PCE CEE63-5 black
01 x powerCON grey (optional TRUE 1) via RCBO
Circuit breaker
01 x RCBO 16A C 30mA 1P+N (powerCON)
Network
Input
01 x etherCON
