Description
Technical data at a glance

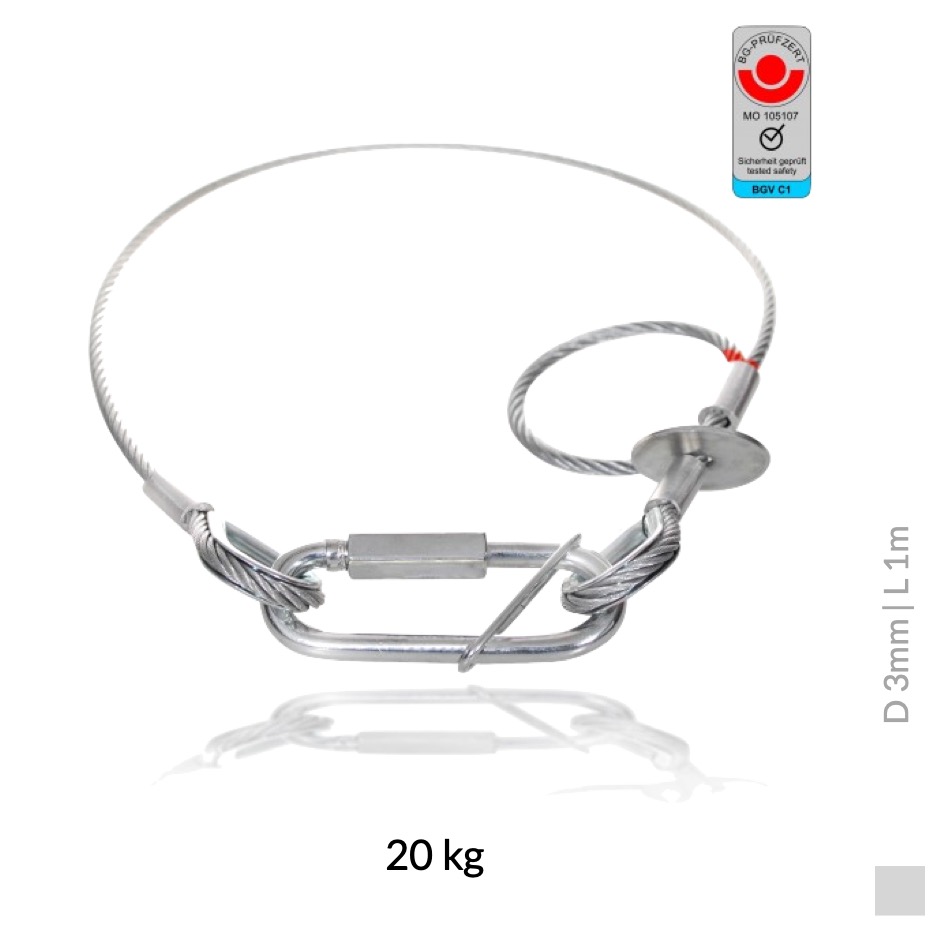

to DIN EN 12385-4 with damping element to BGV-C1 and thimble on one side. Other side with captive thimble chain quick-release fastener 5mm. In accordance with DIN 56927 B140. With badge: Saveking 3mm CE | WLL: 20kg | Rope Diameter 3mm | Lenght 1m | by standard: BGV-C1 | 0,08kg
Downloads
User Manual
Declaration of Conformity (DoC)
DGUV Information 215-313
Manufacturers Page
Detailed description
- The Saveking®, the invention of the safety rope with damping element, was developed by Ingo Witthuhn in 2010. The Saveking® is characterized by a considerable advantage over conventional safety ropes without a damping element. The Saveking® safety rope achieves a controlled reduction of a load impulse of an incident load with the help of the built-in damping element. This means that comparatively smaller rope diameters can be used with the same equipment weights. In addition, the color marking makes it possible to quickly and reliably identify whether a load has been applied to the respective safety rope.
The Saveking® is crimped at both ends with a DIN 6899 thimble to protect the wire rope at the load attachment point. In addition, the wire rope is captively connected at both ends with a DIN 56927 Form B quick connect link.
BGV C1 guidelines: Saveking® safety ropes manufactured by Drahtseile24 are officially approved as safety ropes in the event sector for loads above persons in accordance with BGV C1. You can find the necessary information in the current DGUV Information 215-313 (previously 810-3) on page 25 | 2.3.2. Please note that the safety rope must be attached without a possible fall path; if this is not possible, the maximum fall height of the secured work equipment must not exceed 20 cm.
Physically
– Nominal capacity WLL 20 kg
– Rope Diameter 3mm
– Lenght 1m
– by Standard BGV-C1
– Color/Finish galvanized
– Weight 0,08 kg
