Accessories supplied with the unit
WA371 WA371 Microphone Clamp for Shure Handheld Transmitters 35mm
1 C825 7.5-meter Ethernet cable, RJ45/EtherCon connectors, 1 31A1856 3/8-inch to 5/8-inch thread adapter for WA371
Detailed description

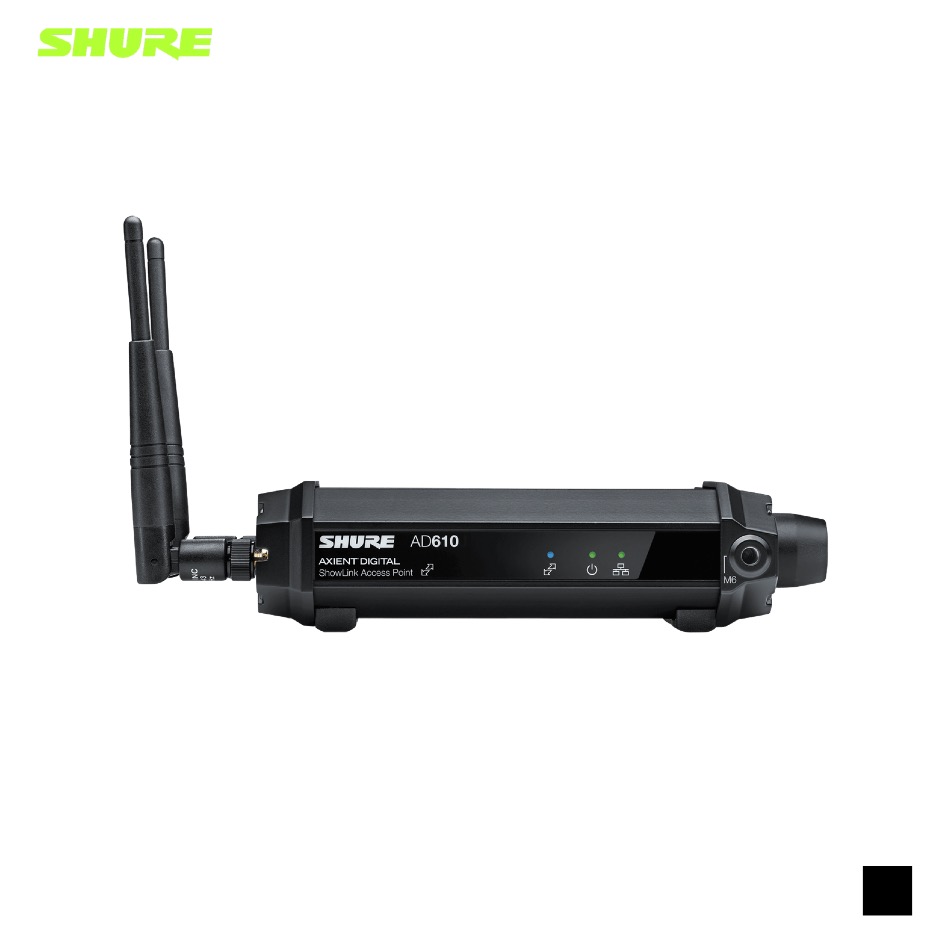

- The AD610 ShowLink® Access Point enables real-time control of all ShowLink-enabled Axient™ transmitters, including both digital and analog models. The Access Point allows all transmitter parameters to be controlled via the receiver or Wireless Workbench® 6 through an additional digital connection in the 2.4 GHz band. All parameter changes made to Axient Digital transmitters are applied seamlessly and without interruption.
Multiple Access Points can extend the range or increase the number of transmitters supported by the ShowLink network. The Access Point and all Axient Digital transmitters (ADX) operate using True Diversity technology. In addition to mounting via a microphone clip (WA371), ¼”-20 and M6 threads are available.
Features
- Wireless network connection between all connected transmitters and the access point
- Enables real-time control of up to 24 transmitters per access point
- ShowLink allows for gain adjustments, frequency changes, RF mute, and much more
- True Diversity technology provides a stable connection in the 2.4 GHz frequency range
- Automatic channel selection scans the 2.4 GHz range to find the best channel. Scans can be saved in Wireless Workbench for future analysis.
- In the event of interference on the selected transmit frequencies, ShowLink automatically switches to available frequencies or channels
- Compatible with the Axient Digital (ADX transmitters) and Axient Analog (AXT transmitters) systems
- Using the Wireless Workbench software, transmit power can be increased as needed (country-specific) to extend the range
Physically
– Color/Finish black
– Dimensions | L: 409mm | W: 281mm | H: 109mm
– Weight 1,76 kg
